Removing glove compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

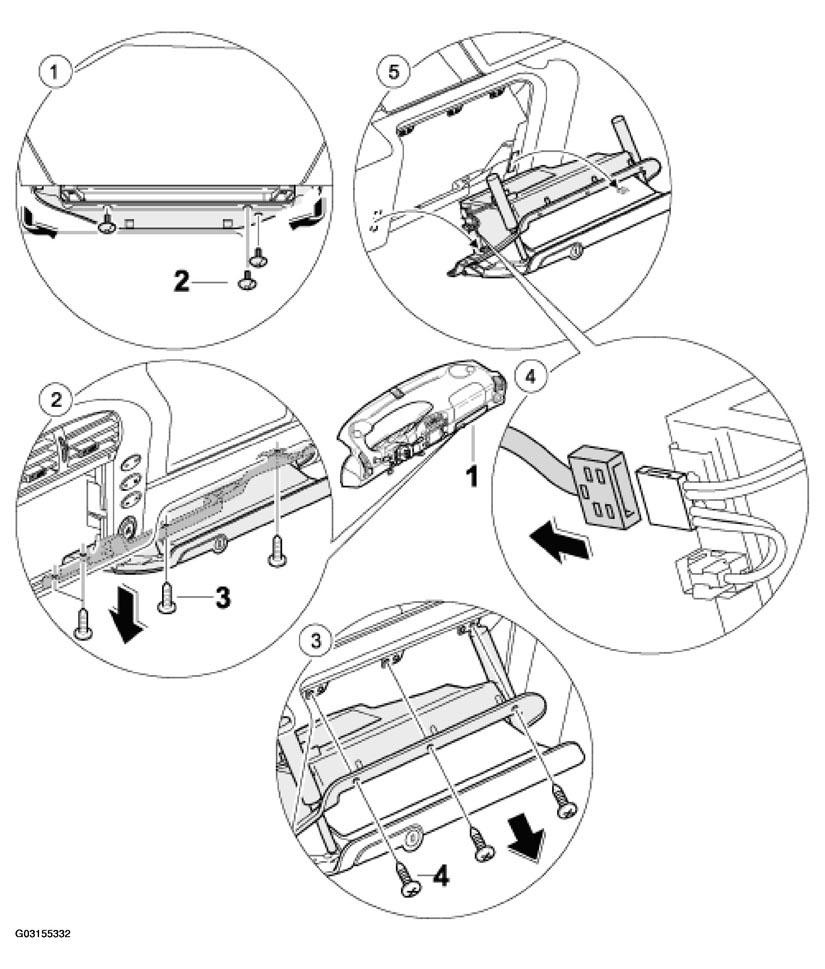

Fig 1: Removing Glove Compartment Components
G03155332Courtesy of PORSCHE OF NORTH AMERICA, INC.
REMOVING GLOVE COMPARTMENT INSTRUCTIONS

No. Procedure Instructions
1 Unclipping plastic clips Unclip plastic clips -2--arrows-  . See Fig 1 .
2 Unscrewing the rear fastening screws Unscrew fastening screws -3-  . See Fig 1 .
3 Unscrewing the front fastening screws Unscrew fastening screws -4-  . See Fig 1 .
4 Disconnecting the electrical plug connection Disconnect the electrical plug connection in the -direction of the arrow-  . See Fig 1 .
5 Removing the glove compartment Lift the glove compartment upwards -arrow--1-  . See Fig 1 .
