Installing glove compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

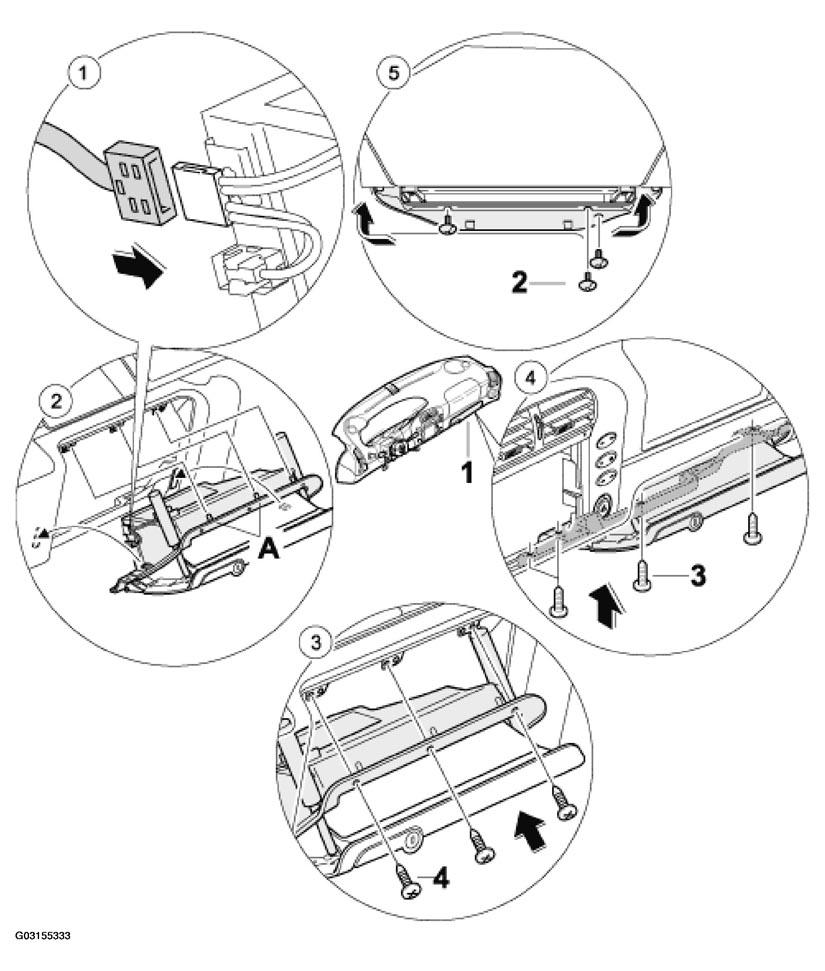

Fig 1: Installing Glove Compartment Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING GLOVE COMPARTMENT INSTRUCTIONS

No.	Procedure	Instructions
1	Connect electrical plug connection	Connect the electrical plug connection in the -direction of the arrow- . See Fig 1 .
2	Installing glove compartment	Swivel the glove compartment into the dashboard in the -direction of the arrow--A- . See Fig 1 .
3	Screwing in the front fastening screws	Screw in the fastening screws -4- . See Fig 1 .
4	Screwing in the rear fastening screws	Screw in the fastening screws -3- . See Fig 1 .
5	Fitting the plastic clips	Position the insulation, making sure that the corners are inserted correctly under the dashboard. Press in plastic clips -2- . See Fig 1 .
