Assembling convertible-top frame

Removal tool for removing and fitting retaining clips

-19-. See MATERIALS AND TOOLS  .

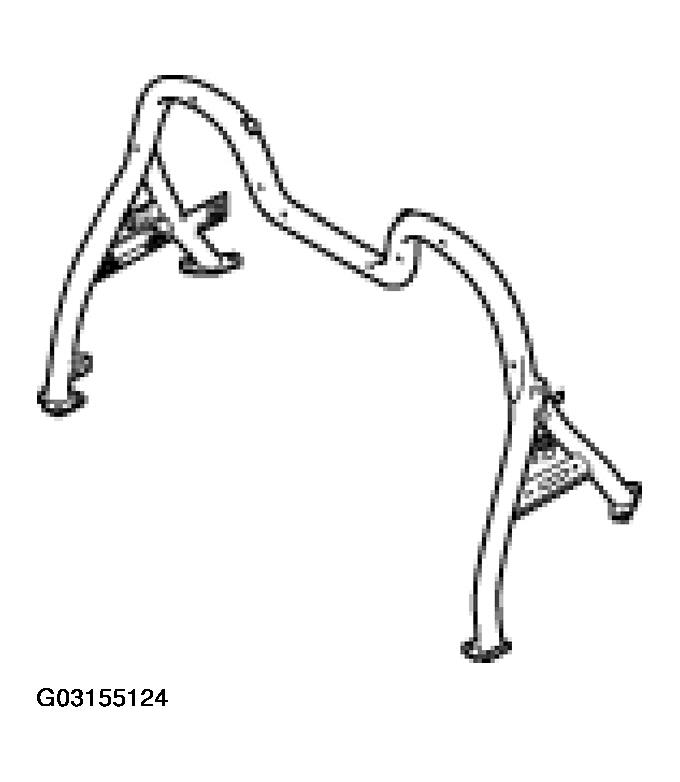

1. Placing the roll-over bar on assembly fixture

   Place the roll-over bar outside the vehicle on a workbench or assembly fixture and secure.

   Fig 1: Placing Roll-Over Bar On Assembly Fixture

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

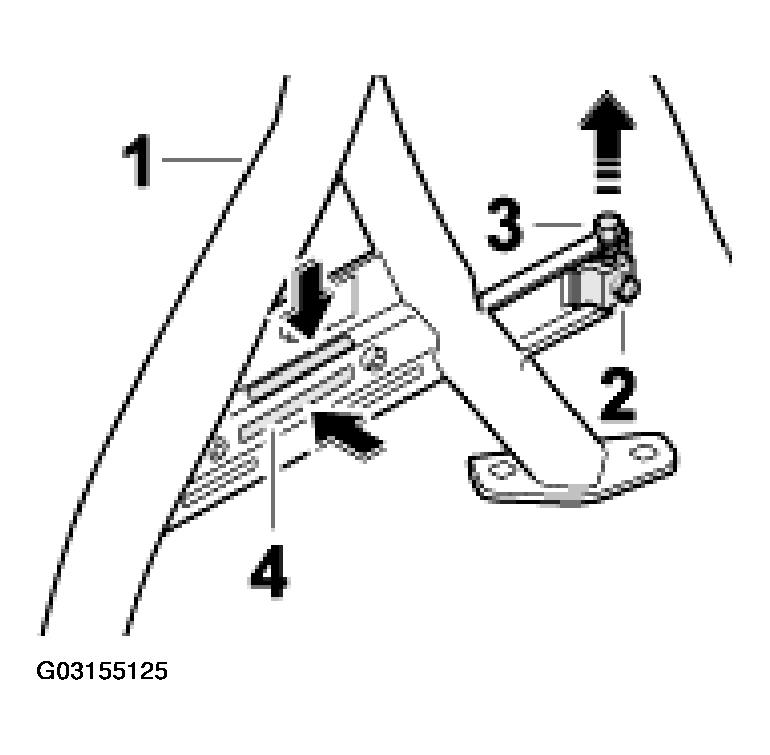

2. Fitting the adjusting piece and strips of adhesive tape
   1. Insert the adjusting piece -2-  , which is used to brace the tension bow, into the guides of the roll-over bar -1-  and fasten the adjusting piece -2-  with the fastening screw -3-  . See Fig 2 .
   2. Affix two strips of double-sided adhesive tape -4-  in the area of the convertible-top support fastening point. See MATERIALS AND TOOLS  .
   Fig 2: Fitting Adjusting Piece And Strips Of Adhesive Tape

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

   The strips of tape are used to fasten the water collection tray.

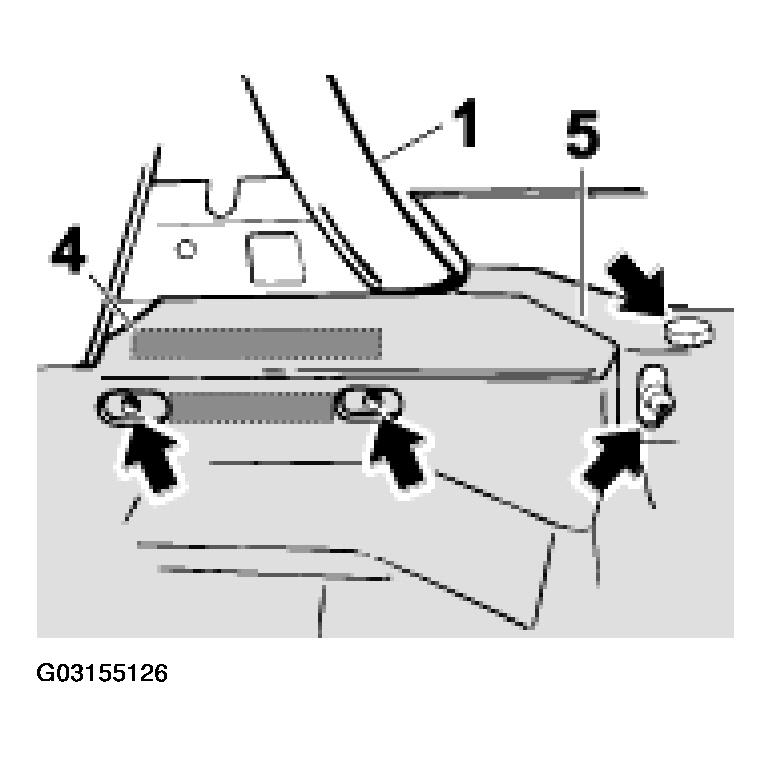

3. Installing water collection tray

   Position the hole pattern of the water collection tray -5-  on the hole pattern -Arrows-  of the roll-over bar -1-  and press the tray onto the two strips of double-sided adhesive tape -4-  .

   Fig 3: Installing Water Collection Tray

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
4. Installing convertible-top support

   Position the convertible-top support -6-  on the roll-over bar and fasten it with the fastening screws -7-  . Make sure that when tightening, the convertible-top support is pressed in the direction of arrows -A and B-  .

   Fig 4: Installing Convertible Top Support

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

   See Tightening torques  .

5. Install seat belt.

   Position the belt reel at the bottom -8-  and the deflector at the top -9-  on the roll-over bar -1-  and fasten with the fastening screws -10, 11-.  . See Tightening torques  .

   Fig 5: Installing Seat Belt

   Courtesy of PORSCHE OF NORTH AMERICA, INC.
6. Fitting stop buffer on the roll-over bar

   Position bracket (stop) -12-  on the roll-over bar -1-  and tighten with the fastening screws -13-.  . See Tightening torques  .

   Fig 6: Fitting Stop Buffer On Roll-Over Bar

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

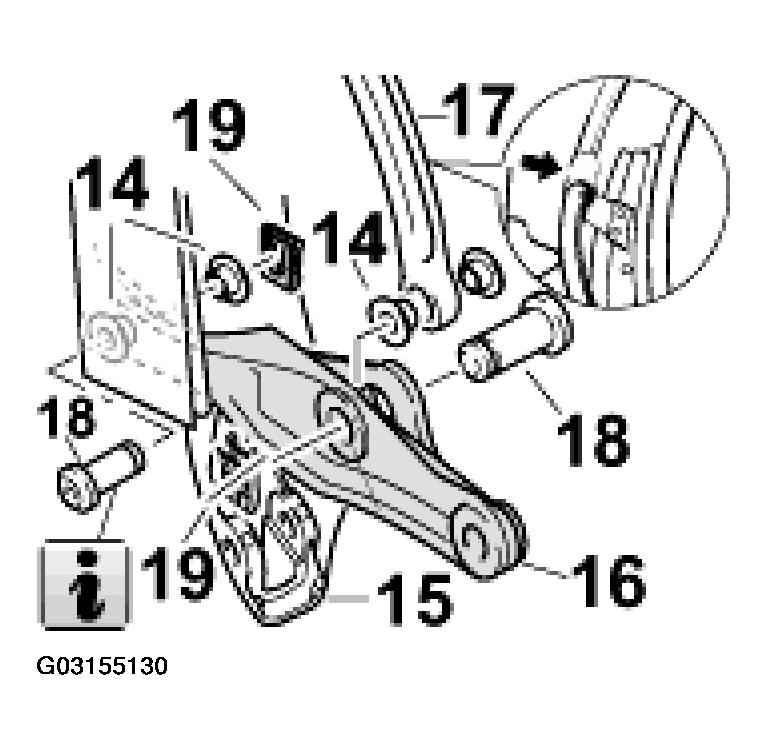

7. Joining drive lever to the B-pillar and push bar
   NOTE:

   • When inserting the push bar -Arrow-  of the roof frame into the roof frame, make sure that it is routed through the rubber strap of the B-pillar! See Fig 7 .
   • Use assembly grease when fitting the pins!
   1. Press in Teflon bushings -14-  in the bore of the drive lever on both sides. See Fig 7 .
   2. Position the drive lever -16-  on the B-pillar -15-  and join it with the pin, -18-  8 x 45. See Fig 7 .
   3. Position the push bar -17-  on the drive lever -16-  and join it with the pin, -18-  8 x 45. See Fig 7 .
   4. Press the retaining clips -19-  into the pins -18-8  . See Fig 7 .
Fig 7: Joining Drive Lever To B-Pillar And Push Bar
Courtesy of PORSCHE OF NORTH AMERICA, INC.

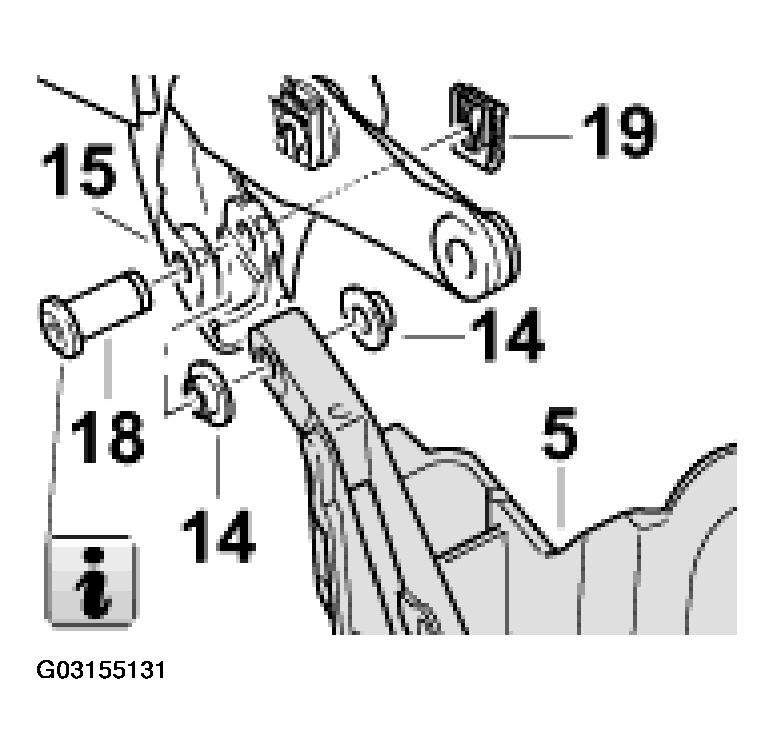

8. Joining convertible-top support to the B-pillar
   NOTE:

   • Use assembly grease when fitting the pins!
   1. Press in Teflon bushings -14-  in the bore of the drive lever on both sides. See Fig 8 .
   2. Position the B-pillar -15-  on the convertible-top support -5-  and join it with the pin -18-  8 x 45. See Fig 8 .
   3. Press the retaining clips -19-  into the pins -18-9  . See Fig 8 .
   Fig 8: Joining Convertible Top Support To B-Pillar

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

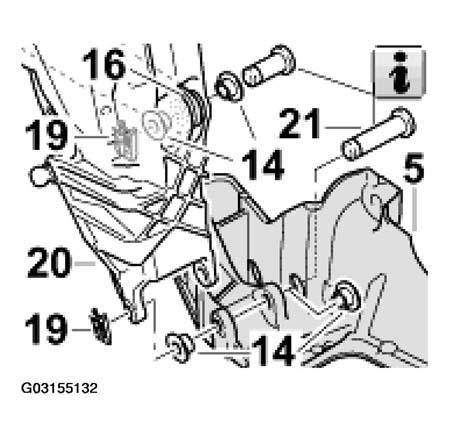

9. Installing main bow
   NOTE: Use assembly grease when fitting the pins!
   1. Press in Teflon bushings -14-  in the bore of the convertible-top support and drive lever on both sides. See Fig 9 .
   2. Position the main bow -20-  on the convertible-top support -5-  and drive lever -16-  . Then join with the pins, -21-  8 x 70 and -18-  8 x 45. Insert pins in -direction of arrow-  . See Fig 9 .
   3. Press the retaining clips -19-  into the pins -18, 21,  . See Fig 9 .
Fig 9: Installing Main Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.

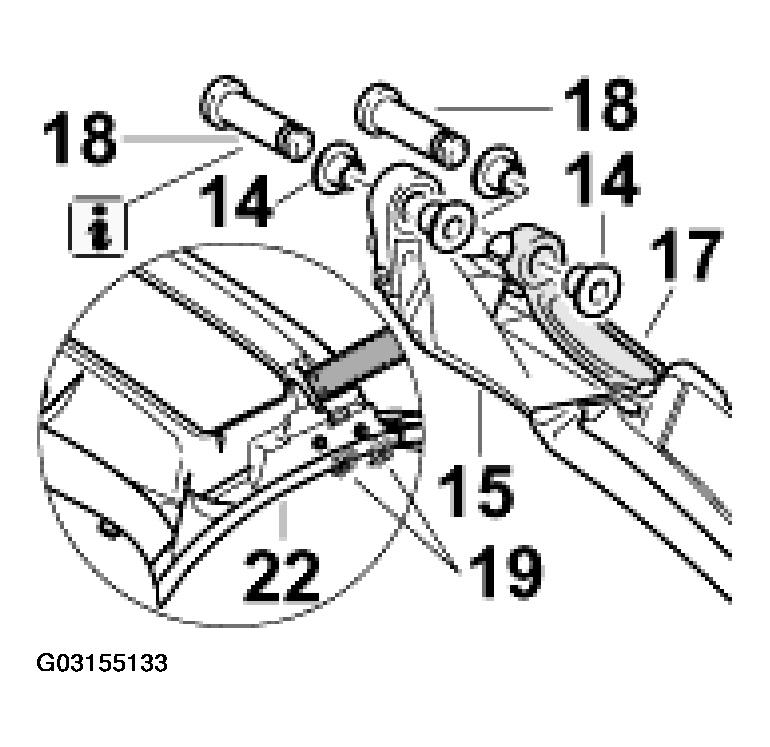

10. Fitting the roof frame on the B-pillar
    NOTE: Use assembly grease when fitting the pins -18-  ! See Fig 10 .
    1. Press in Teflon bushings -14-  in the bore of the B-pillar and push bar on both sides. See Fig 10 .
    2. Fit the pre-assembled B-pillar -15-  in the roof frame -22-  and connect with the pins 8 x 45 -18-  . See Fig 10 .
    3. Secure the pin -18-  with a clip -19-  . See Fig 10 .
    Fig 10: Fitting Roof Frame On B-Pillar

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
11. Fitting convertible-top lock
    1. Position convertible-top lock -23-  in roof frame -22-  and fasten with the fastening screws -24-  . See Tightening torques  .
    Fig 11: Fitting Convertible Top Lock

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
12. Fitting centring pins
    1. Position centring pins -25-  on the roof frame -22-  on the left and right and fasten with the fastening screws -26-  . See Tightening torques  .
    2. Affix cover cap -27-  onto the centring pins -25-  with Loctite 270.
    Fig 12: Fitting Centring Pins

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
13. Fitting the cover on the roof frame

    Insert the cover -28-  on the roof frame -22-  and tighten the fastening screws -29-.  . See Tightening torques  .

    Fig 13: Fitting Cover On Roof Frame

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

    The cover is spring-supported and covers the screw and pivot points on the roof frame.

14. Fitting stop on the corner bow

    Position stop -30-  on the corner bow and screw down using the fastening screws -31-  . See Tightening torques  .

    Fig 14: Fitting Stop On Corner Bow

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

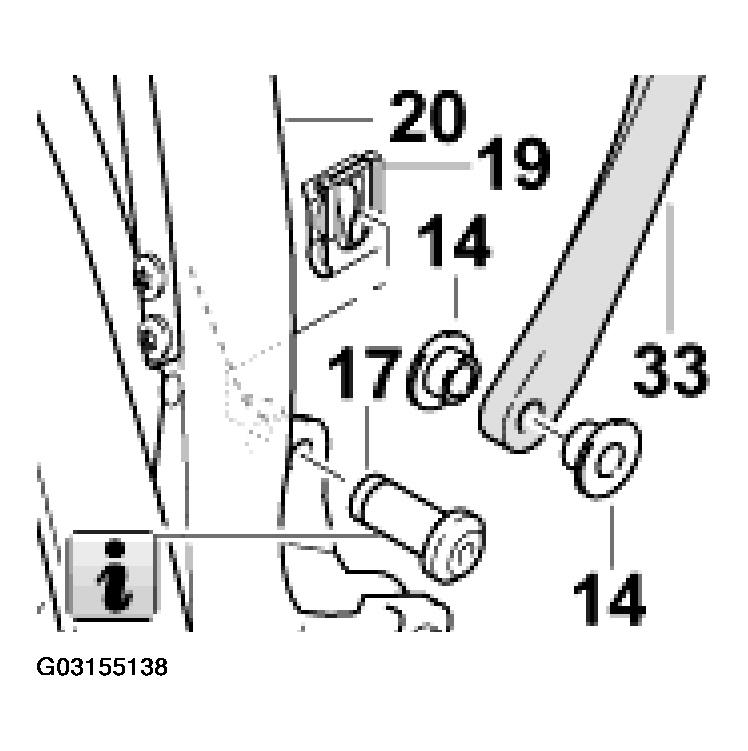

15. Installing corner bow
    1. Press in Teflon bushings -14-  in the bore of the corner bow on both sides. See Fig 15 .
    2. Position corner bow -33-  on the main bow -20-  and join with the pins -18-  . See Fig 15 .
    3. Press the retaining clips -19-  into the pins -18-  . See Fig 15 .
    Fig 15: Installing Corner Bow

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

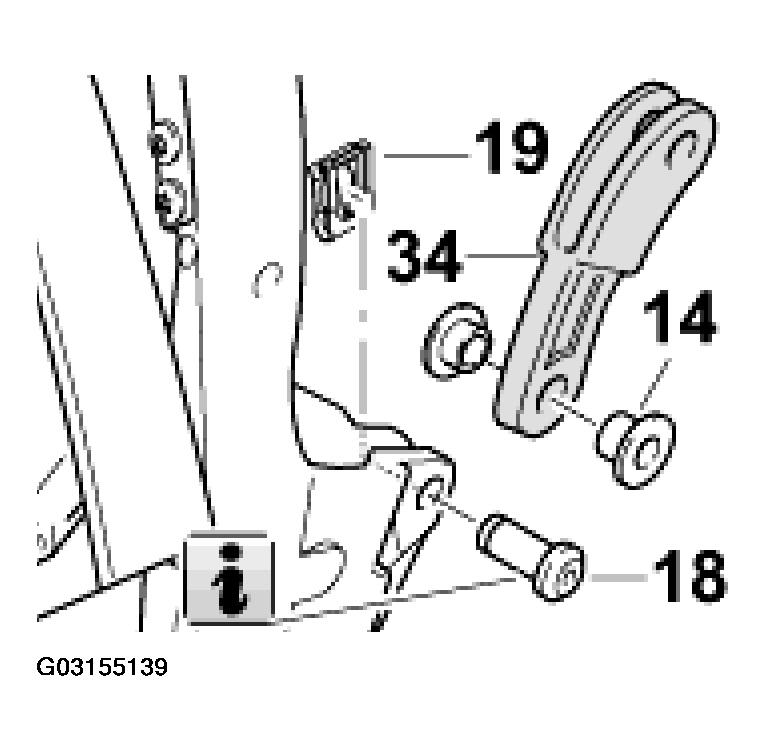

16. Fitting the connection-piece with joint on the tension bow:
    1. Press in Teflon bushings -14-  in the bore of 11 the joint on both sides. See Fig 16 .
    2. Position joint -34-  on the main bow and join with the pins -18-  . See Fig 16 .
    3. Secure the pin -18-  with a clip -19-  . See Fig 16 .
Fig 16: Fitting Connection Piece With Joint On Tension Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
17. Fitting connection-piece
    NOTE:

    • Before removal, mark the longitudinal adjustment from the connection-piece to the tension bow on the connection piece using a scriber.

    Insert the connection-piece -35-  into the tension bow -36  and fasten with the fastening screws -37-. See Tightening torques  .

    Fig 17: Fitting Connection Piece

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

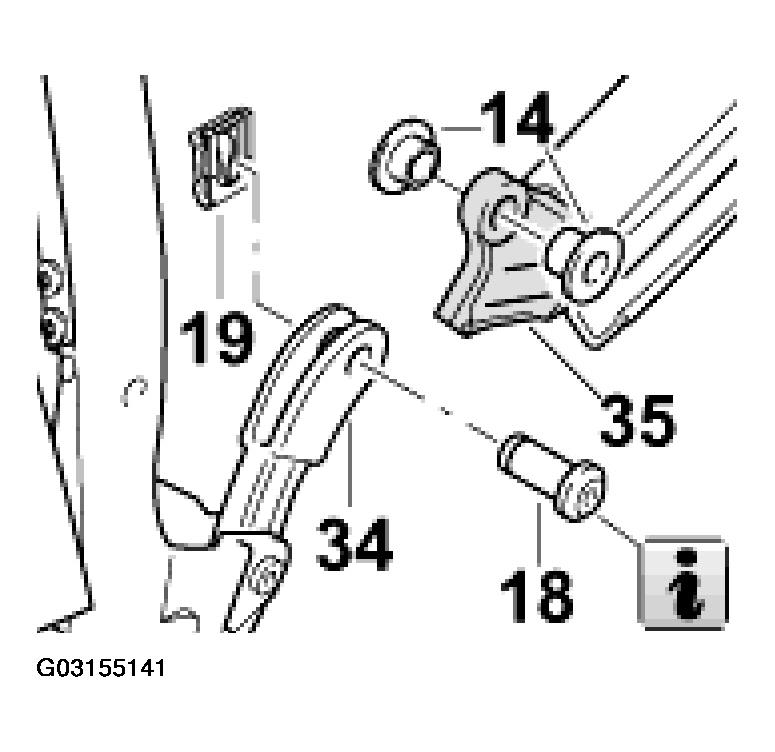

18. Installing tension bow
    NOTE:

    • Use assembly grease when fitting the pins!
    1. Position the tension bow with the connection-piece -35-  on the link -34-  and join with the pin 8x25-18-  .
    2. Press the retaining clips -19-  into the pins -18-  .
    Fig 18: Installing Tension Bow

    Courtesy of PORSCHE OF NORTH AMERICA, INC.

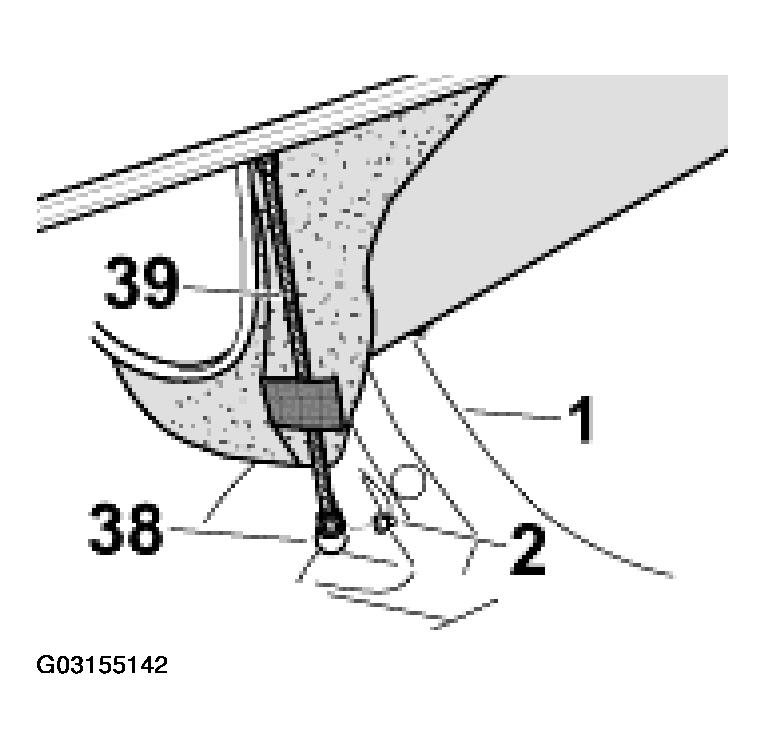

19. Installing the tension cable

    Press the ball socket -38-  of the tension cable -39-  into the ball head of the adjusting piece -2-  on the roll-over bar -1-  .

    Fig 19: Installing Tension Cable

    Courtesy of PORSCHE OF NORTH AMERICA, INC.
20. Installing tension strap

    See INSTALLING TENSION STRAP  .

21. Measuring roll-over bar with convertible-top frame in the vehicle.

See TEST AND ADJUSTING VALUES  .
