Installing tension strap

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

Installing tension strap on the main bow
Position the strap cover -37- using the holes provided on the tension strap -36- and press into the main bow -26- .

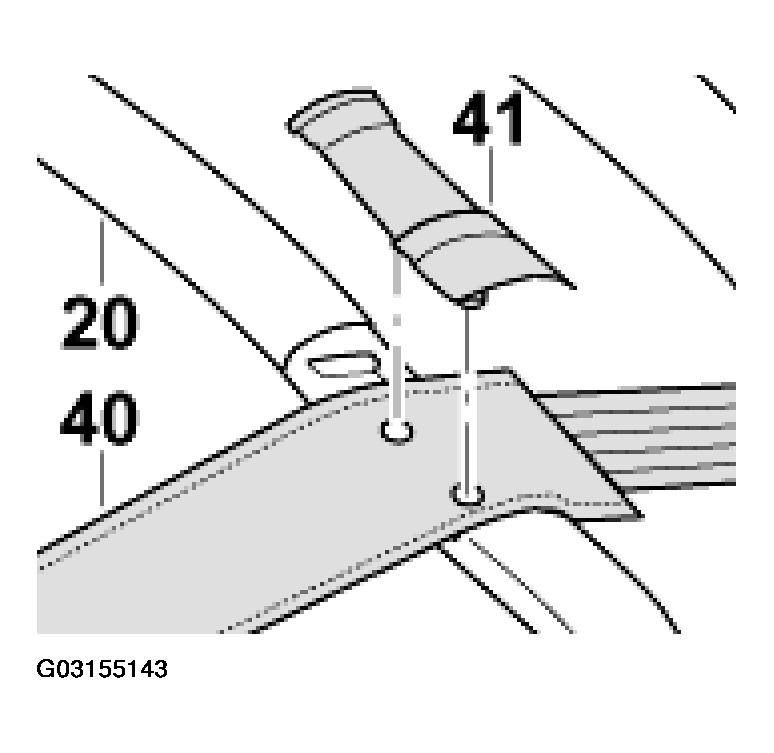

Fig 1: Installing Tension Strap On Main Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing tension strap on the corner bow
Position the strap cover -42- using the holes provided on the tension strap -40- and press into the corner bow -33- .

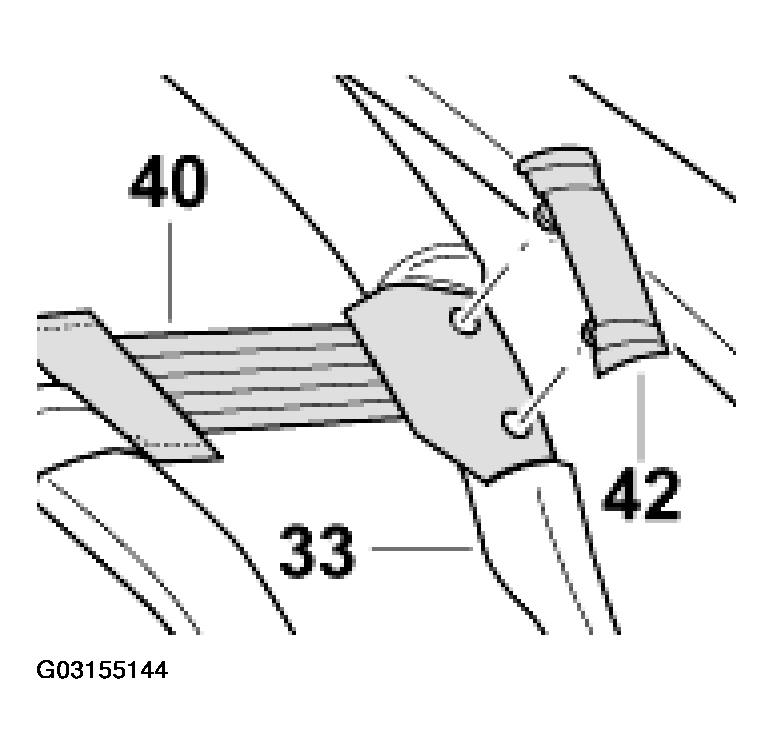

Fig 2: Installing Tension Strap On Corner Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing tension strap on the roof frame
Position the tension strap -40- on the roof frame at the rear -22- and fasten the tension strap -40- with the fastening screws -43-. See Tightening torques .

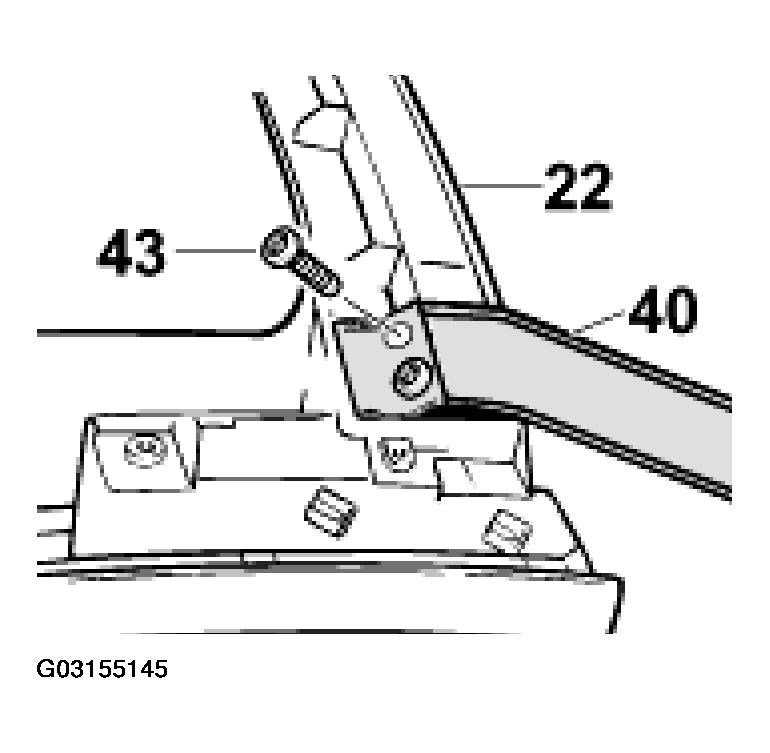

Fig 3: Installing Tension Strap On Roof Frame
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing tension strap on the corner bow
NOTE:
- Use only aluminium rivets listed in the scope of parts
Position tension strap -44- on corner bow -33- on the holes provided, rivet on the tension strap -44- with the pop rivets -45- (parts scope component of convertible-top covering)

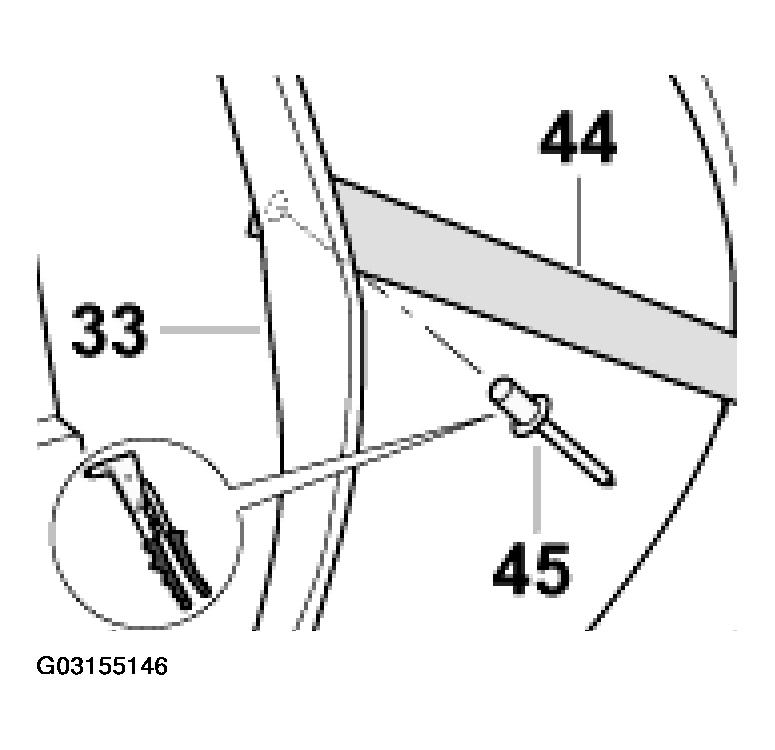

Fig 4: Installing Tension Strap On Corner Bow
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Installing tension strap on the tension bow
NOTE:
- Use only -yellow galvanized- rivets listed in the scope of parts
Position tension strap -44- on tension bow -36- on the holes provided, rivet on the tension strap with the pop rivets -45- (parts scope component of convertible-top covering).

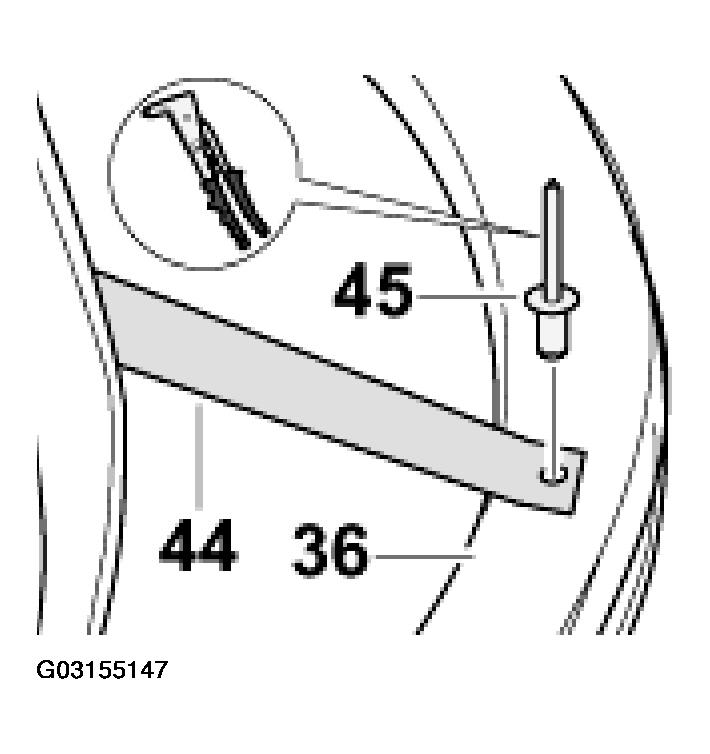

Fig 5: Installing Tension Strap On Tension Bow

Courtesy of PORSCHE OF NORTH AMERICA, INC.
