Installing hardtop

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

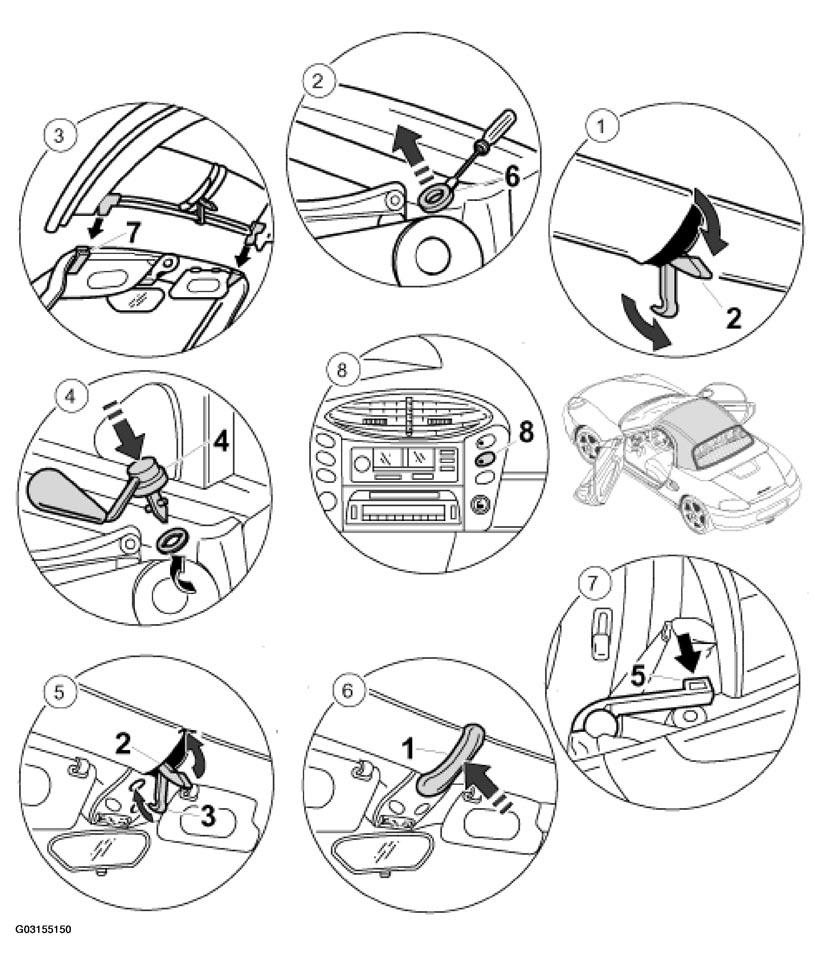

Fig 1: Installing Hardtop Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

INSTALLING HARDTOP INSTRUCTIONS

No.	Procedure	Instructions
1	Open the locking lever	The locking lever -2- . See Fig 1 .
2	Remove plastic cover	Lift plastic cover -6- . See Fig 1 .
3	Put on the hardtop	Carefully lift the hardtop over the vehicle from the rear and insert it into the mounts -7- . See Fig 1 .
4	Close locking lever at the rear	Pivot locks must be completely recessed in the pivot-pin locks; swivel both locking levers -4- . See Fig 1 .
5	Close locking lever at the front	Swivel locking lever -2-1- . See Fig 1 .
6	Connect the electrical plug connection of the rear window heater	Remove plastic cover of plug connection and push on rear window heating electric plug connection -5- . See Fig 1 .
7	Push on cover of the front locking lever	Push on cover -1- . See Fig 1 .
8	Test the rear window heater	Press symbol of the rocker switch -8- . See Fig 1 .
	The first time the hardtop is put on the vehicle, check gaps and, if necessary, adjust hardtop	See ADJUSTING THE HARDTOP . Refer to DIAGRAM - GAP DIMENSIONS, HARDTOP .
