Diagram - Gap dimensions, hardtop
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

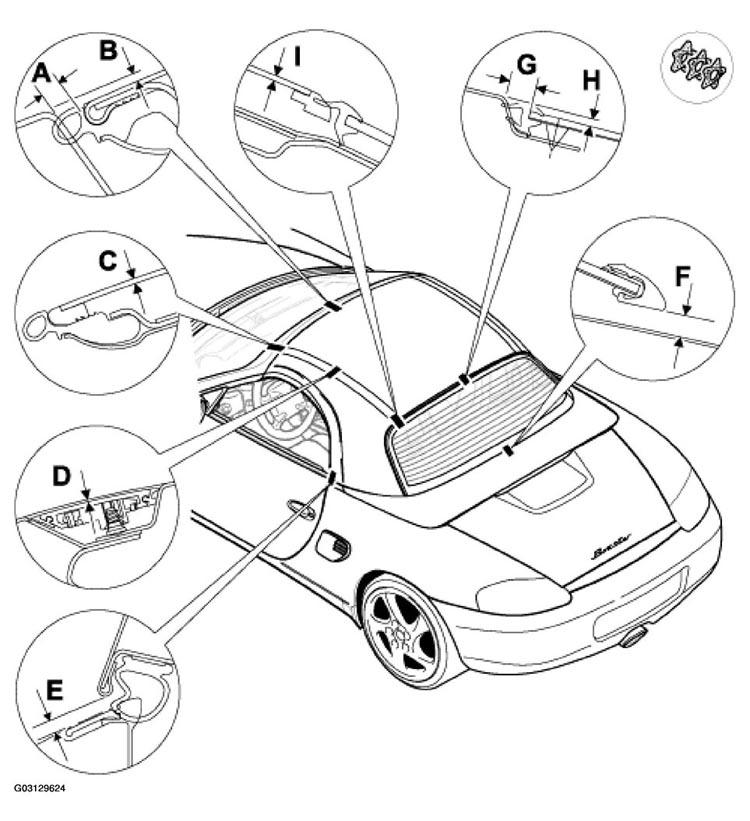

BODY GAP DIMENSIONS (HARDTOP)
| Designation | Dimension | Note | |
|---|---|---|---|
| Windshield frame to hardtop | -A- | 5;5+/-1 mm | |
| -B- | 2+/-1 mm | Convertible top only lowered | |
| Roof joint strip to front hardtop | -C- | Roof joint strip tapers off until it is flush | |
| Roof joint strip to hardtop | -D- | 0,7+/-1 mm | |
| Rear window to rear roof frame (Hardtop) | -E- | 5,5+3,5 mm | |
| Hardtop to convertible-top compartment lid | -F- | 5,5+3,5 mm | |
| Hardtop to convertible-top compartment lid | -G- | 10,4 mm | |
| -H- | 3+/-4 mm | ||
| Roof joint strip to rear hardtop | -I- | Roof joint strip tapers off until it is flush | |
