Adjusting Cabriolet convertible top: Notes
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The requirement for adjusting convertible top is that convertible top gears are adjusted! See ADJUSTING CONVERTIBLE TOP GEAR .
- The requirement for adjusting convertible top is that I the roll-over bar is calibrated! See ADJUSTING THE ROLL-OVER BAR .
- The requirement for adjusting convertible top is that the roll-over bar is calibrated! See ADJUSTING LID FOR CONVERTIBLE TOP COMPARTMENT .
- On vehicles which have been used for a long time with open convertible top or with hardtop, it may be the case that the engaging of the locking hook must be aided by pulling the convertible top towards the windscreen with one of the grippers in the convertible top frame. The folded convertible-top covering must first stretch again.
- Adjustment of the push bars on the convertible top drives
- Remove convertible top (push bar spring and push bar) left and right and swivel forwards until the convertible top lock retracts into the roof frame. Do not close convertible top lock.

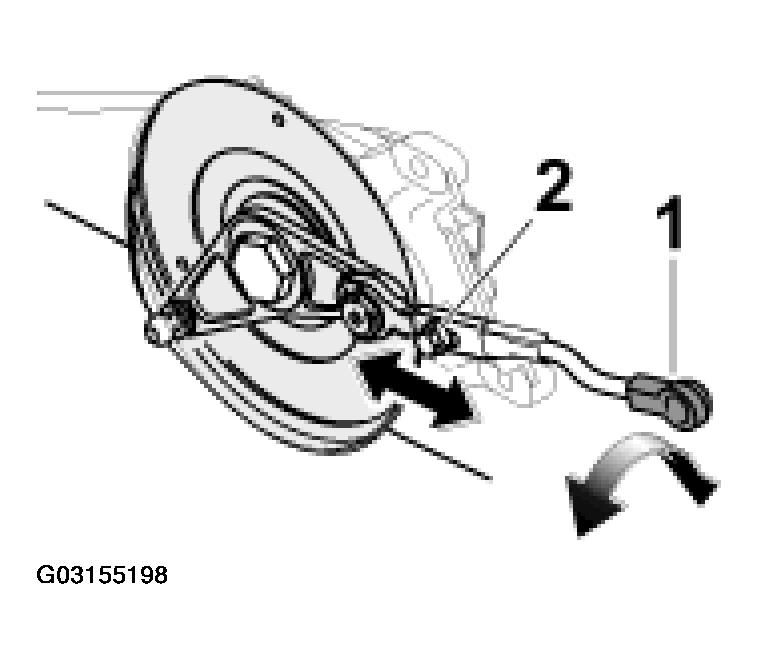

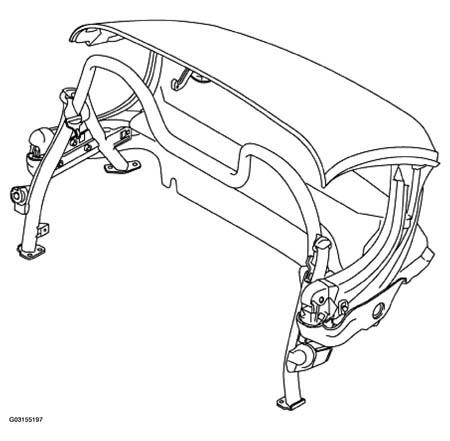

- Undo fastening screw -2- . Press ball socket of push bar -1- into ball head of convertible top support. Tighten fastening screw -2- . See Fig 2 .
- Fit push bar springs on the left and right.
- End service position.
- Adjusting the tension cables on convertible top frame

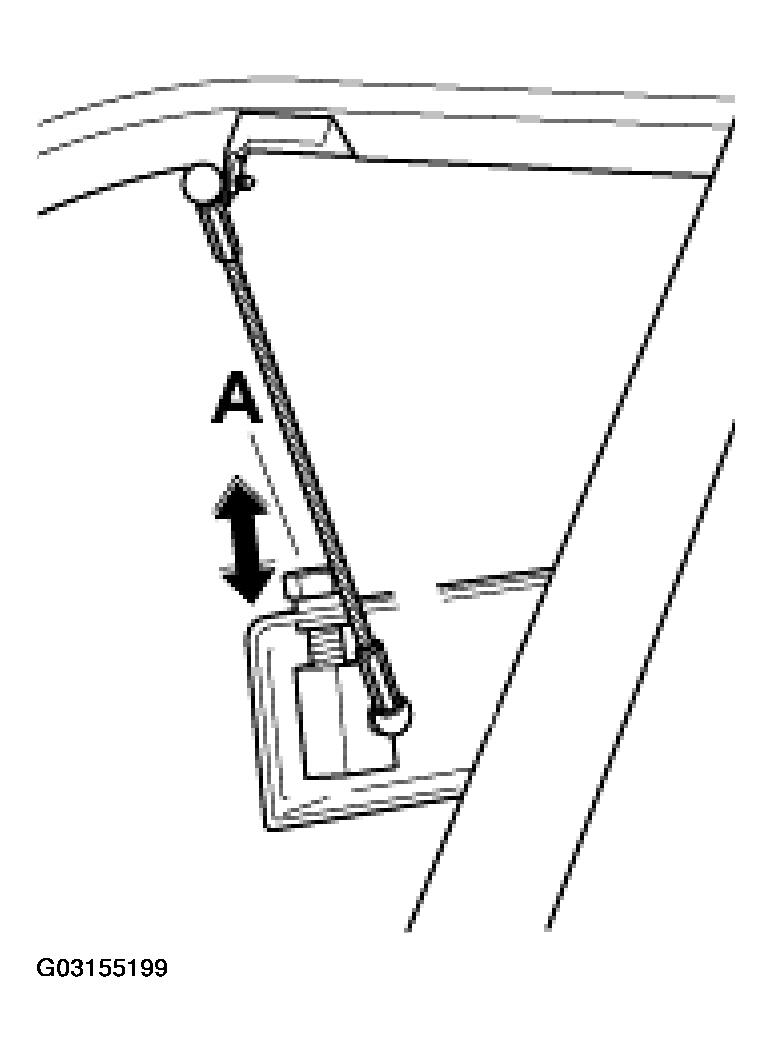

Adjust contact pressure between tension bow seal and the convertible top compartment lid by screwing hexagon-head bolt -A- in and out.
Courtesy of PORSCHE OF NORTH AMERICA, INC.
Adjust contact pressure in such a way that a 0.5-mm plug-in card can be pulled through the tension bow seal and the convertible top compartment lid on all sides.
