Adjusting lid for convertible top compartment

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust stop for convertible top compartment lid
    1. Adjust gap dimensions for convertible top compartment lid. Refer to DIAGRAM - GAP DIMENSIONS, HARDTOP . If necessary, adjust body gap dimensions with the eccentric pin. See item -18-  in Figure .
    2. Push stop for convertible top compartment lid onto body raised edge of water channel.
    3. By shifting +/- the wedge on the stop, the offset to the side section is adjusted.

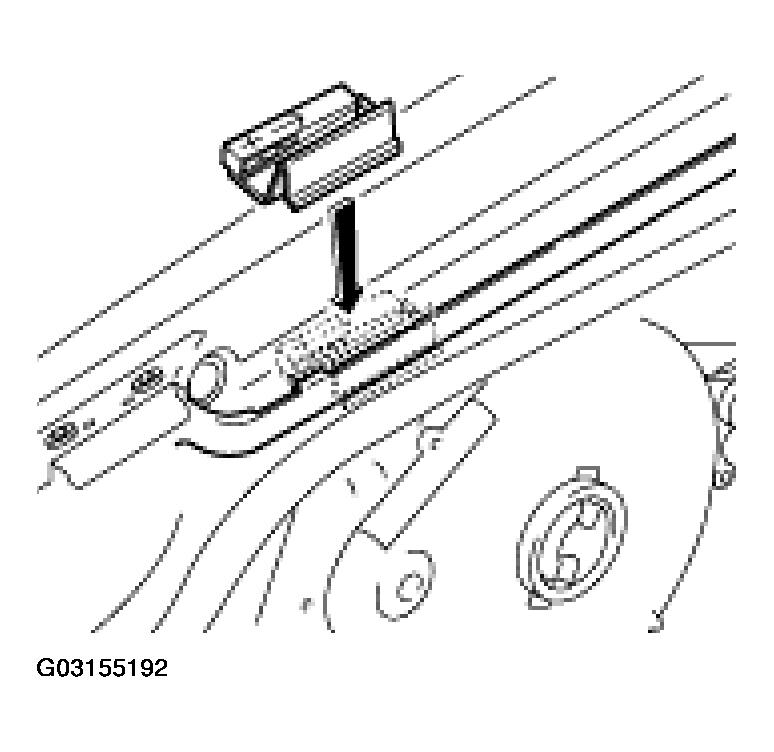

Fig 1: Adjusting Lid For Convertible Top Compartment
G03155192Courtesy of PORSCHE OF NORTH AMERICA, INC.
