Setting the door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 Porsche Boxster, 2003 Porsche Boxster, 2002 Porsche Boxster, 2001 Porsche Boxster, and 2000 Porsche Boxster. However, it is still accessible from the selected car via links, so may be relevant.

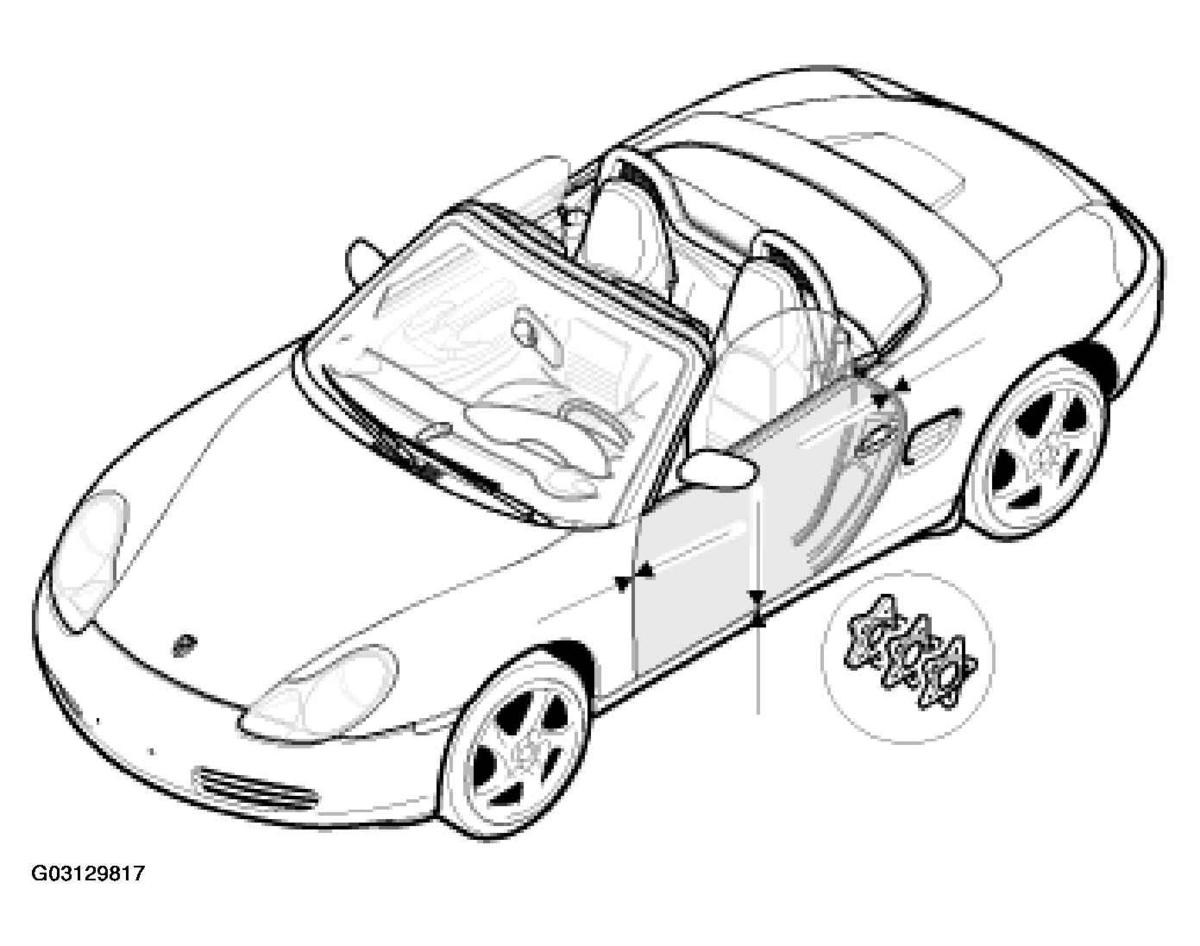

Fig 1: Identifying Door Gap Measurment Points

Courtesy of PORSCHE OF NORTH AMERICA, INC.

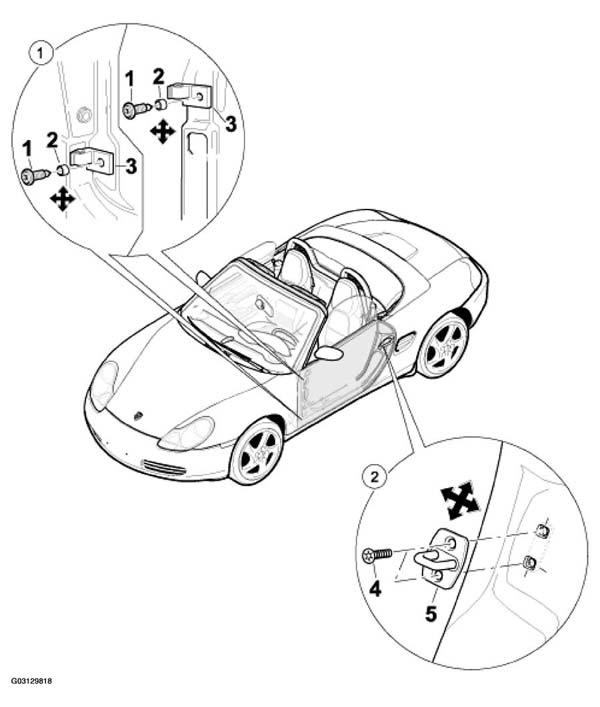

Fig 2: Door Gap Setting Components

Courtesy of PORSCHE OF NORTH AMERICA, INC.

DOOR SETTING PROCEDURE

No.	Procedure	Instructions
1	Setting t he door at front	Undo fastening screw -1-3-2- . See Fig 2 . Refer to GAP DIMENSIONS, BODY .
2.	Setting the door at rear	Undo fastening screw -4-5- . See Fig 2 . Refer to GAP DIMENSIONS, BODY .
