Removal & Installation

WARNING: This page is about a different car, the 2004 Porsche Boxster and 2004 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  . Remove and discard 2 air bag unit retaining Torx screws (T30) from rear of steering wheel. Pull air bag unit away from steering wheel and disconnect air bag unit connector. Remove air bag unit. See Fig 1 .
  2. To install, reverse removal procedure. Install NEW self-locking air bag unit retaining Torx screws. Remove retaining bracket to replace retaining screws. Tighten screws to specification. See TORQUE SPECIFICATIONS  . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .

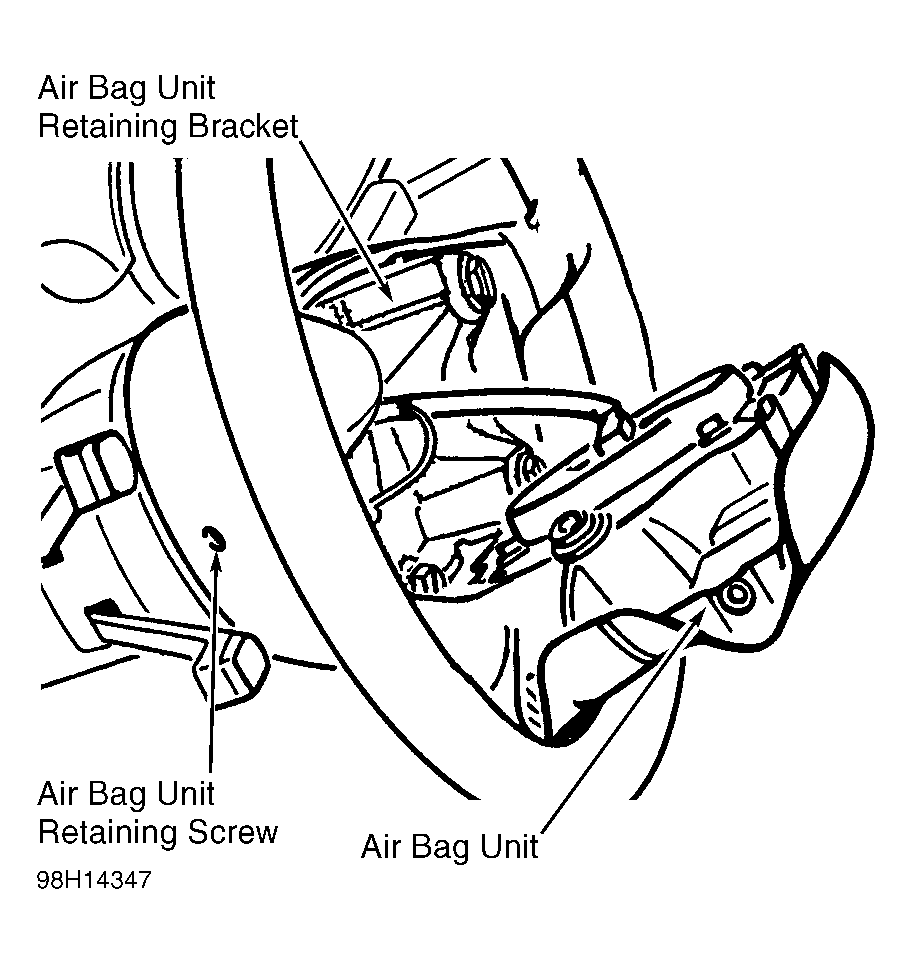

Fig 1: Identifying Driver-side Air Bag Unit
G98H14347Courtesy of PORSCHE OF NORTH AMERICA, INC.
