Installing mounting unit (drive mechanism)
NOTE:
The gate guide, cables and front and rear mount slides must not be greased.
MOUNTING UNIT (DRIVE MECHANISM) COMPONENTS INSTALLING PROCEDURE - TARGA
| No. | Procedure | Instructions |
|---|---|---|

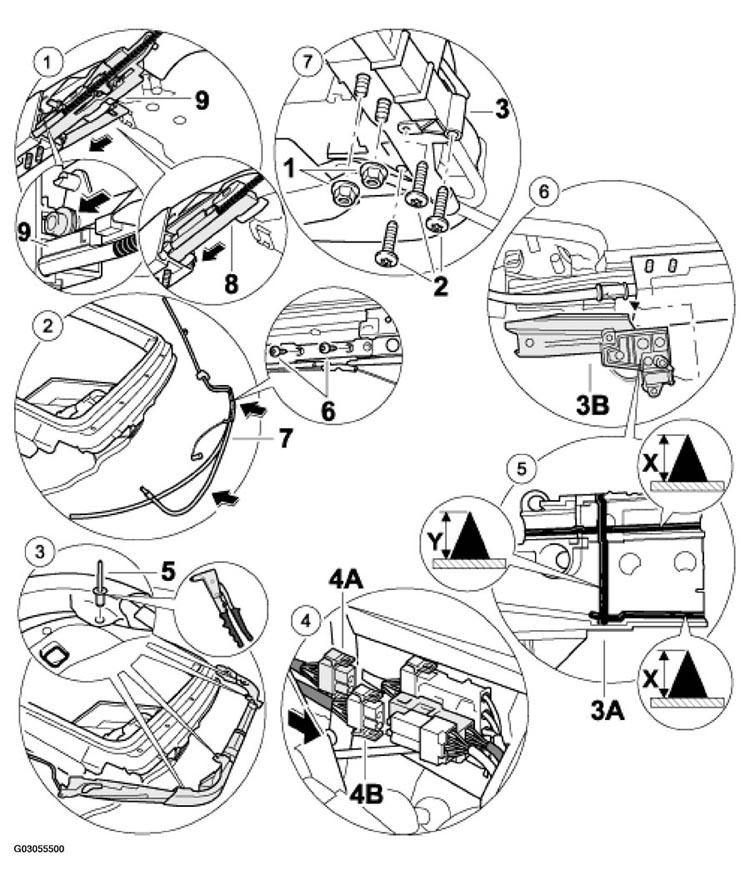

| 1 | Installing mount slide | Insert the front mount slide -8-9- . See Fig 1. |
| Note! During installation, the metal guide tubes must not be bent or distorted! | ||
| 2 | Installing metal guide tube | For easier assembly, first insert the metal guide tube -7-6- . See Fig 1. |
| 3 | Installing bracket | Position the bracket on the roof module and rivet to the roof module with the pop rivets -5- . See Fig 1. |
| 4 | Connecting the electrical plug connection of the sun blind motor drive | Connect electrical plug connection (blue) -4A-4B- . See Fig 1. |
| 5 | Preparing bracket of rear water drainage for installation | Apply glue to the bracket of the rear water drainage -3A-
. See Fig 1. |
| 6 | Installing rear water drainage bracket | Position the bracket of the rear water drainage -3A-3A-2-1-3- . See Fig 1. |
| Installing frame for sliding roof cover | See Removing and installing frame for sliding roof cover - Targa . | |
| Installing roof module | See Preparing roof module and vehicle for installation . | |
| See Installing roof module . | ||
| Installing rear window cover | Refer to REMOVING AND INSTALLING REAR WINDOW COVER - TARGA . | |
| Functional inspection | Connect the Porsche System Tester to the diagnostic socket. Switch on ignition. | |
| Select the menu item Targa roof, select the menu item drive links, open/close function or actuate rear lid function. | ||
| Read out fault memory. If necessary, in case of a fault entry, proceed according to | ||
| Refer to CONVERTIBLE TOP, HARDTOP - 911 CARRERA (996) . | ||
| Checking position of rear mount | Refer to SETTING THE MICROSWITCH OF THE SLIDING ROOF > CLOSED < . | |
| Installing fabric lining | See Removing and installing fabric lining - Targa . | |
