Preparing roof module and vehicle for installation

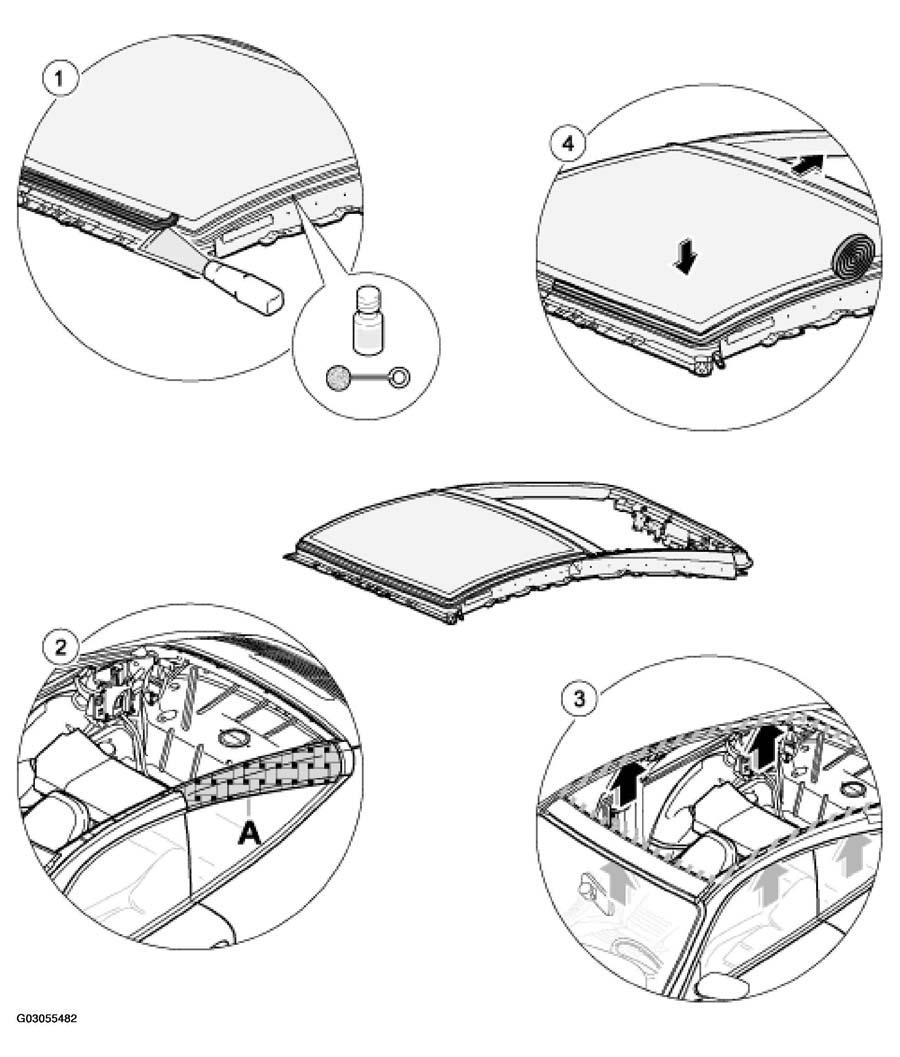

Fig 1: Preparing Roof Module And Vehicle For Installation - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

ROOF MODULE AND VEHICLE PREPARING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Removing Nito tape	Scratch off the Nito tape all the way round with a metal spatula, then clean these areas with cleaning agent.
Caution! Damage to paint when guiding in the roof module. To protect the paint from damage, generously mask the rear left roof rail -A-.
2	Masking the rear left roof rail	To protect the paint from damage, generously mask the rear left roof rail -A- . See Fig 1.
3	Cleaning the vehicle flange or rails	Clean the vehicle flanges or rails which come into contact with the Nito tape in the vehicle interior See Installing roof module .
4	Affixing Nito tape on the roof module all the way round	Stick the Nito tape all the way round the roof module starting from the centring pegs at the front. See Installing roof module . .
