Installing guide for fabric lining

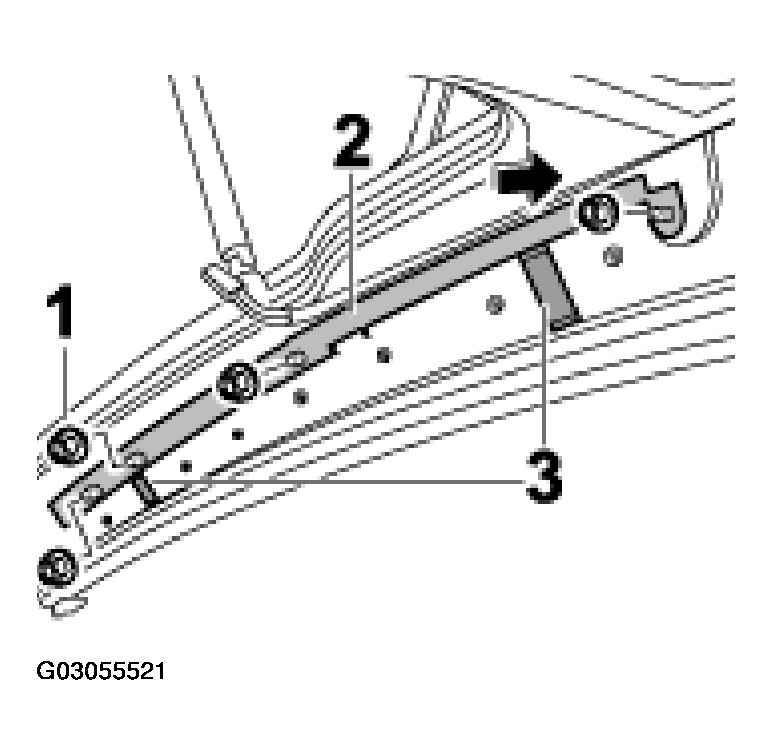

Fig 1: Installing Guide For Fabric Lining

Courtesy of PORSCHE OF NORTH AMERICA, INC.

1. Press in electrical wire into the guide for fabric lining at the side. Begin at the marking (white point) on the wire. Connect the plug connection.
2. Position guide for fabric lining -2-  on inner roof module, screw in fastening screws -1-  . See Fig 1.
3. Set the adjusting dimension -60 mm-  for the fabric lining guide and the roof module guide using the distance gauge. See Removing guide for fabric lining -3-  . See Fig 1.

   See Test and adjusting values .

   See Tools and materials .

4. Tighten the fastening screws -1-  . See Fig 1.

   Tightening torque: See  Tightening torques  .

5. See Installing the rear fabric lining .

   Instructions for making distance gauge

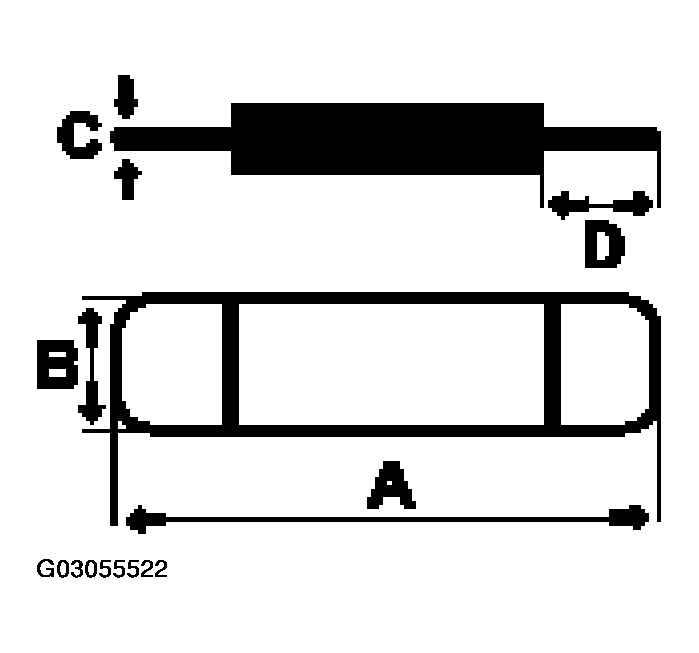

   Fig 2: Identifying Specified Dimensions Of Distance Gauge

   Courtesy of PORSCHE OF NORTH AMERICA, INC.

Make distance gauge out of wood or plastic according to the specified dimensions A, B, C, D. See Fig 2.

• A = 60 mm
• B = 15 mm
• C = 1.2 mm
• D = 15 mm
