Removing guide for fabric lining

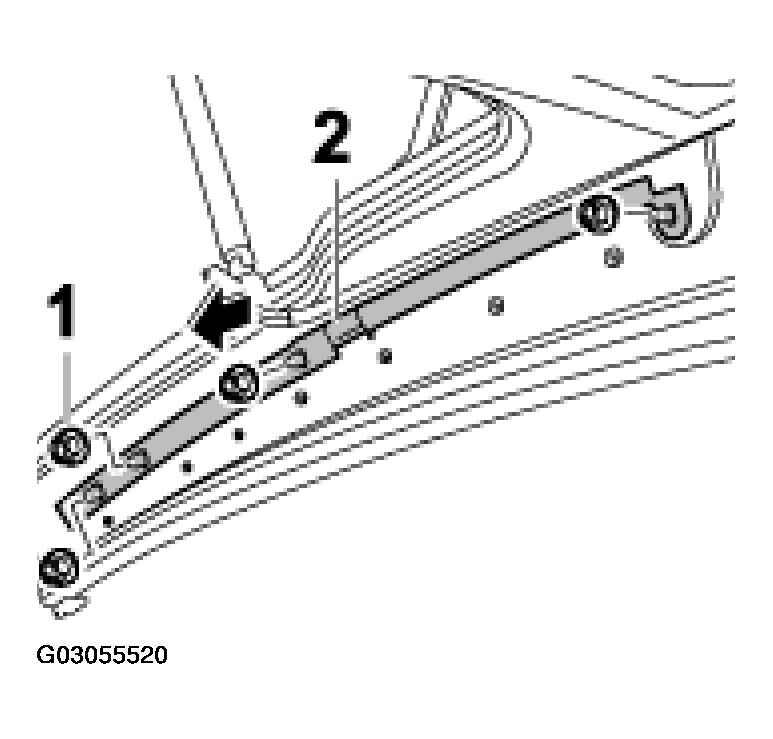

Fig 1: Removing Guide For Fabric Lining
G03055520Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. See Removing the rear fabric lining .
  2. Unscrew fastening screws -1-  from the guide for fabric lining -2-  and remove. See Fig 1.
  3. Pull electrical wire out from the guide for fabric lining on the rear side.
