Installing the rear fabric lining

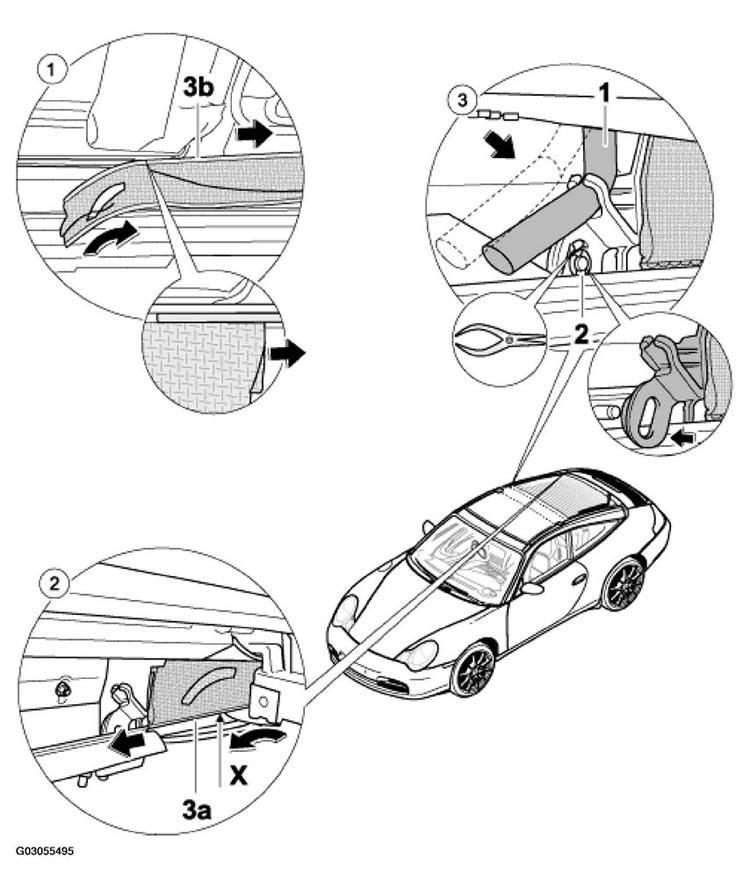

Fig 1: Installing Rear Fabric Lining Components - Targa

Courtesy of PORSCHE OF NORTH AMERICA, INC.

REAR FABRIC LINING COMPONENTS INSTALLING PROCEDURE - TARGA

No.	Procedure	Instructions
1	Installing the top connection	Pull the connection seal -3b-direction of the arrow- . See Fig 1.
2	Installing the lower connection	Pull the connection seal -3a-direction of the arrow- . See Fig 1.
3	Installing the retainer	1. Engine the rear fabric lining -3- in the pin on the mount. See Fig 1.
		2. Push the retainer -2- into the groove of the pin with pointed-nose pliers. See Fig 1.
		3. Push the rubber hose -1- into the holder. See Fig 1.
	Installing fabric lining, front	See Installing the front fabric lining .
