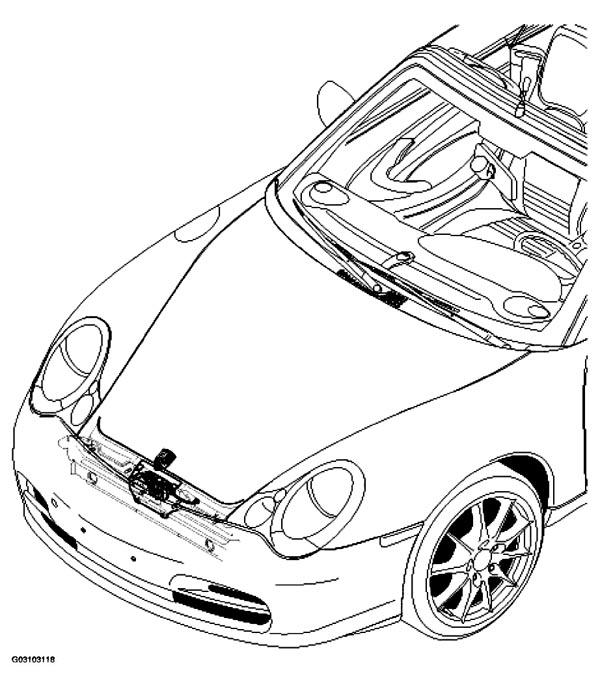

Removing and installing front lower part of lid lock: Notes

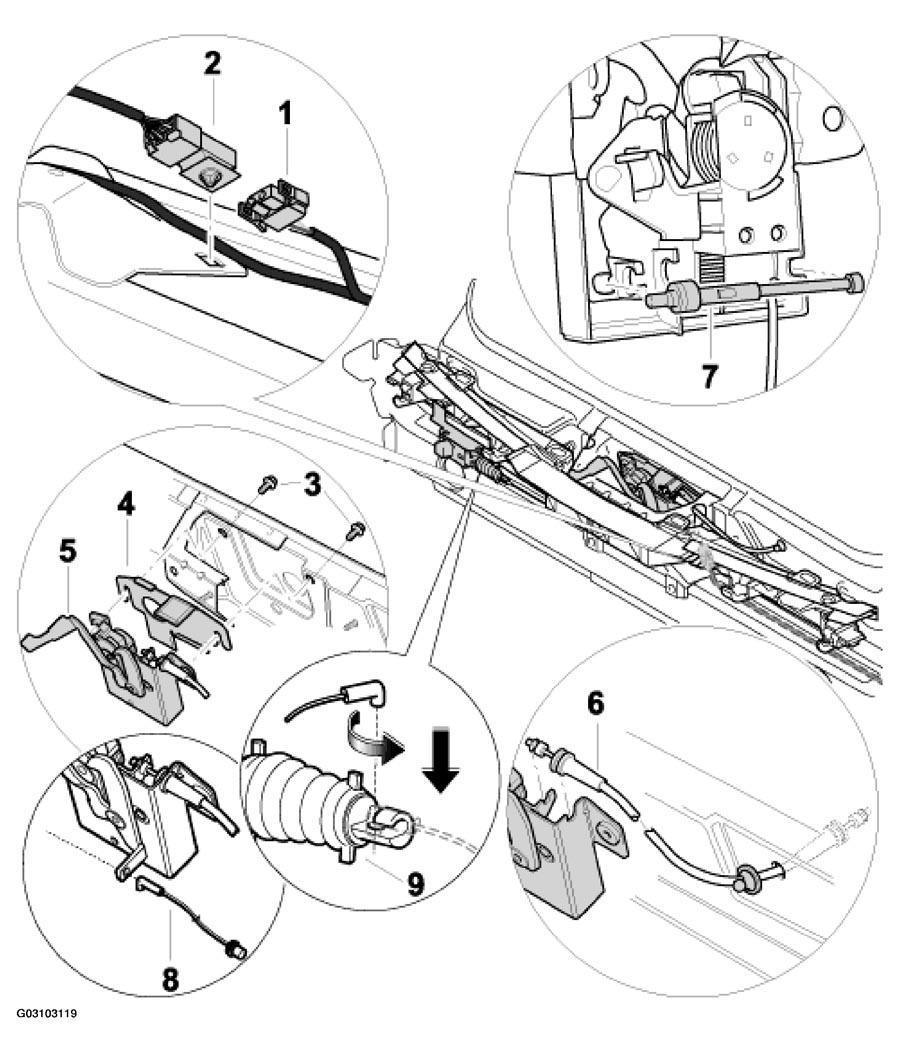

FRONT LOWER PART OF LID LOCK REMOVAL AND INSTALLATION PROCEDURE CHART
| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Electrical plug connection lock side | 1 | Turn in -direction of arrow A- | Position electrical plug connection on the lock panel and turn in -direction of arrow B- |
| 2 | Electrical plug connection | 1 | At -arrow C- | Plug in the electrical plug connection. |
| 3 | Hexagon-head bolt | 2 | Undo. | Screw in. -10 Nm (7.5 ftlb.)- Tightening torque: -10 Nm (7.5 ftlb.)- |
| 4 | Cover panel | 1 | Separate from lower part of lid lock. | Position on lower part of lid lock. |
| 5 | Lower part of lid lock | 1 | Undo. | Position on closing panel. |
| 6 | Bowden cable | 1 | Disengage nipple of the bowden cable -6- | Press in bowden cable cover -6- |
| 7 | Bowden cable, emergency release | 1 | Press bowden cable -7- | Press bowden cable -7- |
| 8 | Bowden cable, emergency release Only USA and Canada vehicles | 1 | Twist the bowden cable -8--direction of the arrow--9- | Refer to CHECKING INNER RELEASE OF LUGGAGE COMPARTMENT (TRUNK ENTRAPMENT) |
| 9 | Servo motor, emergency release Only USA and Canada vehicles | 1 | Refer to REMOVING LID RELEASE MOTOR | Refer to INSTALLING LID RELEASE MOTOR |
