Installing lid release motor

  1. Engage the cable and position the motor at the holder.

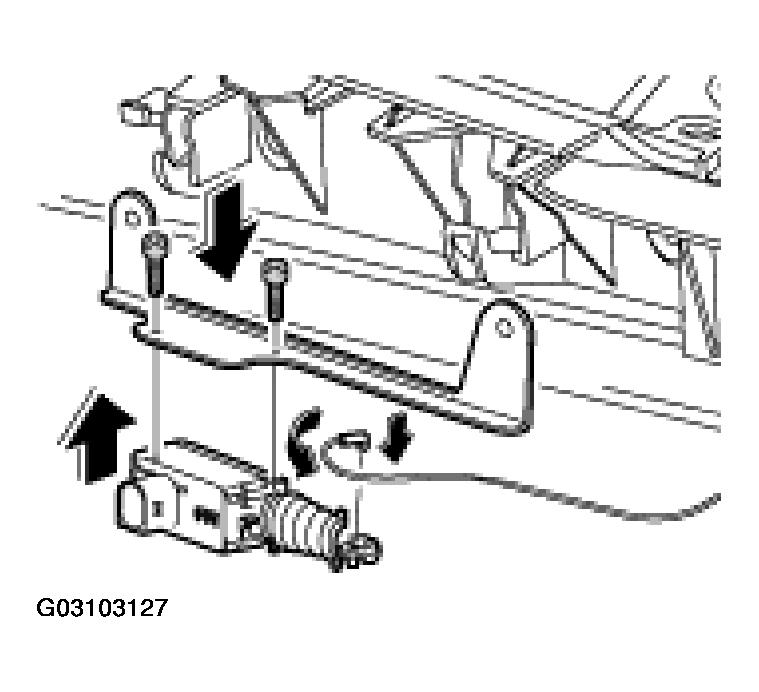

    Fig 1: Engaging Cable And Positioning Motor At Holder
    G03103127Courtesy of PORSCHE OF NORTH AMERICA, INC.
  2. Screw in the fastening screws. Tightening torque: 1.5Nm (1 ftlb.).
  3. Position the holder with the motor on the retaining strip and screw tight with the fastening nuts. Tightening torque: 9.7 Nm (7 ftlb.).

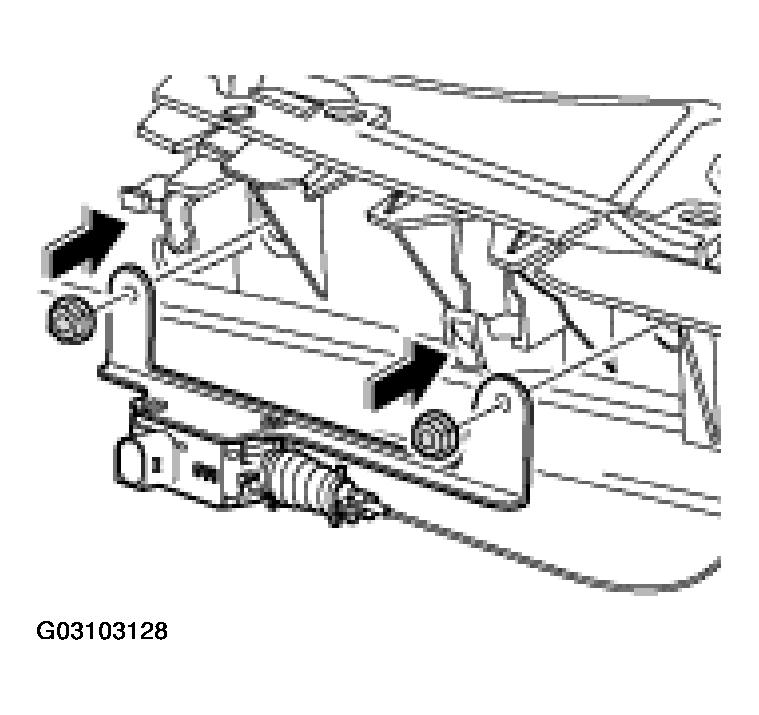

    Fig 2: Positioning Holder With Motor On Retaining Strip
    G03103128Courtesy of PORSCHE OF NORTH AMERICA, INC.
