Removing front spoiler
FRONT SPOILER REMOVING PROCEDURE
| No. | Procedure | Instructions |
|---|---|---|
| Removing part of wheel housing liner | Refer to REMOVING AND INSTALLING WHEEL HOUSING LINER - UP TO MODEL YEAR 2001 and REMOVING AND INSTALLING WHEEL HOUSING LINER - AS OF MODEL YEAR 2002 | |

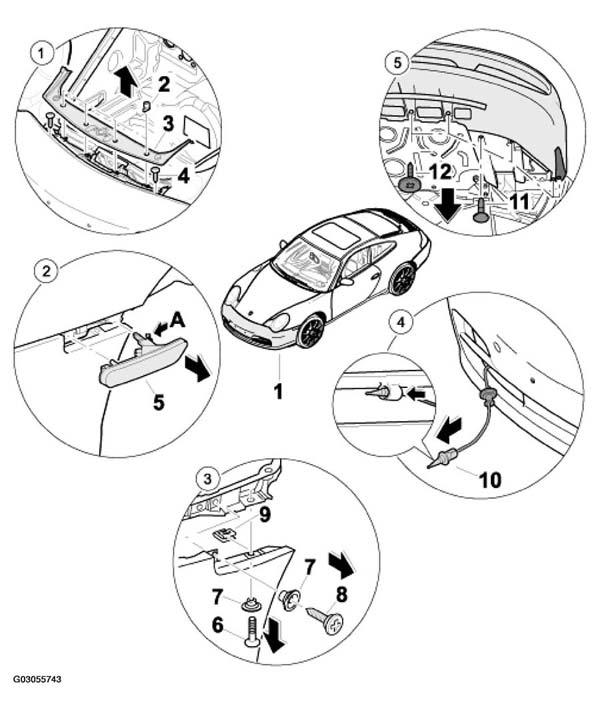

| 1 | Removing cover | Turn hexagon cap nut -2-3-4-1- . See Fig 1 . |
| 2 | Removing direction indicator light | Press in spring clip of direction indicator light -arrow A-5- . See Fig 1 . |
| 3 | Undoing front spoiler at the sides | On the front spoiler, undo the sheetmetal screws -6-7- . See Fig 1 . |
| 4 | Pressing out temperature sensor | Press temperature sensor -9- . See Fig 1 . |
| 5 | Undoing front spoiler on the underbody | Undo fastening screws -10-1- . See Fig 1 . |
