Removing and installing wheel housing liner - as of model year 2002

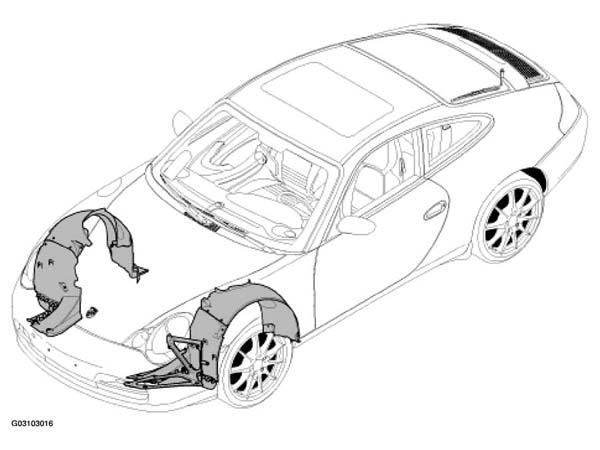

Fig 1: Locating Wheel Housing Liner - As Of Model Year 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

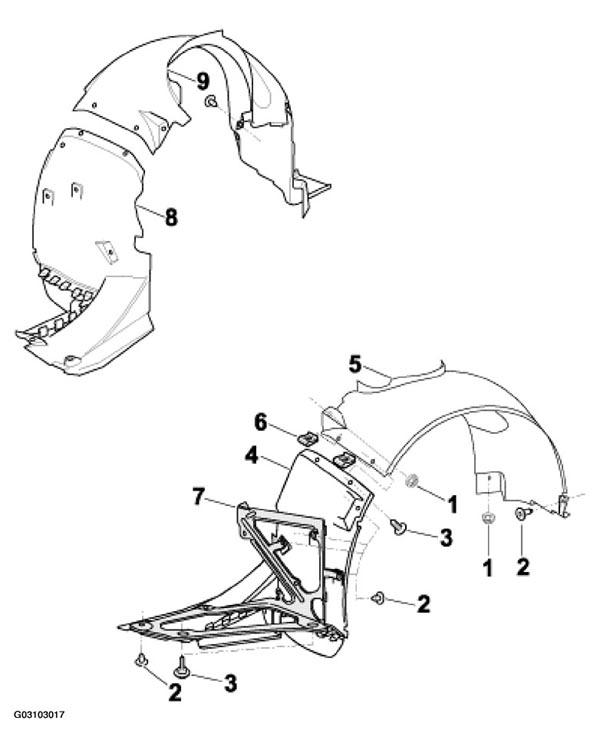

Fig 2: Exploded View Of Wheel Housing Liner - As Of Model Year 2002

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WHEEL HOUSING LINER COMPONENTS CHART

No.	Designation	Qty.	Removal	Installation
1	Plastic nut T5	4		Check, replace if necessary.
2	Plastic body-bound rivet ea. 6.3	6		Check, replace if necessary.
3	Fastening screws	6
4	Front left wheel housing liner	1
5	Front left wheel housing liner	1
6	Sheetmetal nut	4		Adjust to center of hole.
7	Retaining bracket	1
8	Front right wheel housing liner	1
9	Rear right wheel housing liner	1
