Removing and installing wheel housing liner - up to model year 2001

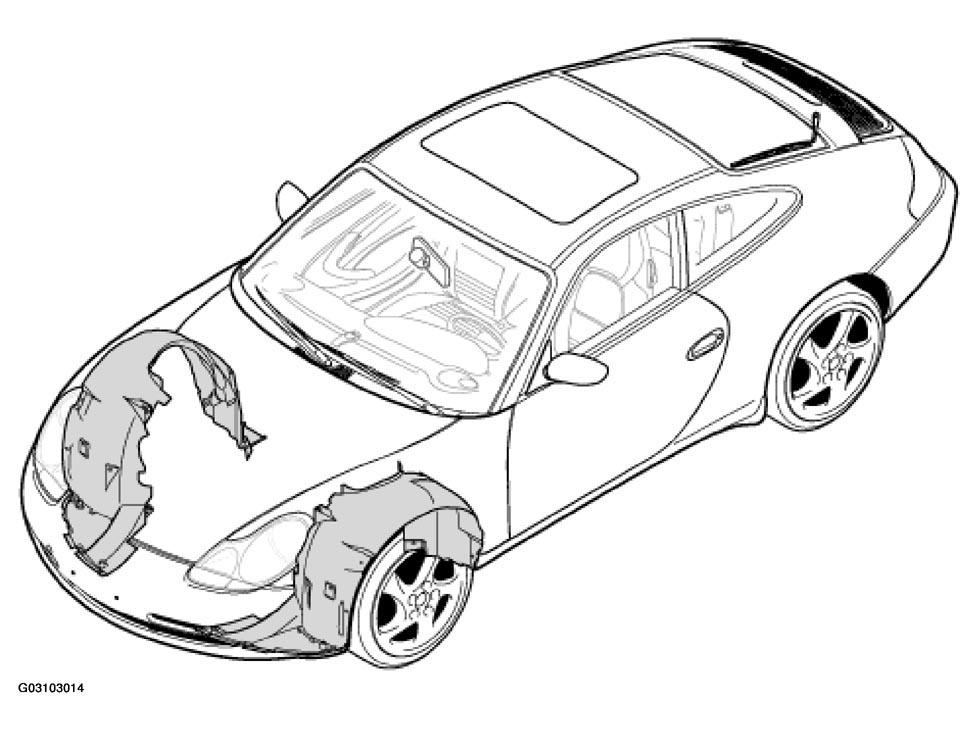

Fig 1: Locating Wheel Housing Liner - Up To Model Year 2001

Courtesy of PORSCHE OF NORTH AMERICA, INC.

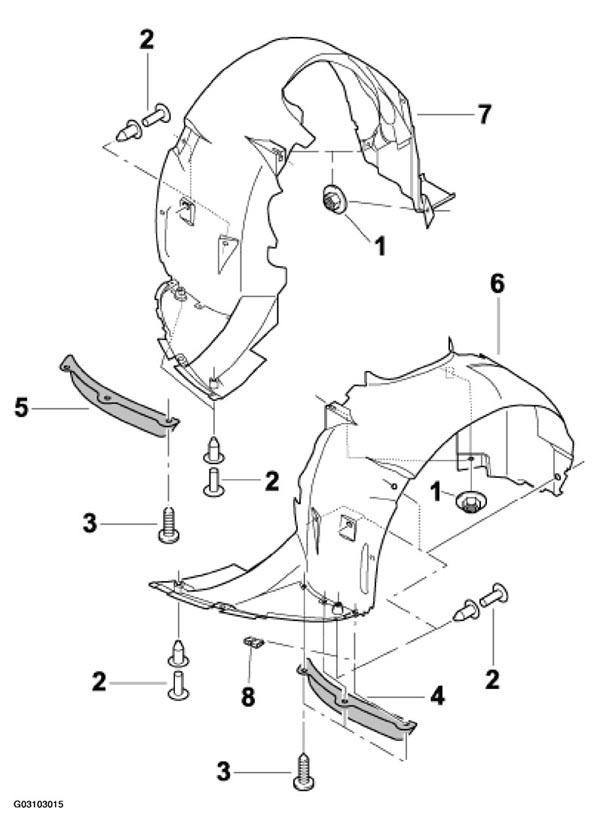

Fig 2: Exploded View Of Wheel Housing Liner - Up To Model Year 2001

Courtesy of PORSCHE OF NORTH AMERICA, INC.

WHEEL HOUSING LINER COMPONENTS CHART

No.	Designation	Qty.	Installation
1	Plastic nut T5	3	Check, replace if necessary.
2	Plastic body-bound rivet ea. 6.3	6	Check, replace if necessary.
3	Fastening screws	4
4	Left plastic lip	1
5	Right plastic lip	1
6	Left wheel housing liner	1
7	Right wheel housing liner	1
8	Sheetmetal nut	4	Adjust to center of hole.
