Removing side-panel lining

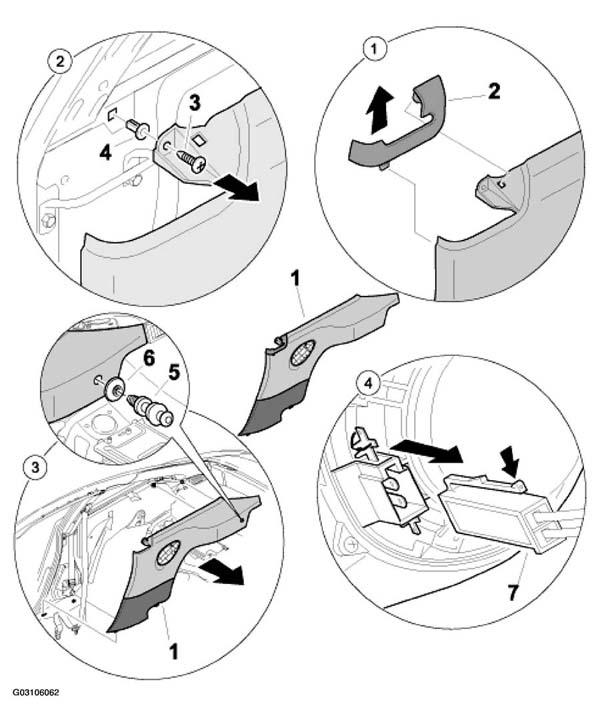

Fig 1: Removing Side-Panel Lining (As Of MY 1996)

Courtesy of PORSCHE OF NORTH AMERICA, INC.

SIDE-PANEL LINING REMOVING PROCEDURE (AS OF MY 1996)

No.	Procedure	Instructions
	Removing B-pillar	See REMOVING AND INSTALLING TRIM OF A, B AND C-PILLARS .
1	Pulling off cover	Pull cover -2-arrow- . See Fig 1 .
2	Unscrewing fastening screw.	Unscrew fastening screw -3- . See Fig 1 .
3	Undoing side-panel lining	Unscrew hexagon socket -5-6-1-arrow- . See Fig 1 .
4	Disconnecting the electrical plug connections	Press the lug -small arrow-7- . See Fig 1 .
