Front Bumper Impact Bar Replacement

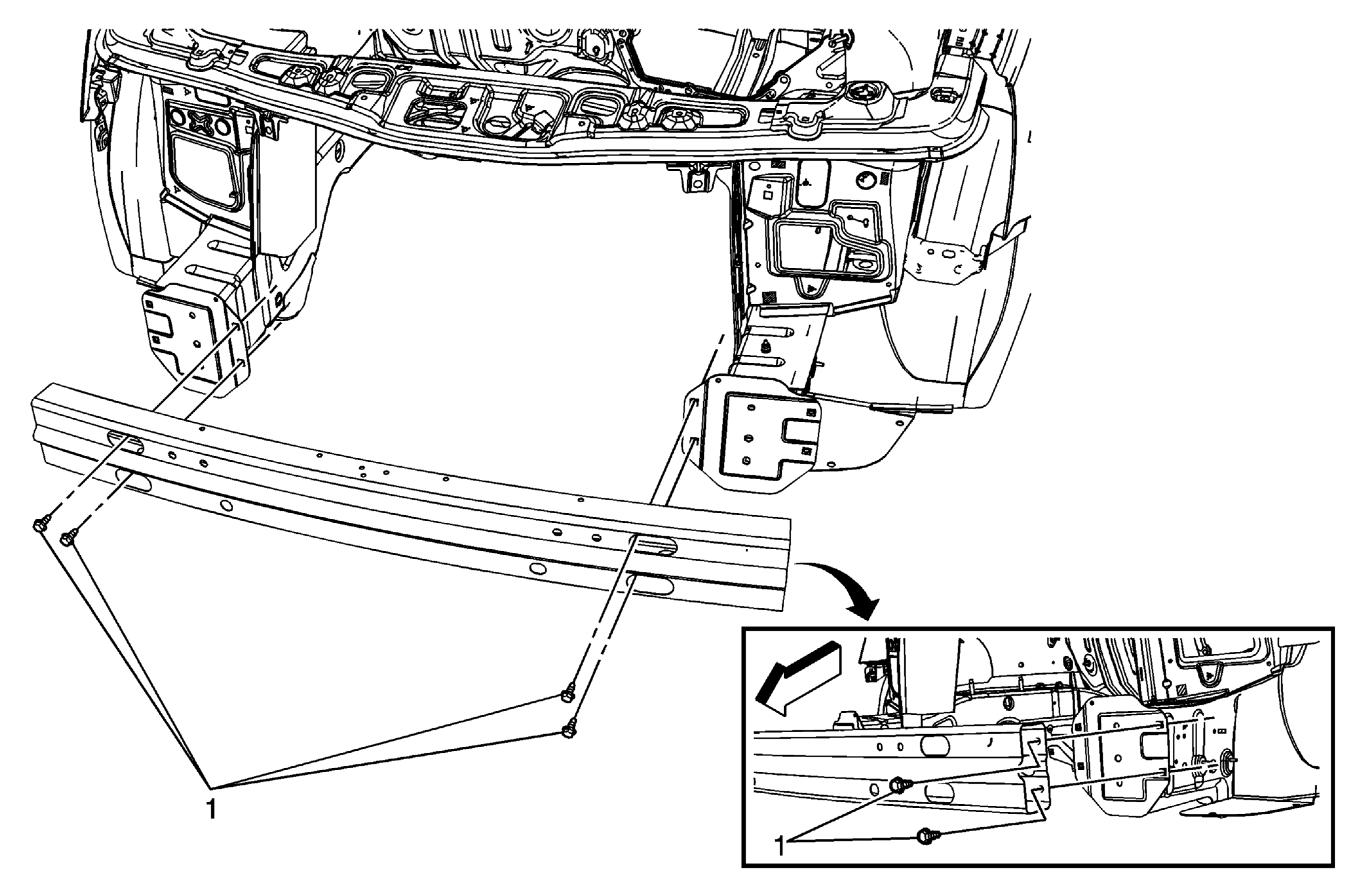

Fig 1: View Of Front Bumper Impact Bar

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (Equinox) or Front Bumper Fascia Energy Absorber Replacement (SS) or Front Bumper Fascia Energy Absorber Replacement (Torrent) .
1	Front Bumper Impact Bar Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
