Front Bumper Fascia Energy Absorber Replacement (Torrent)

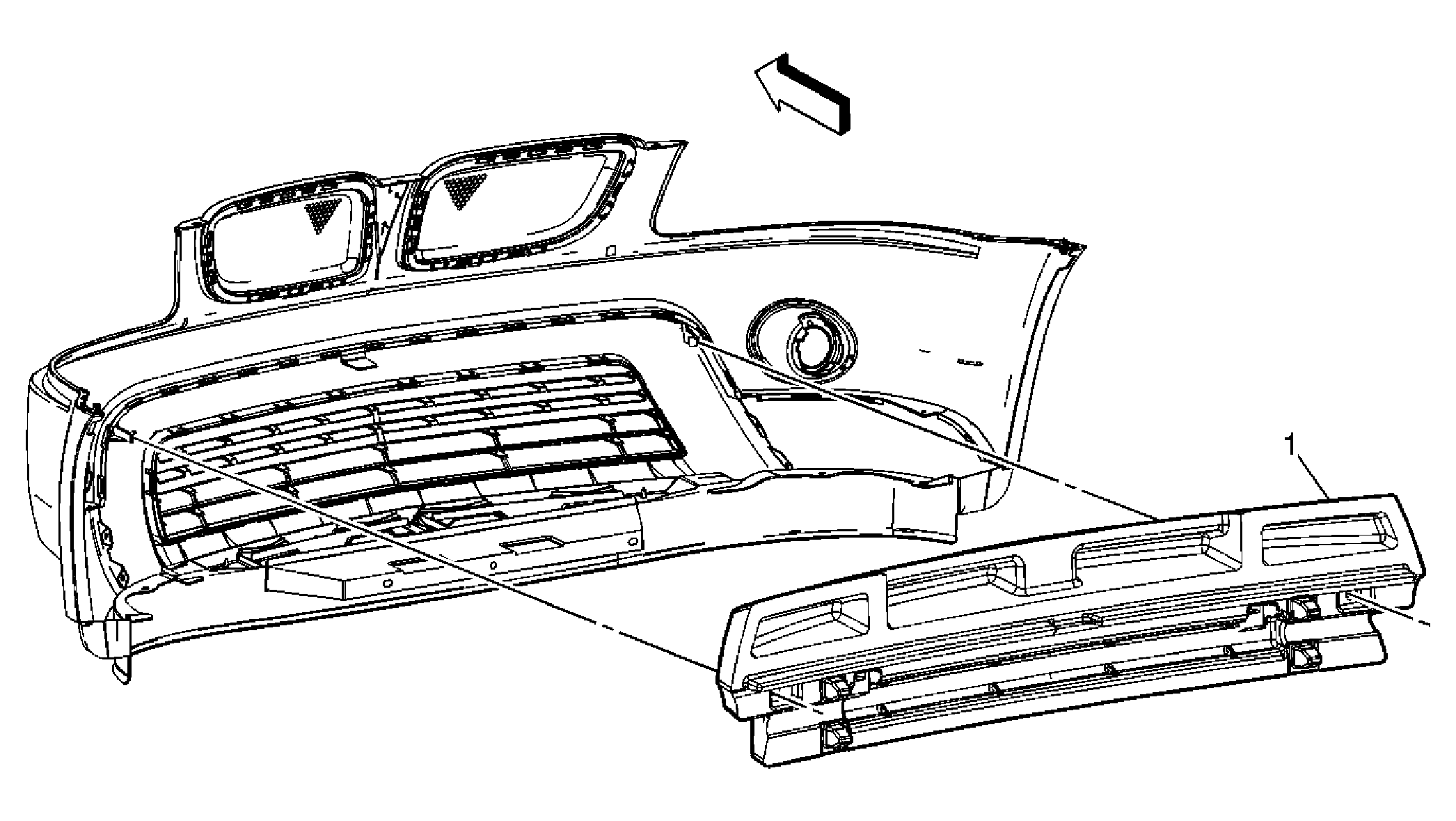

Fig 1: View Of Front Energy Absorber (Torrent)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications . Preliminary Procedure:  Remove the front fascia. Refer to Front Bumper Fascia Replacement (SS)  or Front Bumper Fascia Replacement (Torrent)  or Front Bumper Fascia Replacement (Equinox) .
1	Front Fascia Absorber Assembly Tip:  Release the tabs that secure the absorber to the front fascia.
