Front Bumper Fascia Energy Absorber Replacement (SS)

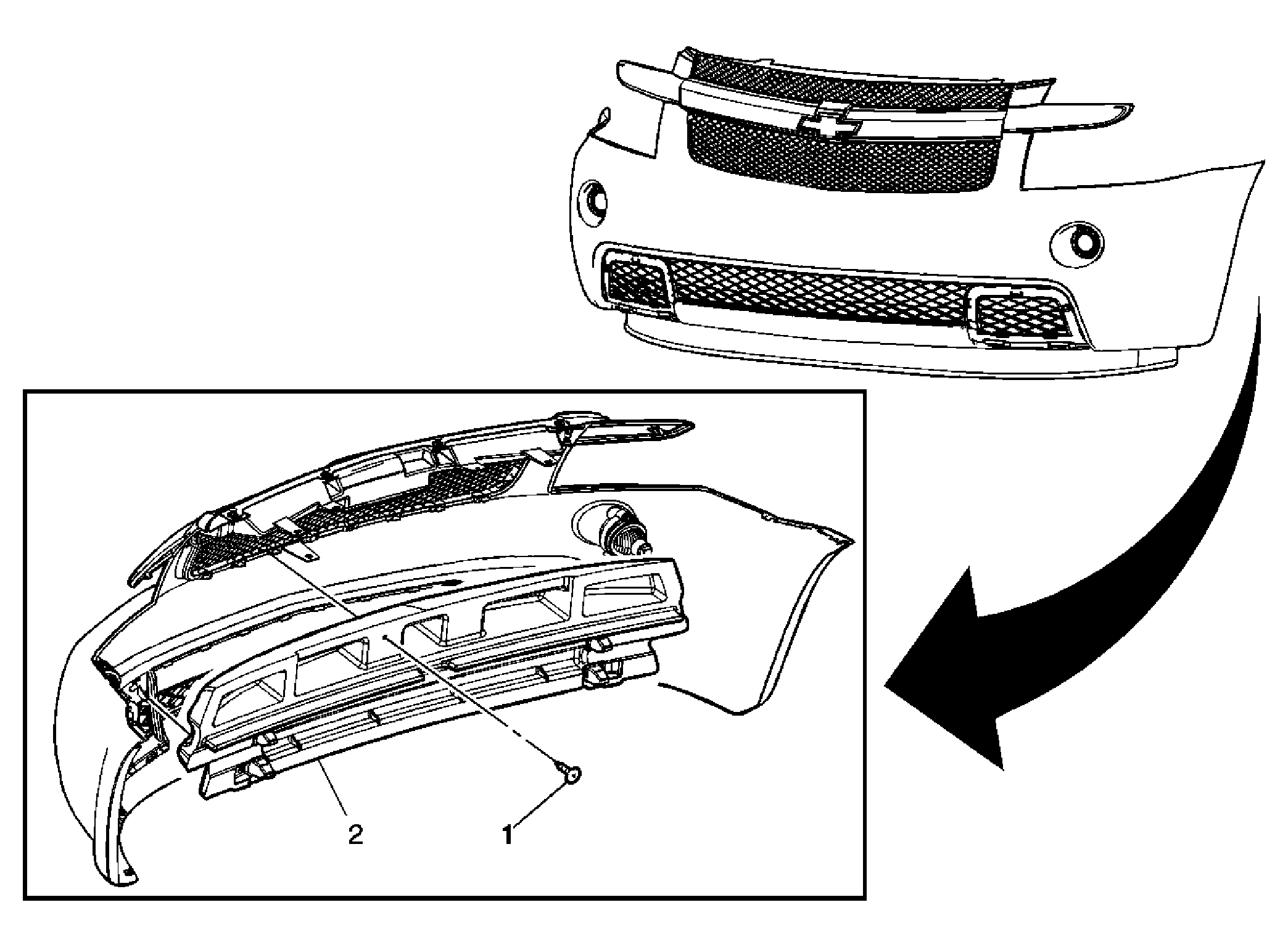

Fig 1: Identifying Front Bumper Fascia Energy Absorber (SS)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (SS)  or Front Bumper Fascia Replacement (Torrent)  or Front Bumper Fascia Replacement (Equinox) .
1	Front Bumper Fascia Energy Absorber Pin Retainer
2	Front Bumper Fascia Energy Absorber Tip:  Release the tabs before removing the absorber.
