Front Bumper Fascia Support Replacement

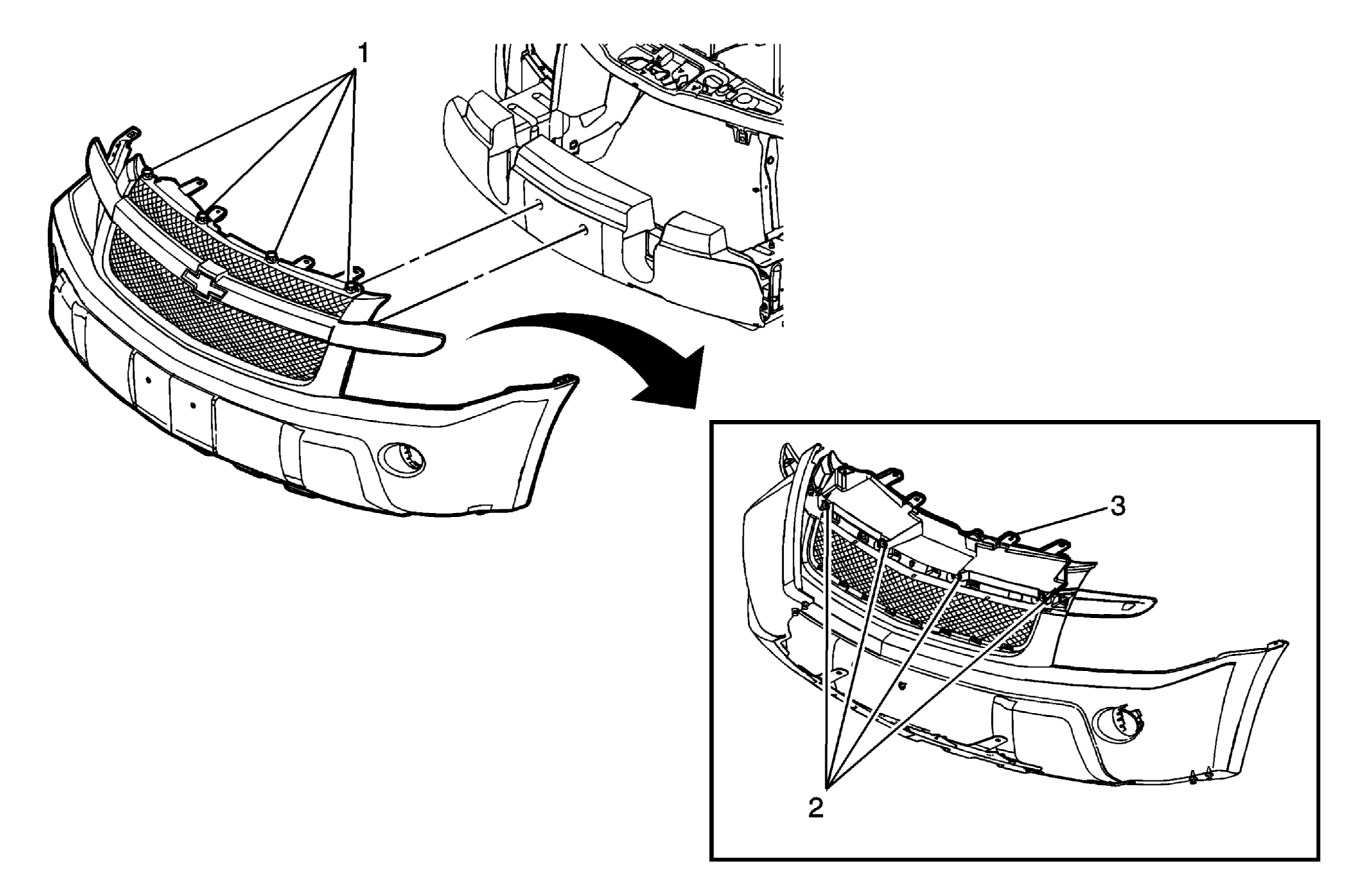

Fig 1: View Of Front Bumper Fascia Support

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (SS)  or Front Bumper Fascia Replacement (Torrent)  or Front Bumper Fascia Replacement (Equinox) .
1	Plastic Push Pin Retainer (Qty: 4)
2	Fascia Support Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
3	Front Bumper Fascia Support
