Front Bumper Fascia Replacement (Equinox)

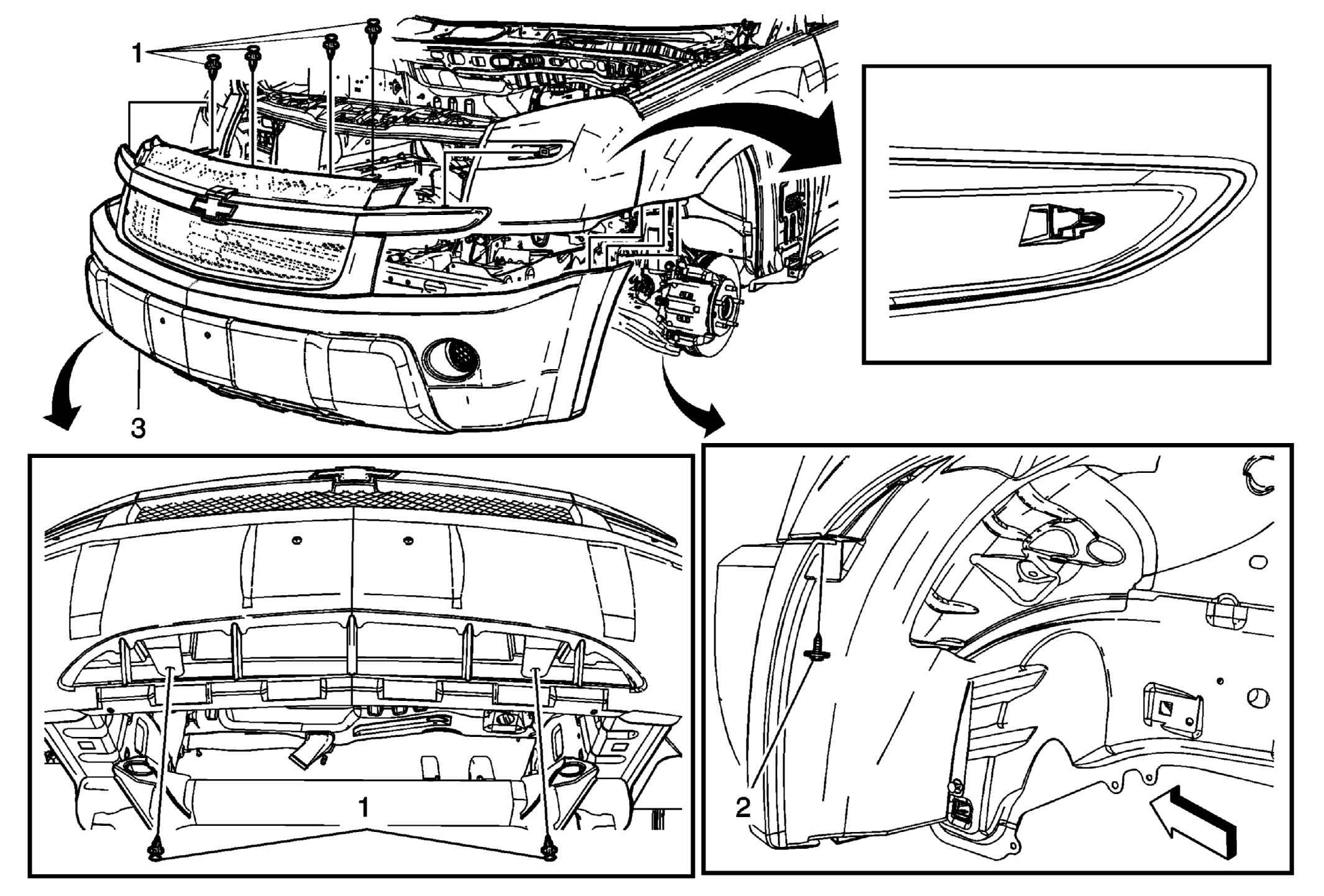

Fig 1: View Of Front Bumper Fascia Components (Equinox)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front bumper air deflector. Refer to Front Bumper Fascia Air Deflector Replacement (Equinox)  or Front Bumper Fascia Air Deflector Replacement (SS) .
1	Plastic Push-In Retainer (Qty: 6)
2	Fascia to Fender Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
