Front Bumper Fascia Replacement (SS)

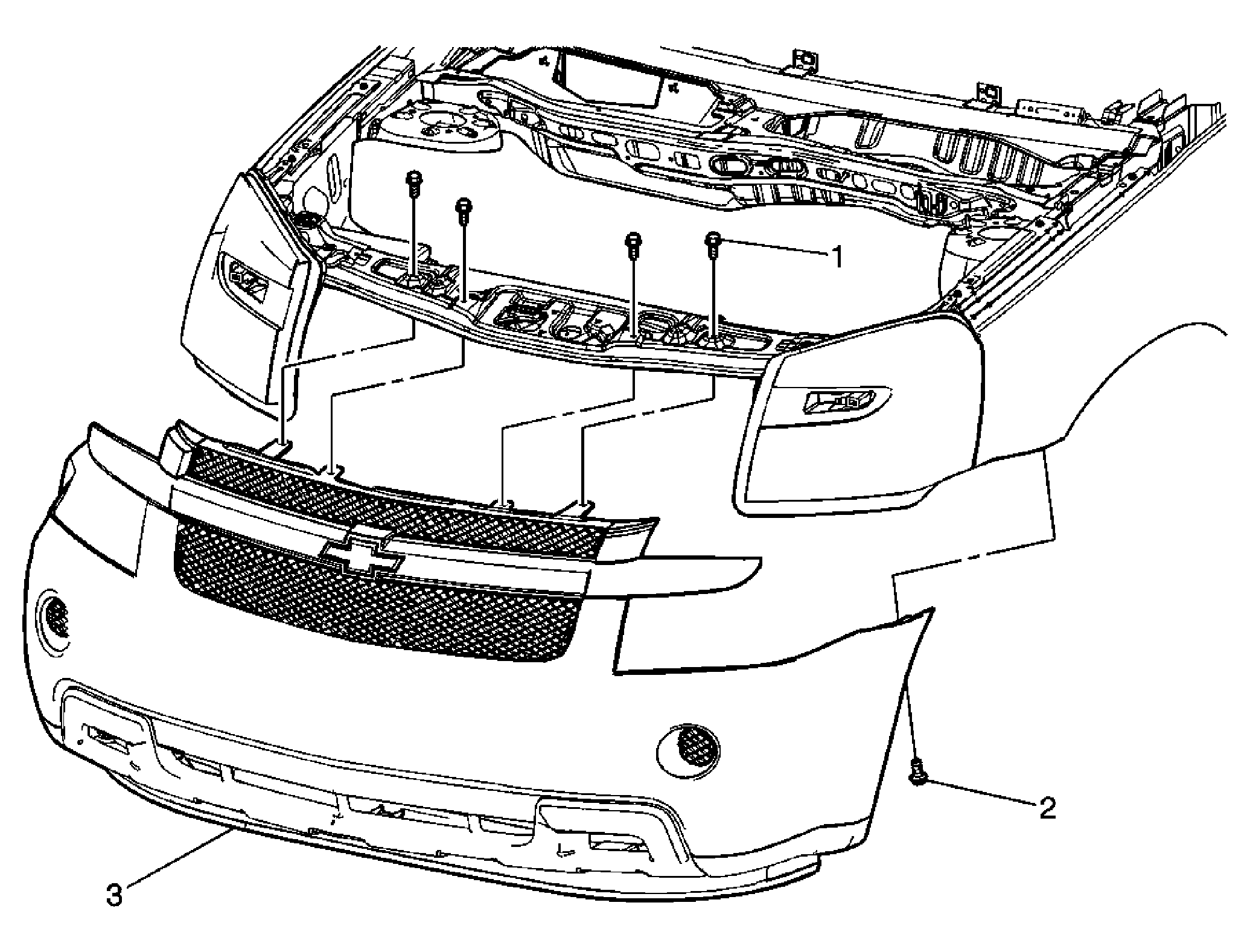

Fig 1: Identifying Front Bumper Fascia (SS)
GM2028976Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
  2. Remove the front bumper air deflector. Refer to Front Bumper Fascia Air Deflector Replacement (Equinox)  or Front Bumper Fascia Air Deflector Replacement (SS) .
1 Front Bumper Fascia Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  2 N.m (18 lb in)
2 Front Bumper Fascia Screw (Qty: 2)

Tighten:  2 N.m (18 lb in)
3 Front Bumper Fascia

Procedure

  1. Disconnect any electrical connectors.
  2. Transfer components as necessary.
