Removal Procedure

  1. Position the shift lever in PARK.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  3. Remove the front closeout panel. Refer to Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission) or Floor Panel Tunnel Panel Replacement - Front (Manual Transmission) .

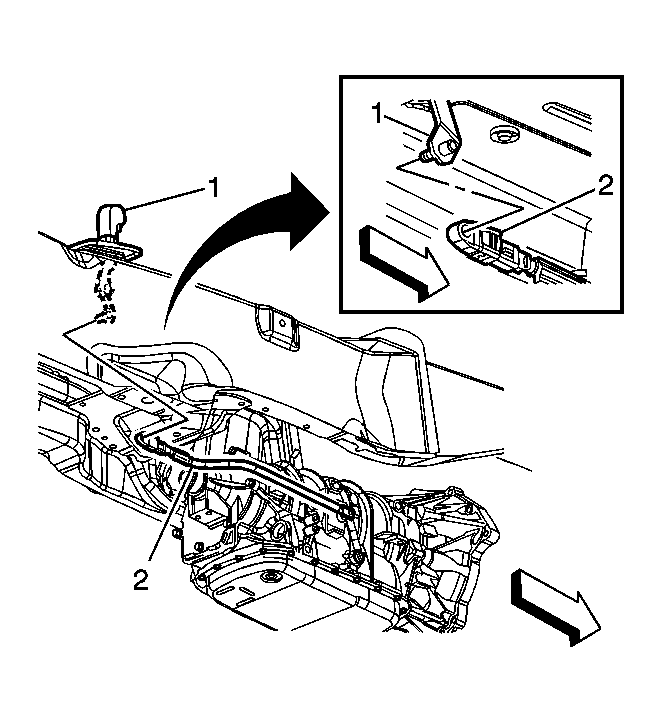

    4. Fig 1: Identifying Shift Control Assembly & Linkage
    GM1612912Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the shift control linkage (2) from the shift control assembly (1).

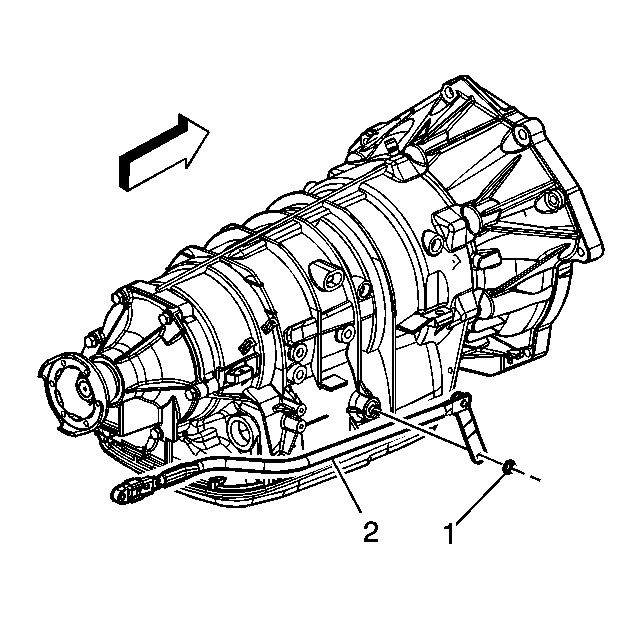

    5. Fig 2: Identifying Shift Control Linkage & Manual Shift Shaft Nut
    GM1612916Courtesy of GENERAL MOTORS CORP.
  5. Remove the manual shift shaft nut (1).
  6. Remove the shift control linkage (2) from the vehicle.
