Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission)

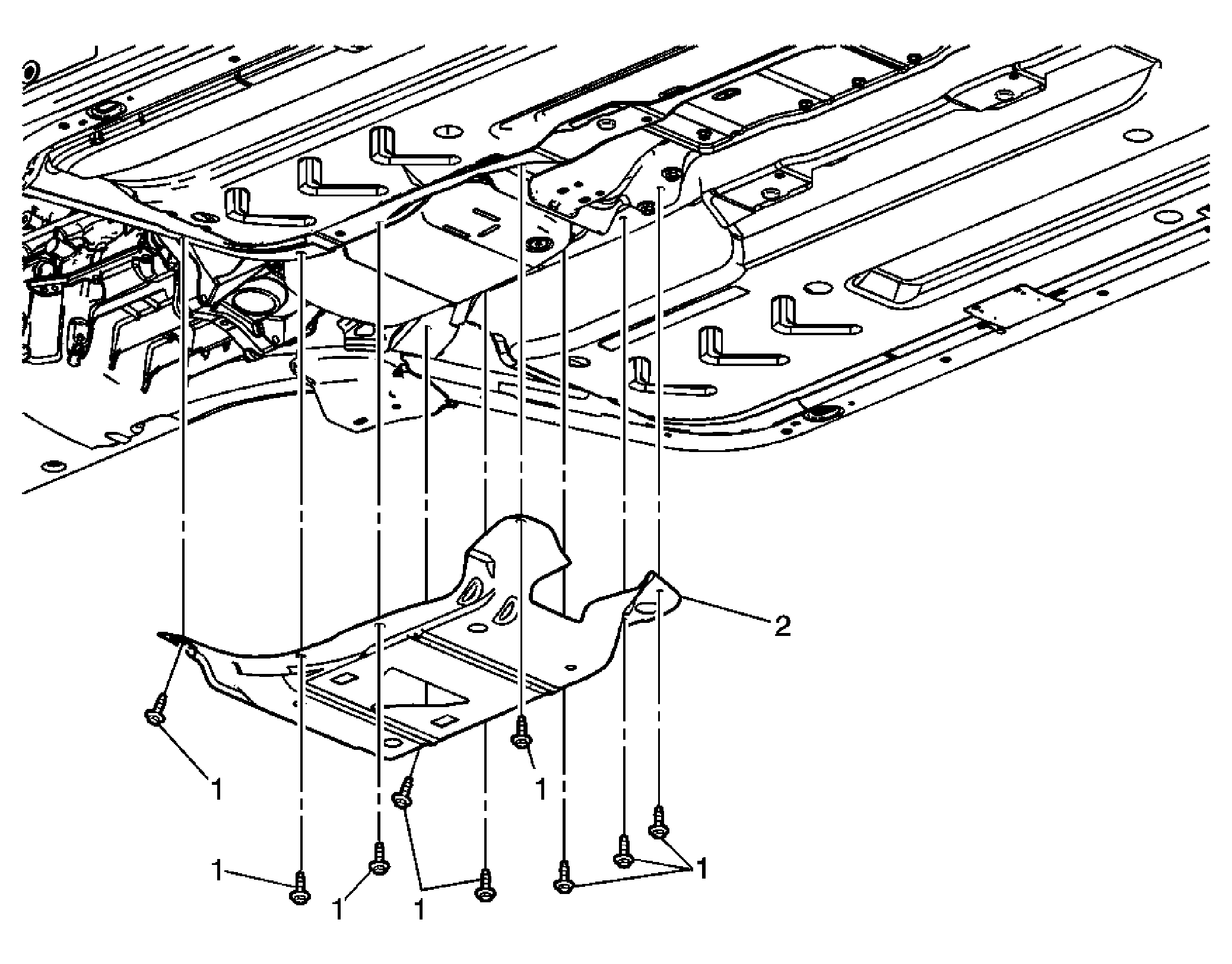

Fig 1: Identifying Floor Panel Tunnel Panel - Front (A/T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the exhaust system pipe. Refer to Exhaust Muffler Replacement (LNF) or Exhaust Muffler Replacement (LE5) .
1	Front Tunnel Panel Bolt (Qty: 9) CAUTION: Refer to Fastener Caution . Tighten: 9 N.m (80 lb in)
2	Front Tunnel Panel

Callout

Component Name

Preliminary Procedures

Front Tunnel Panel Bolt (Qty: 9)

CAUTION: Refer to Fastener Caution .

Tighten: 9 N.m (80 lb in)

Front Tunnel Panel
