Transmission Support Replacement (Manual Transmission)

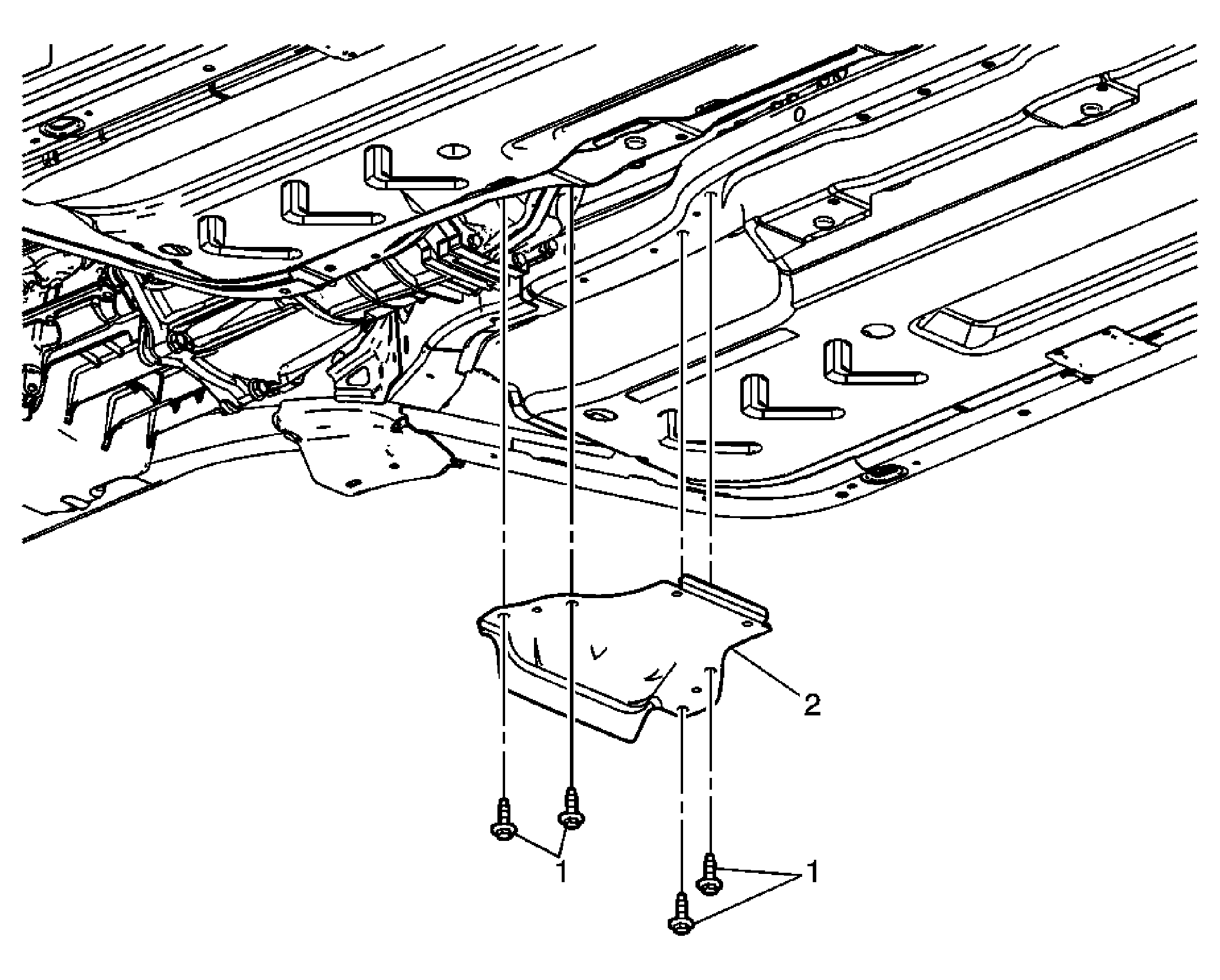

Fig 1: Identifying Transmission Support (Manual Transmission)
GM1861336Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Raise the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the front floor closeout panel. Refer to Floor Panel Tunnel Panel Replacement - Front (Automatic Transmission)  or Floor Panel Tunnel Panel Replacement - Front (Manual Transmission) .
  3. Remove the floor panel tunnel rear panel. Refer to Floor Panel Tunnel Panel Replacement - Rear .
  4. Support the transmission.
1 Transmission Support Bolt (Qty: 4)
CAUTION: Refer to Fastener Caution .

Tighten:  58 N.m (43 lb ft)
2 Transmission Support
