Floor Panel Tunnel Panel Replacement - Rear

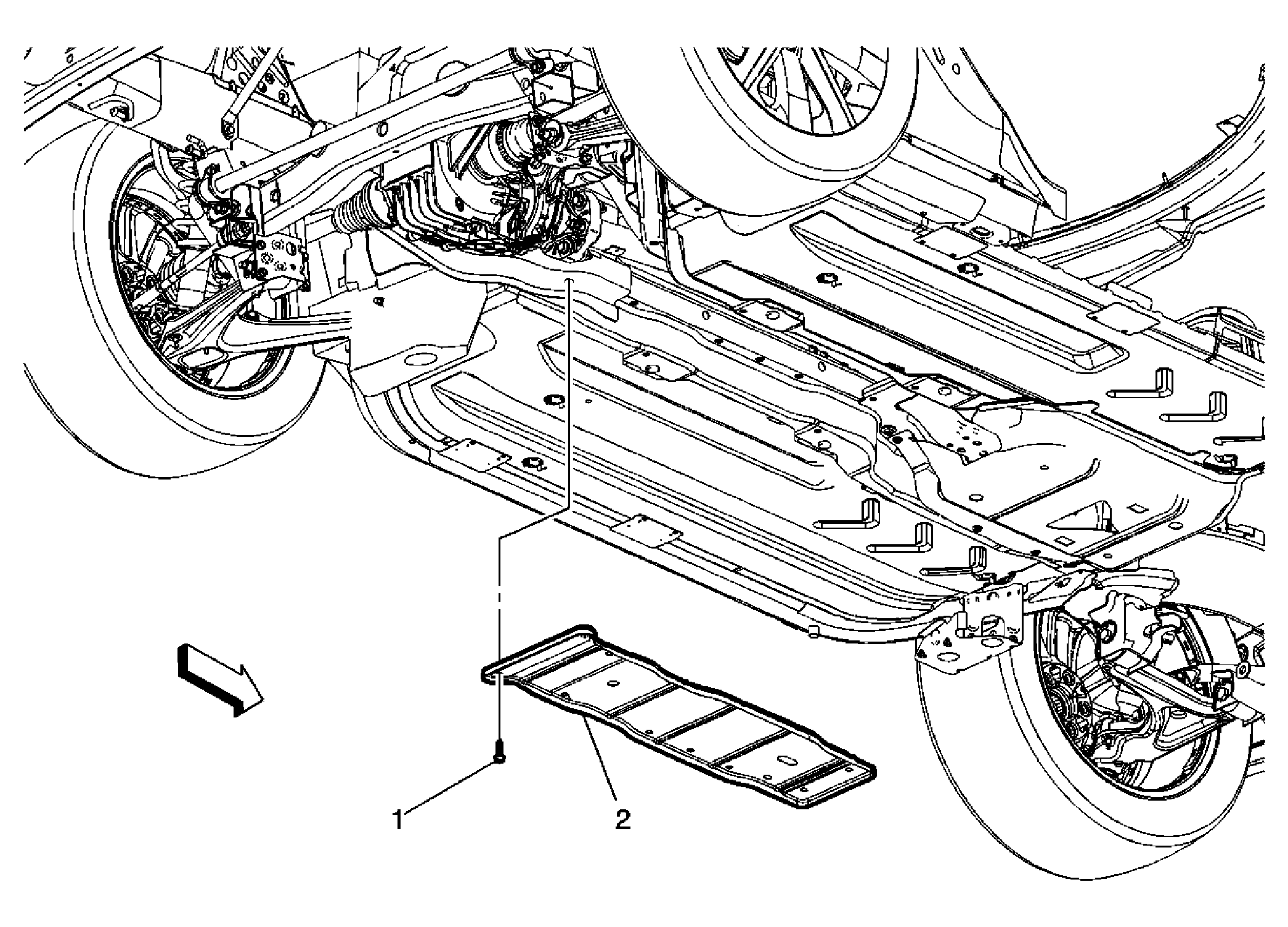

Fig 1: Identifying Floor Panel Tunnel Panel - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the muffler. Refer to Exhaust Muffler Replacement (LNF) or Exhaust Muffler Replacement (LE5) .
1	Floor Panel Tunnel Rear Panel Bolt (Qty: 12) CAUTION: Refer to Fastener Caution . Tighten: 15 N.m (11 lb ft)
2	Floor Panel Tunnel Rear Panel

Callout

Component Name

Preliminary Procedures

Floor Panel Tunnel Rear Panel Bolt (Qty: 12)

CAUTION: Refer to Fastener Caution .

Tighten: 15 N.m (11 lb ft)

Floor Panel Tunnel Rear Panel
