Rear Bumper Fascia Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

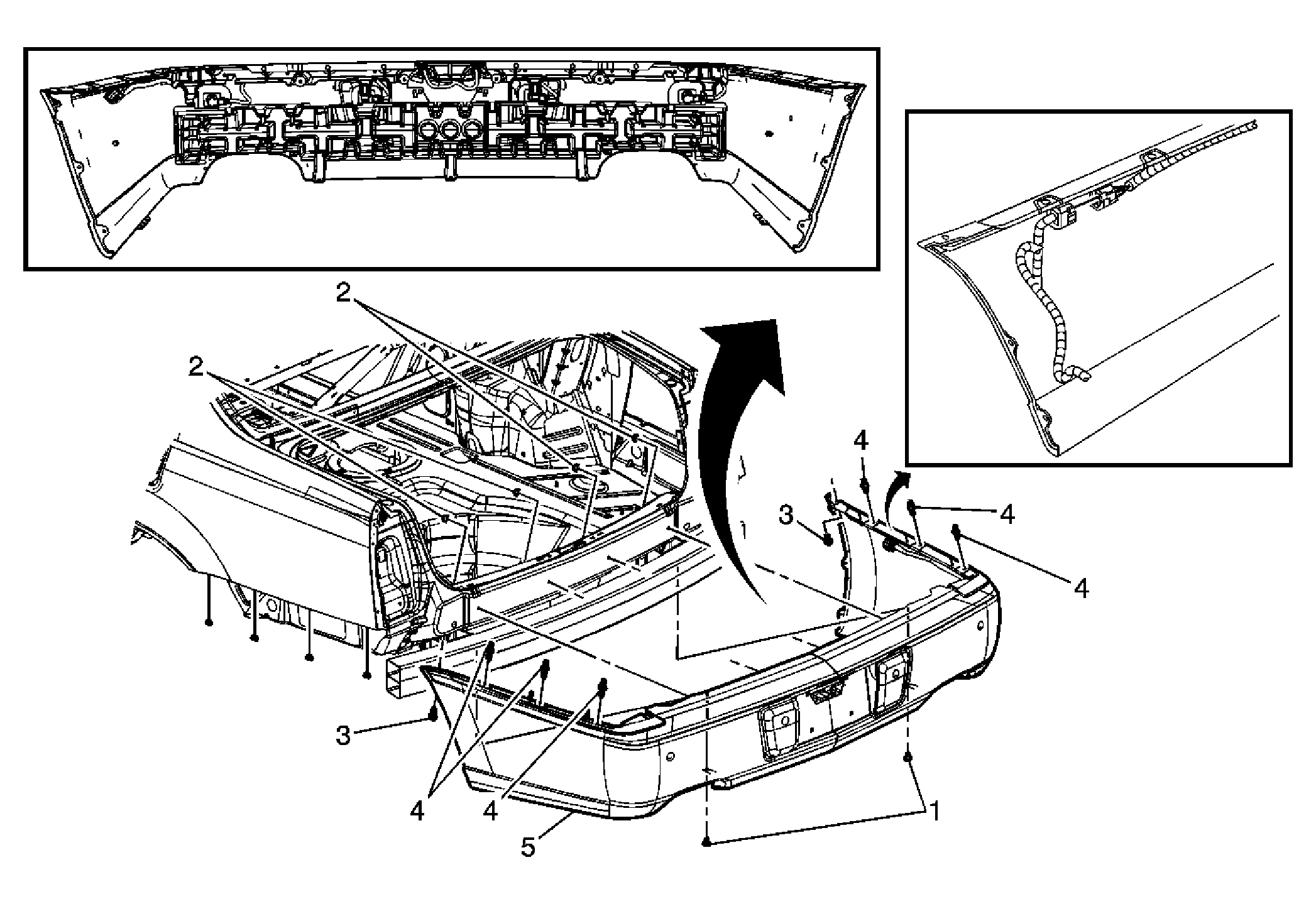

Fig 1: Fascia Replacement - Rear Bumper

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . Remove rear wheel liners. Refer to Rear Wheelhouse Panel Liner Replacement .
1	Rear Fascia Push Pin Retainer (Qty: 2)
2	Rear Fascia Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
3	Rear Fascia Bolt (Qty: 2)
4	Rear Fascia Bolt (Qty: 6)
5	Rear Fascia Tip: Energy absorber and fascia are removed together. Cannot be separated on vehicle. Reposition the wire harness. Disconnect the electrical connectors. Transfer components as necessary.
