Rear Compartment Sill Trim Plate Replacement
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

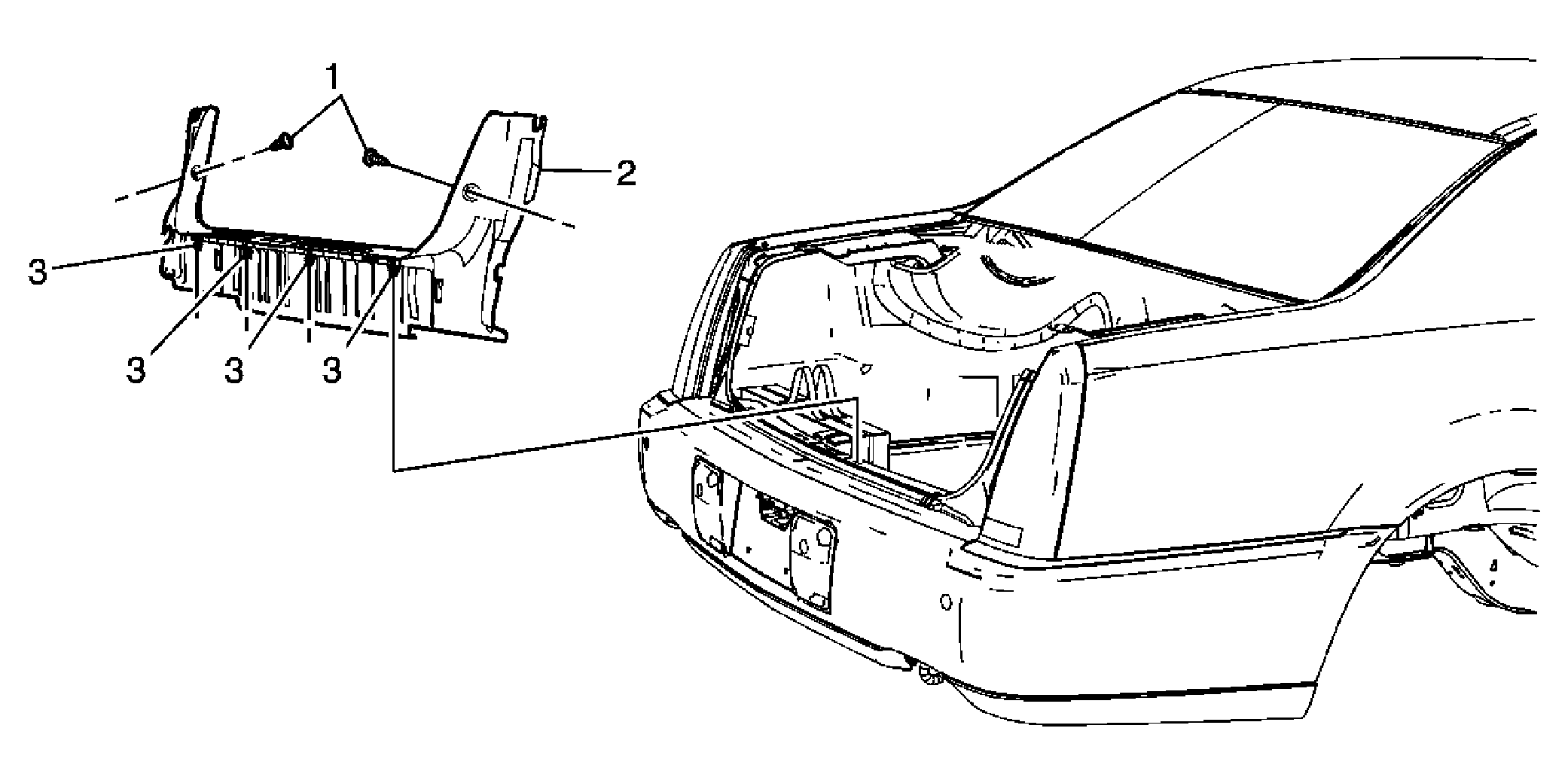

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Partially remove the rear compartment opening weatherstrip. Refer to Rear Compartment Lid Weatherstrip Replacement . |
|
| 1 | Rear Compartment Sill Trim Plate Assembly Retainers (Qty: 2) |
| 2 | Rear Compartment Sill Trim Plate Assembly |
| 3 | Rear Compartment Sill Trim Plate Assembly Retainers (Qty: 4) |
