Rear Wheelhouse Panel Liner Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

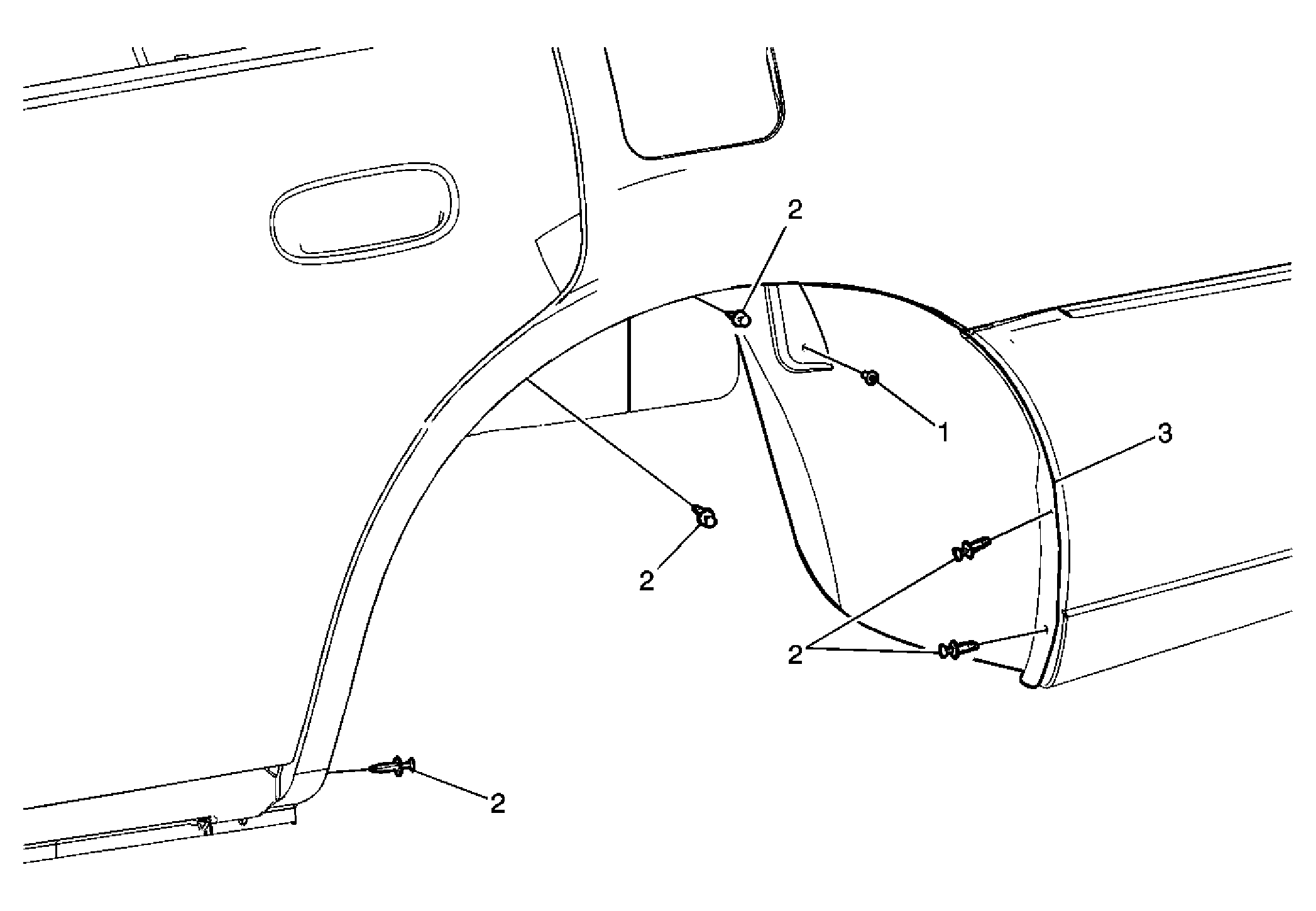

Fig 1: Wheelhouse Liner Panel Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove rear wheel. Refer to Tire and Wheel Removal and Installation .
1	Rear Wheelhouse Liner Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (89 lb in)
2	Rear Wheelhouse Liner Retainers (Qty: 5)
3	Rear Wheelhouse Liner
