Center Air Outlet Duct Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

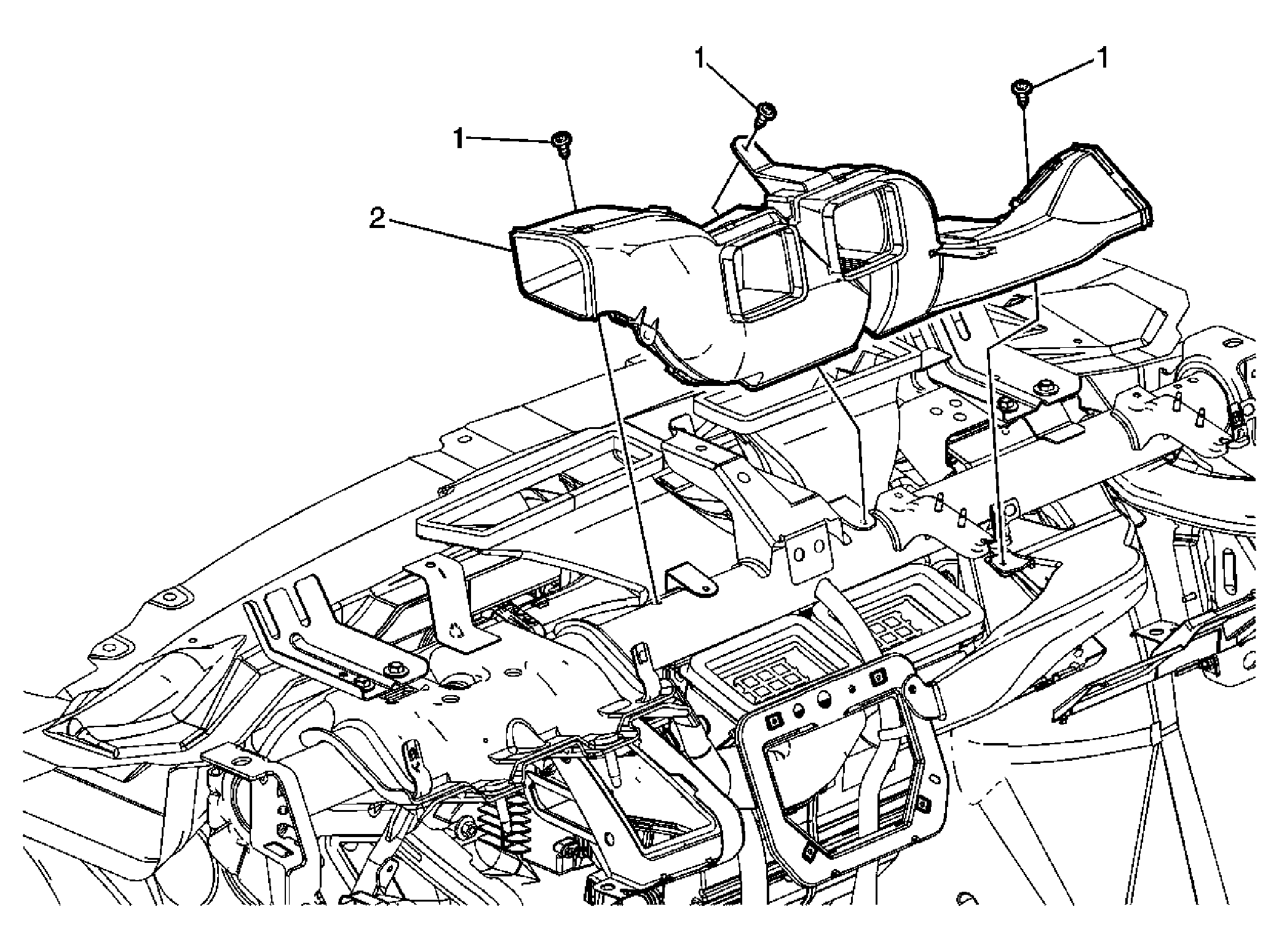

Fig 1: Removing/Installing Center Air Outlet Duct

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement . Remove the upper right air outlet duct. Refer to Instrument Panel Outer Air Outlet Upper Duct Replacement - Right Side . Remove the upper left air outlet duct. Refer to Instrument Panel Outer Air Outlet Upper Duct Replacement - Left Side . Remove the right hand floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
1	Instrument Panel Center Air Outlet Duct Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 1 N.m (9 lb in)
2	Instrument Panel Center Air Outlet Duct

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement .
Remove the upper right air outlet duct. Refer to Instrument Panel Outer Air Outlet Upper Duct Replacement - Right Side .
Remove the upper left air outlet duct. Refer to Instrument Panel Outer Air Outlet Upper Duct Replacement - Left Side .
Remove the right hand floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .

Instrument Panel Center Air Outlet Duct Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 1 N.m (9 lb in)

Instrument Panel Center Air Outlet Duct
