Instrument Panel Outer Air Outlet Upper Duct Replacement - Right Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

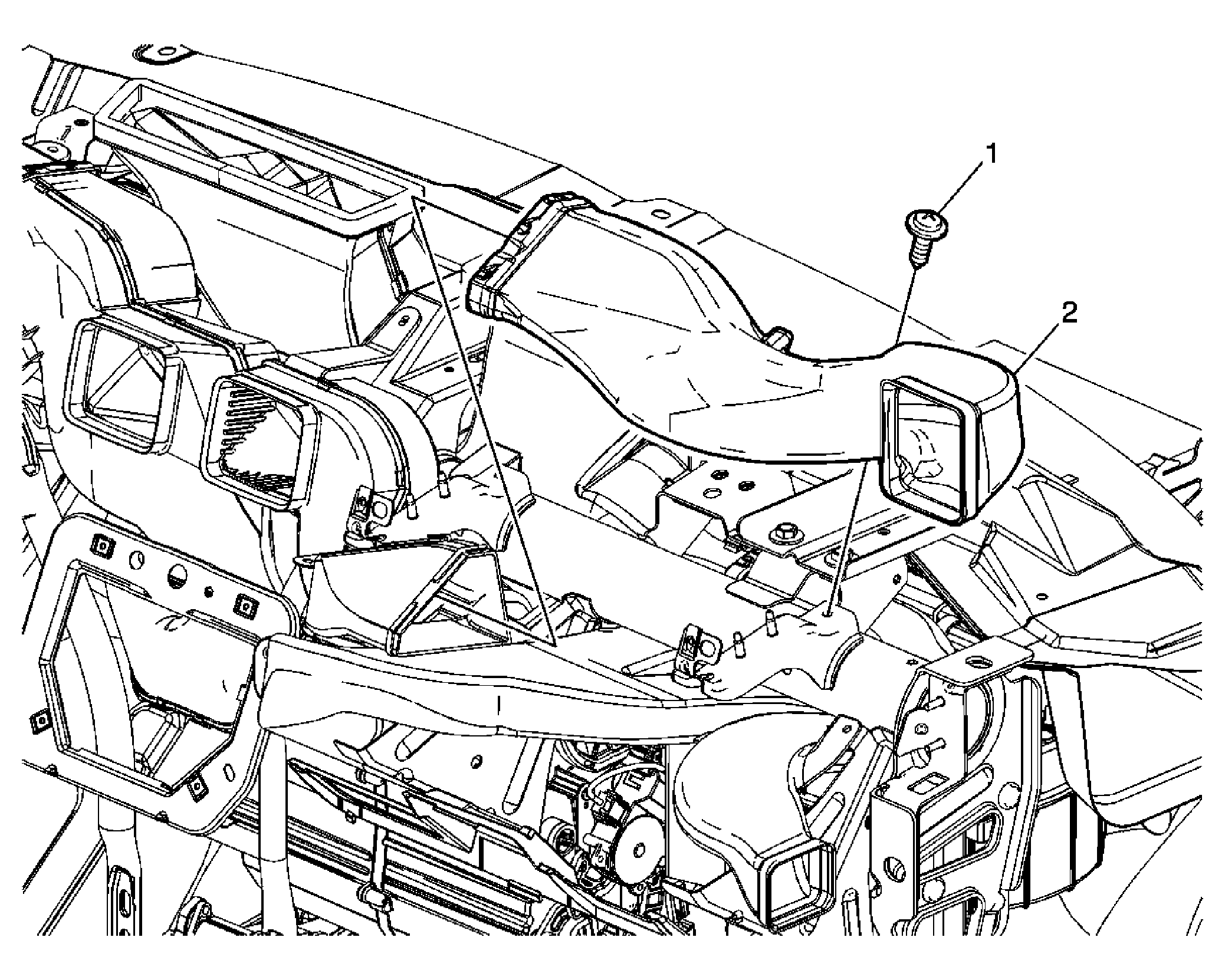

Fig 1: Air Outlet Duct - Instrument Panel (I/P) - Upper Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement .
1	Air Distributor Outer Duct - Right, Screw CAUTION: Refer to Fastener Caution . Tighten: 1 N.m (9 lb in)
2	Air Distributor Outer Duct - Right

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement .

Air Distributor Outer Duct - Right, Screw

CAUTION: Refer to Fastener Caution .

Tighten: 1 N.m (9 lb in)

Air Distributor Outer Duct - Right
