Floor Air Outlet Duct Replacement - Right Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

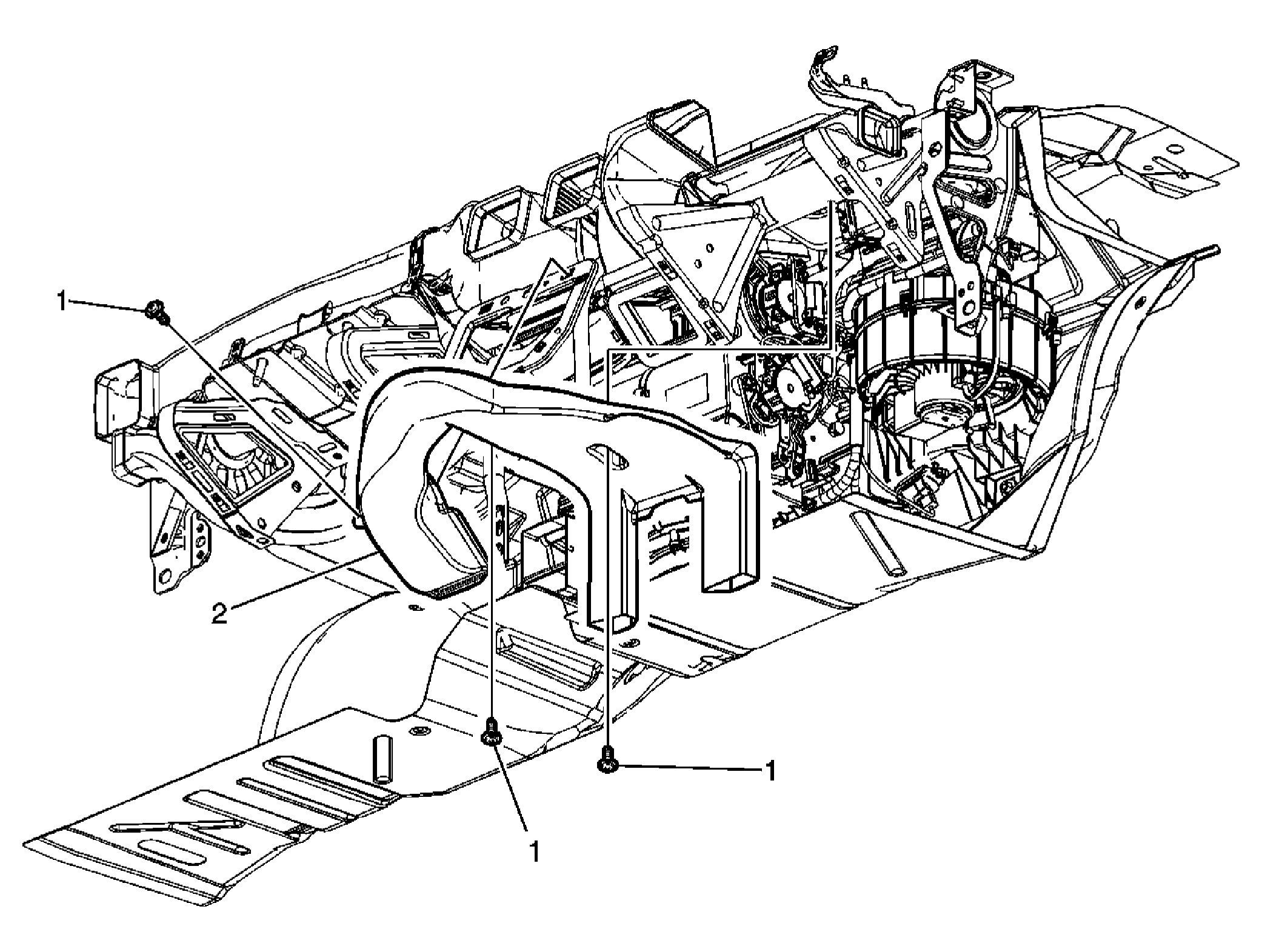

Fig 1: Removing/Installing Floor Air Outlet Duct - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement . Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement . Remove the center air outlet duct. Refer to Center Air Outlet Duct Replacement .
1	Floor Air Outlet Duct Screws (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (14 lb in)
2	Floor Air Outlet Duct

Callout

Component Name

Preliminary Procedure

Remove the instrument panel lower trim panel. Refer to Instrument Panel Lower Trim Panel Replacement .
Remove the inflatable restraint instrument panel module. Refer to Instrument Panel Inflatable Restraint Module Replacement .
Remove the center air outlet duct. Refer to Center Air Outlet Duct Replacement .

Floor Air Outlet Duct Screws (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (14 lb in)

Floor Air Outlet Duct
