Auxiliary Air Distributor Duct Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

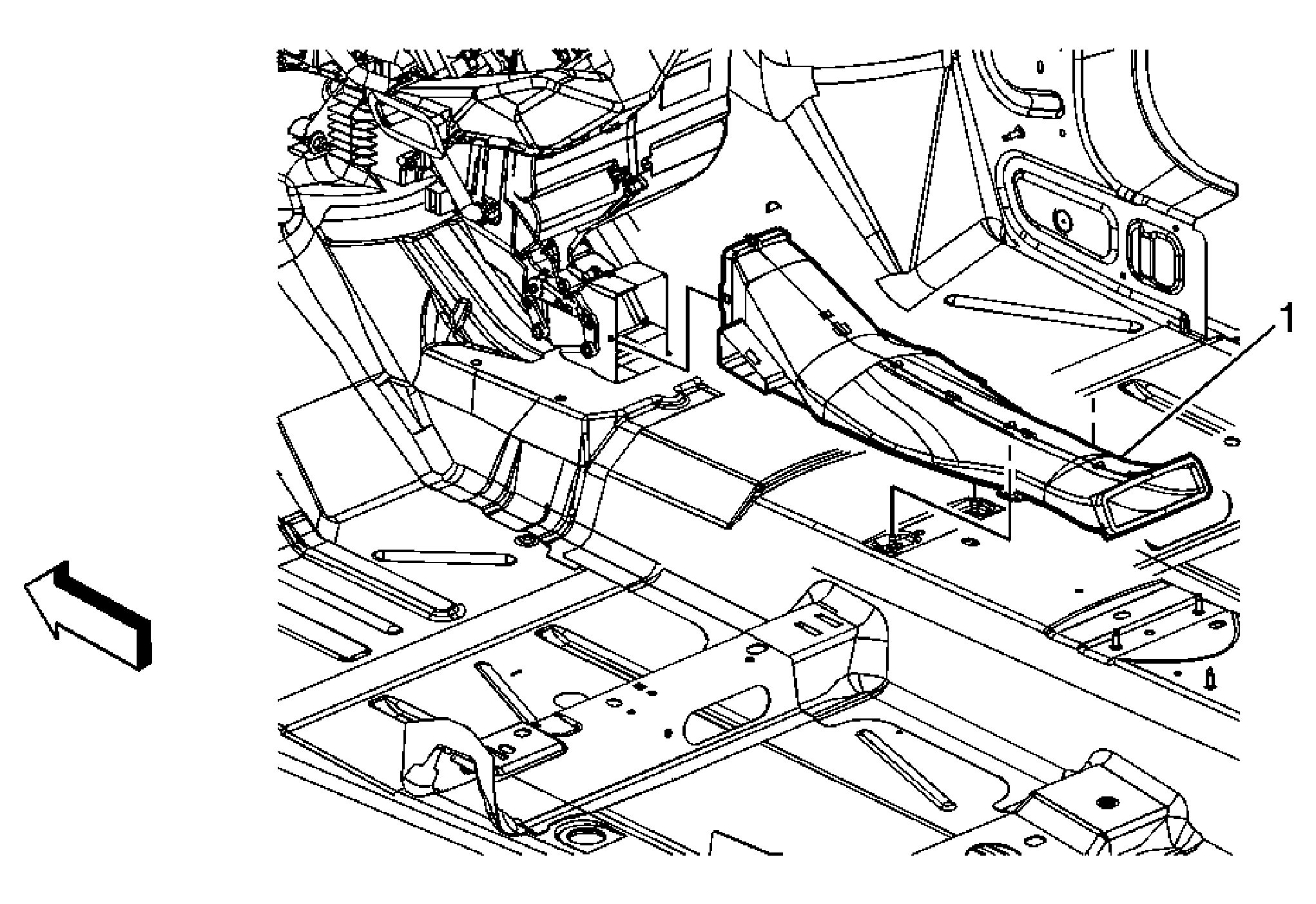

Fig 1: Air Distribution Ducts - Auxiliary

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front carpet. Refer to Front Floor Panel Carpet Replacement . Remove the right rear air outlet duct. Refer to Floor Rear Air Outlet Duct Replacement - Right Side . Remove the left rear air outlet duct. Refer to Floor Rear Air Outlet Duct Replacement - Left Side .
1	Rear Air Floor Outlet Duct

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front carpet. Refer to Front Floor Panel Carpet Replacement .
Remove the right rear air outlet duct. Refer to Floor Rear Air Outlet Duct Replacement - Right Side .
Remove the left rear air outlet duct. Refer to Floor Rear Air Outlet Duct Replacement - Left Side .

Rear Air Floor Outlet Duct
