Floor Rear Air Outlet Duct Replacement - Left Side

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

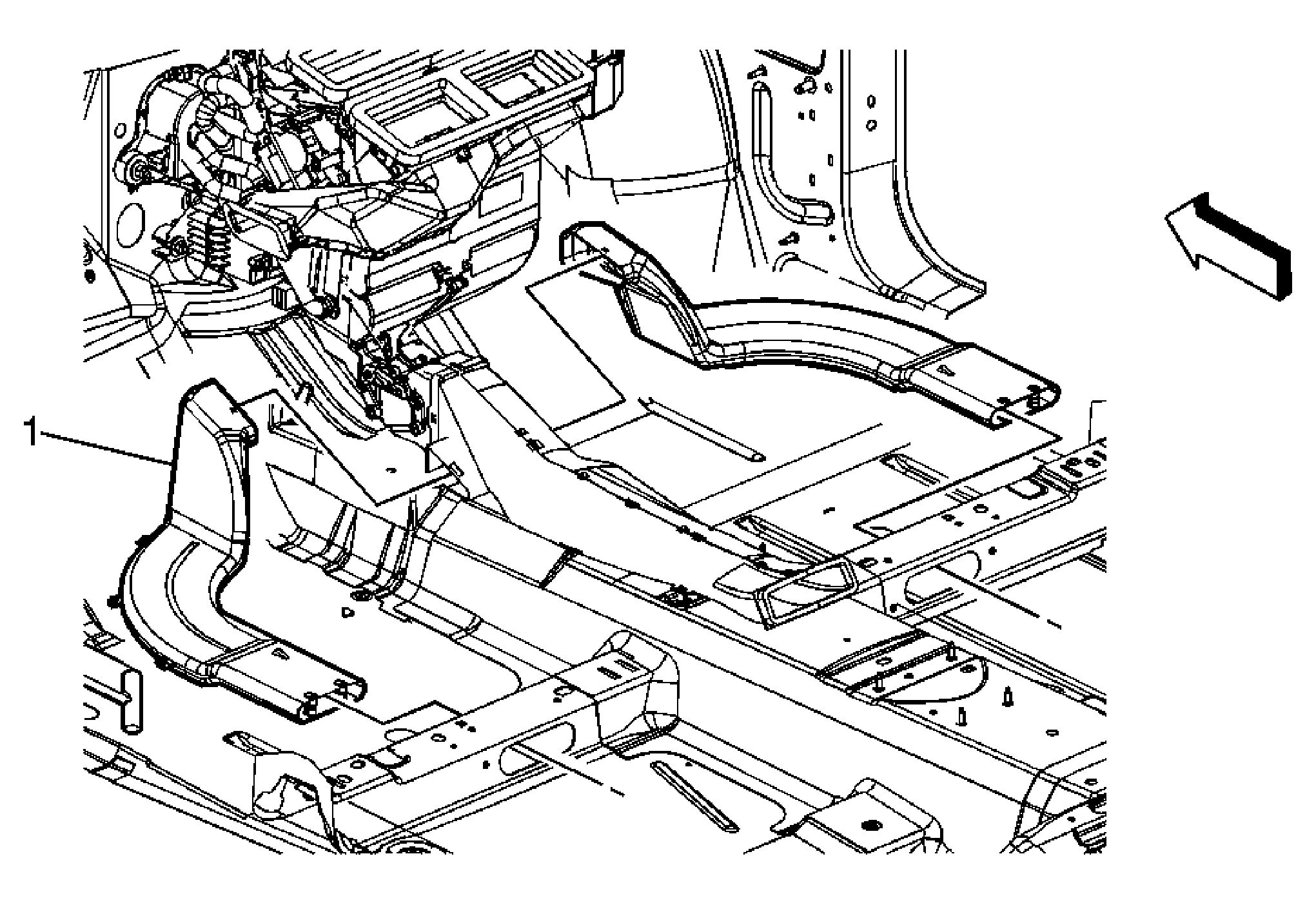

Fig 1: Removing/Installing Rear Floor Air Outlet Duct - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the driver front seat. Refer to Driver or Passenger Seat Replacement . Reposition the front carpet to access the left rear floor duct.
1	Left Rear Air Outlet Duct

Callout

Component Name

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the driver front seat. Refer to Driver or Passenger Seat Replacement .
Reposition the front carpet to access the left rear floor duct.

Left Rear Air Outlet Duct
