Instrument Cluster Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

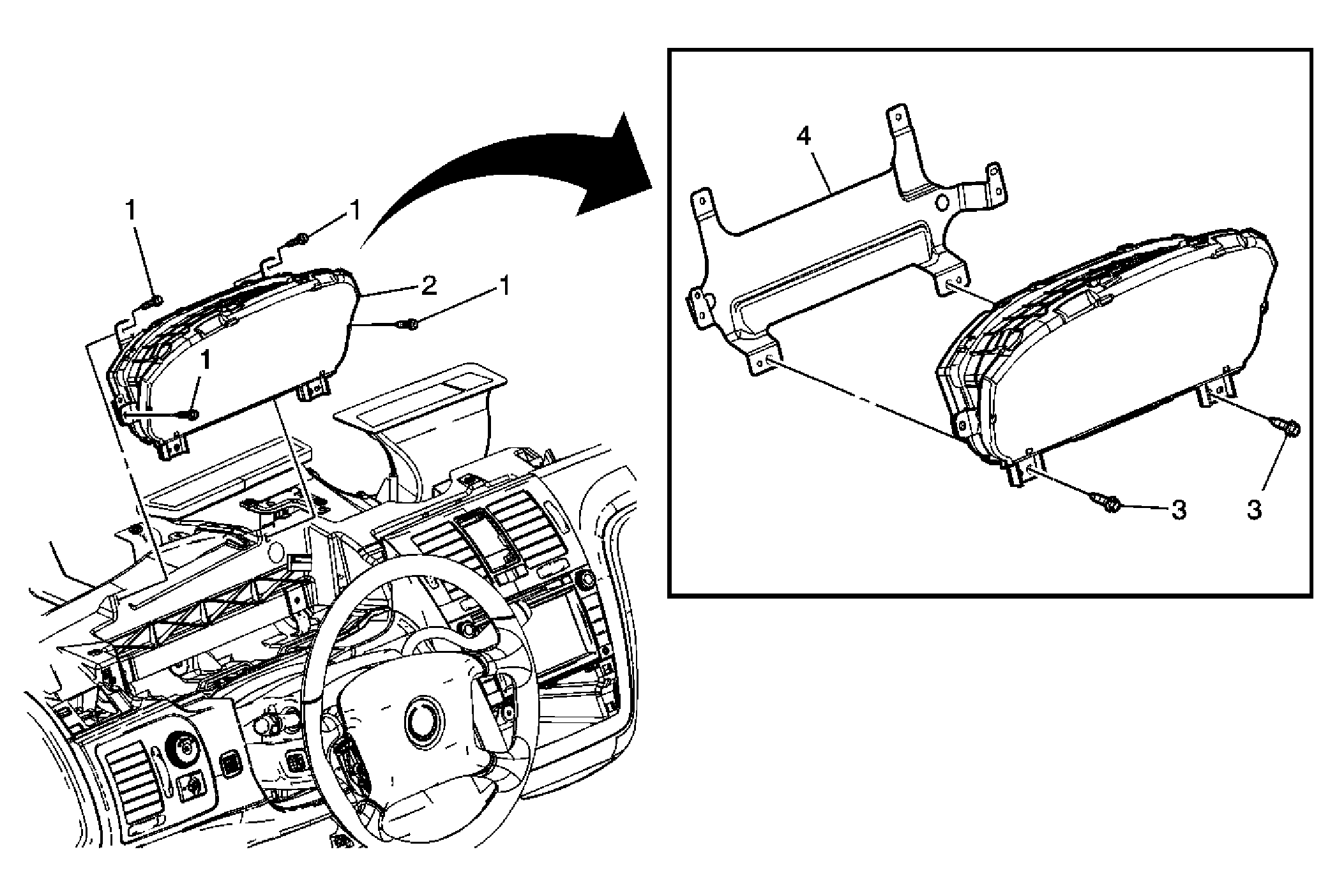

Fig 1: Instrument Panel Cluster (IPC)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel cluster trim bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement . Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Pad Replacement . Refer to Control Module References for replacement and setup information.
1	Instrument Panel Cluster Assembly Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 2 N.m (18 lb in)
2	Instrument Panel Cluster Assembly Tip: Disconnect the electrical connector.
3	Instrument Panel Cluster Assembly Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
4	Instrument Panel Cluster Bracket
