Rear Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

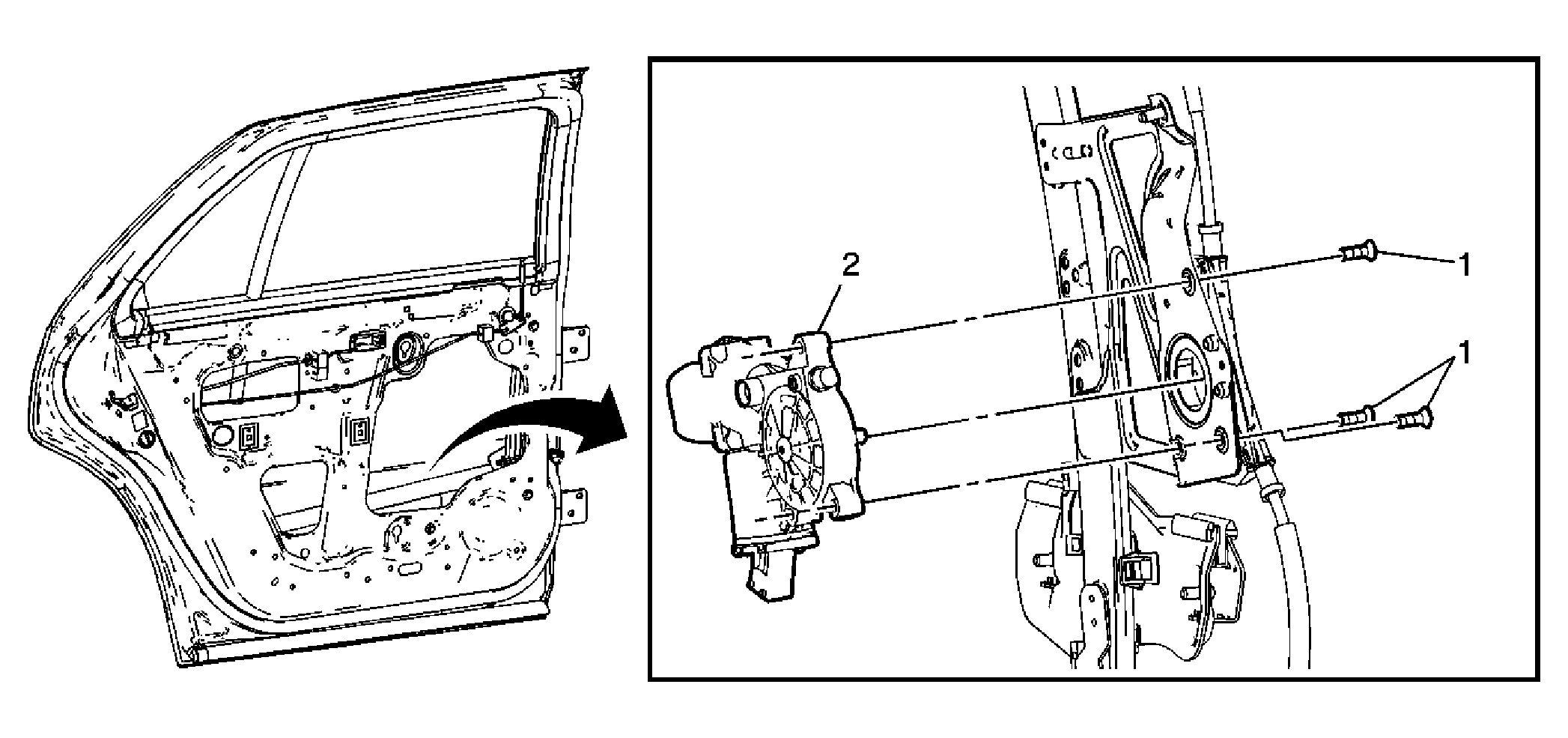

Fig 1: Window Regulator Motor Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position the rear door window approximately half way down in the door. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement . Tape the window to the door frame to prevent it from moving. Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement . Refer to Control Module References for replacement and setup information.
1	Rear Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 4.6 N.m (41 lb in)
2	Rear Door Window Regulator Motor Tip: Disconnect the electrical connector from the window regulator motor.

Callout

Component Name

Preliminary Procedures

Position the rear door window approximately half way down in the door.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Tape the window to the door frame to prevent it from moving.
Remove the rear door window regulator. Refer to Rear Side Door Window Regulator Replacement .
Refer to Control Module References for replacement and setup information.

Rear Door Window Regulator Motor Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 4.6 N.m (41 lb in)

Rear Door Window Regulator Motor
Tip: Disconnect the electrical connector from the window regulator motor.
