Rear Side Door Window Regulator Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

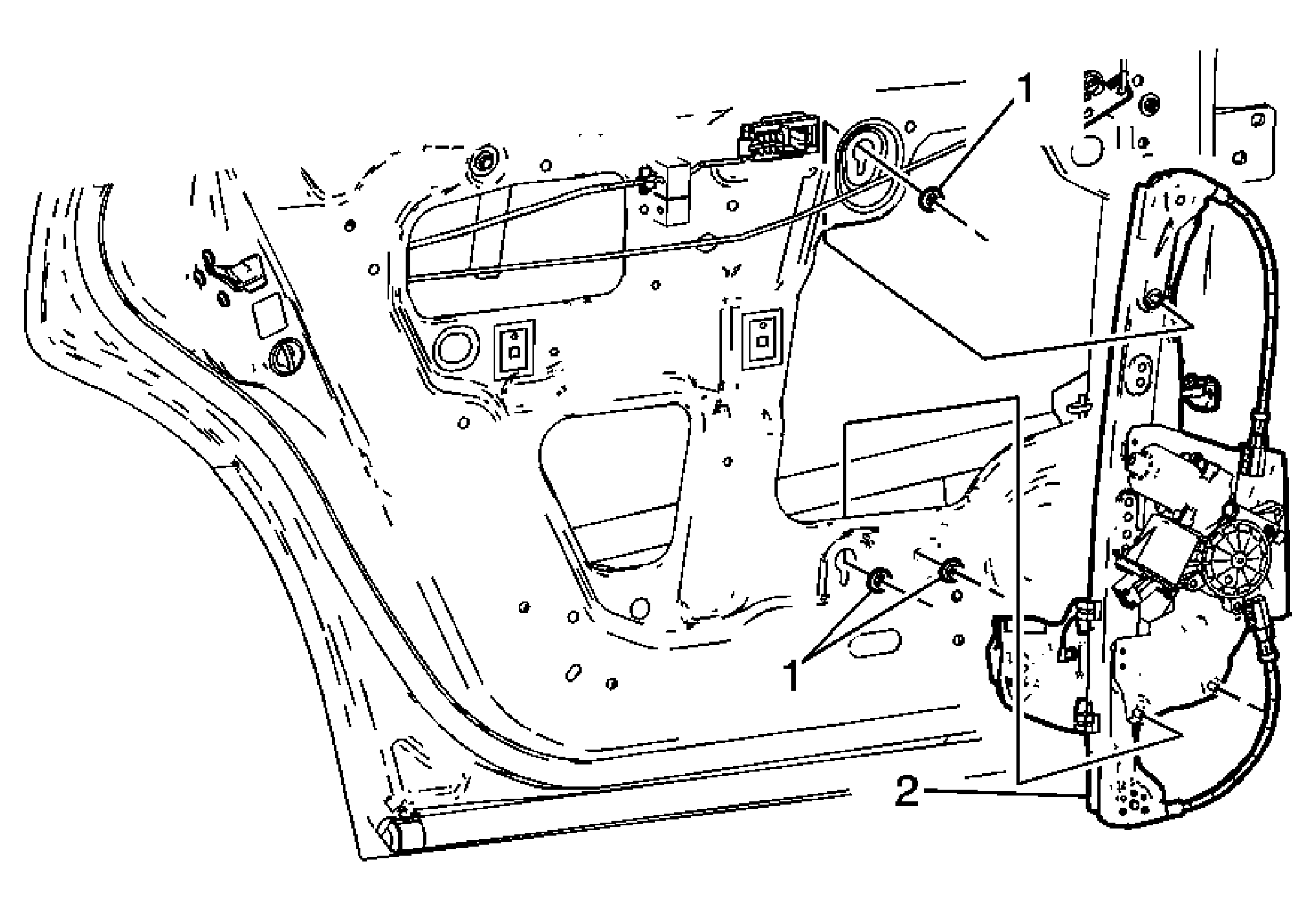

Fig 1: Window Regulator Replacement - Rear Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position the rear door window approximately half way down in the door. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement . Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement . Tape the window to the door frame to prevent it from moving.
1	Rear Door Window Regulator Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tip: Loosen the window to regulator bolts. Release the window regulator from the window and door. Tighten: 9 N.m (80 lb in)
2	Rear Door Window Regulator Tip: Disconnect the electrical connector from the regulator.

Callout

Component Name

Preliminary Procedures

Position the rear door window approximately half way down in the door.
Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .
Tape the window to the door frame to prevent it from moving.

Rear Door Window Regulator Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tip:

Loosen the window to regulator bolts.
Release the window regulator from the window and door.

Tighten: 9 N.m (80 lb in)

Rear Door Window Regulator
Tip: Disconnect the electrical connector from the regulator.
