Rear Side Door Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

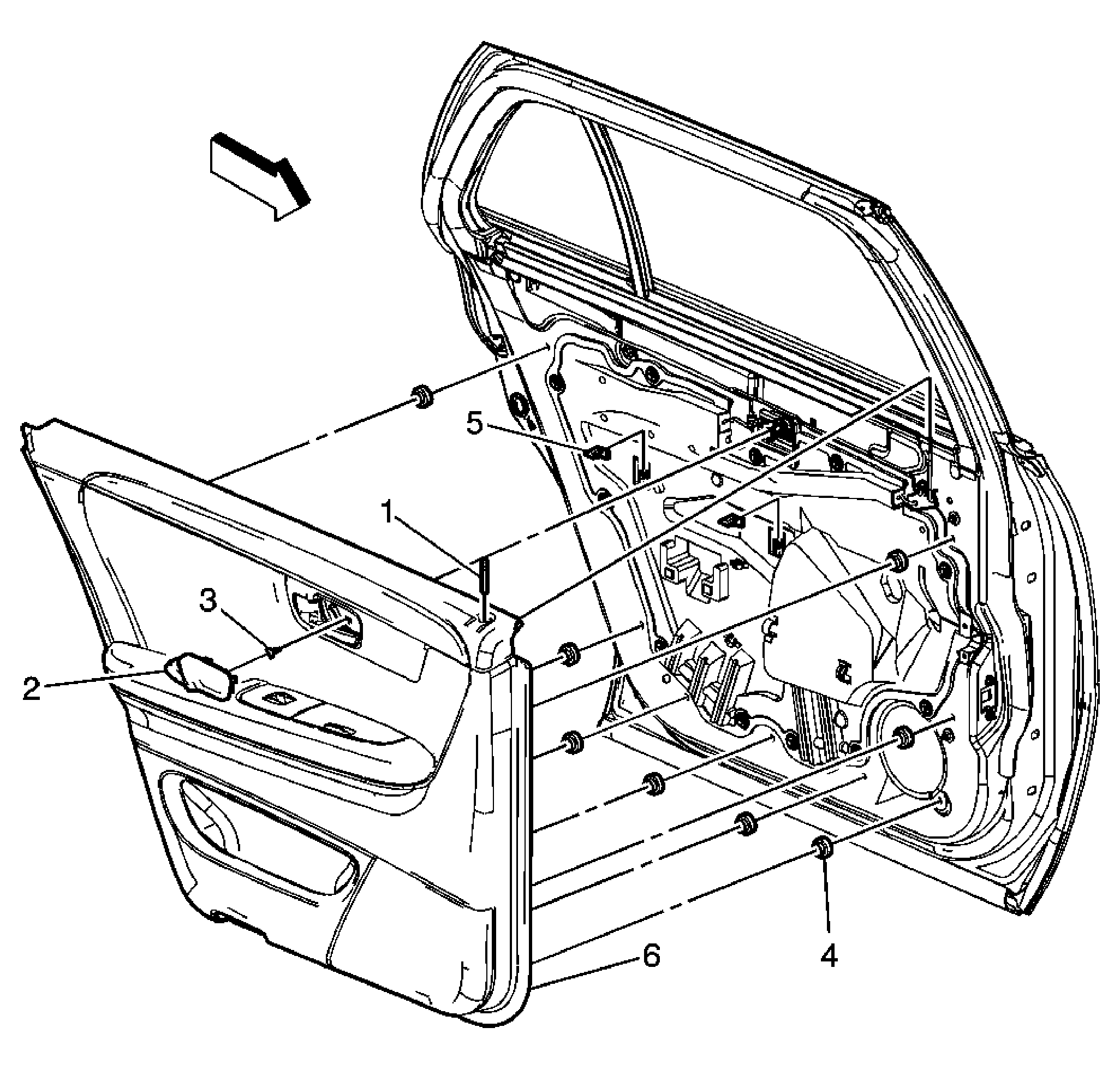

Fig 1: Rear Side Door Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Locking Rod Knob
2	Rear Side Door Pull Handle Plate
3	Rear Side Door Pull Handle Screw CAUTION: Refer to Fastener Caution . Tighten: 2.5 N.m (22 lb in)
4	Rear Side Door Trim Panel Retainer (Qty: 8)
5	Rear Side Door Armrest Retainer Clip (Qty: 2)
6	Rear Side Door Trim Panel Assembly Tip: Use a J 38778 Door Trim Clip Remover to aid in the removal of the door trim panel. After releasing all the retainers along the outer perimeter of the door trim panel, hold the panel away from the door and lift up to disengage the 2 clips that anchor the armrest into the door sheet metal. Prior to re-installing door trim panel, re-attach the 2 armrest clips to door sheet metal. Disconnect the electrical connectors.
