Front Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

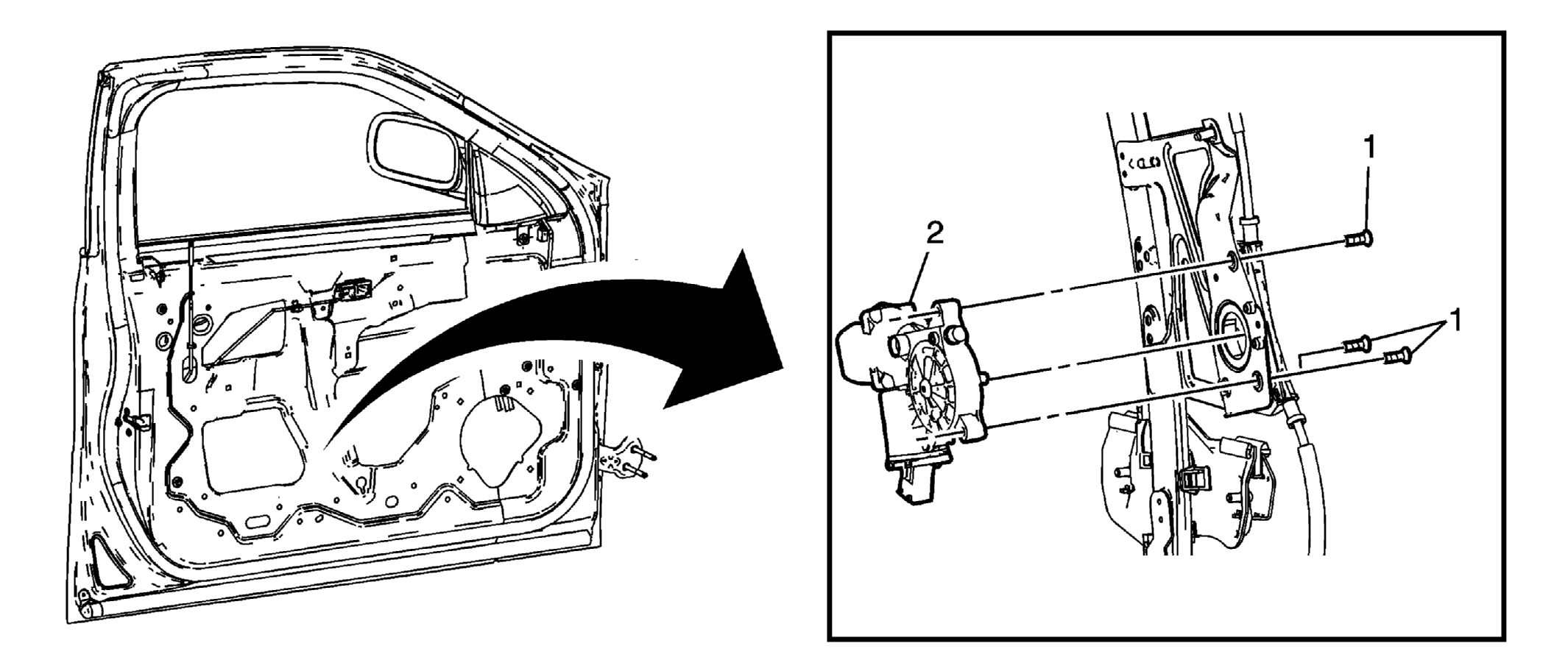

Fig 1: Exploded View Of Front Side Door Window Regulator Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Position window approximately half way down in the door. Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement . Tape the window to door frame to prevent it from moving. Remove the front door window regulator. Refer to Front Side Door Window Replacement . Refer to Control Module References for replacement and setup information.
1	Front Side Door Window Regulator Motor Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 4.6 N.m (41 lb in)
2	Front Side Door Window Regulator Motor Tip: Disconnect the electrical connector from the window regulator motor.

Callout

Component Name

Preliminary Procedures

Position window approximately half way down in the door.
Remove the interior trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
Tape the window to door frame to prevent it from moving.
Remove the front door window regulator. Refer to Front Side Door Window Replacement .
Refer to Control Module References for replacement and setup information.

Front Side Door Window Regulator Motor Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 4.6 N.m (41 lb in)

Front Side Door Window Regulator Motor
Tip: Disconnect the electrical connector from the window regulator motor.
