Rear Compartment Front Trim Panel Replacement

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

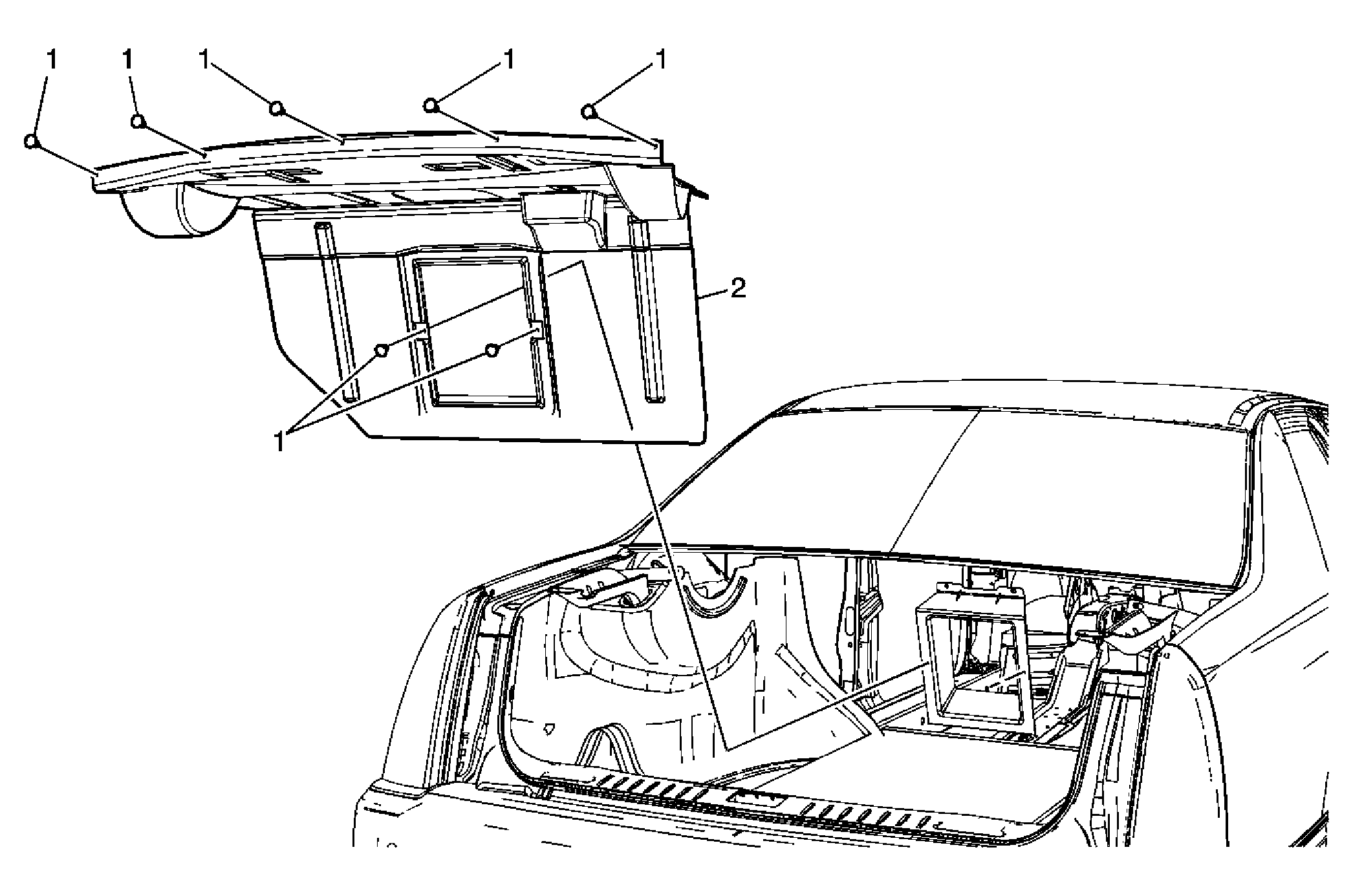

Fig 1: Compartment Front Trim Panel Replacement - Rear

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures: Remove the following trim panels: Remove the compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . Remove the LH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Left Side . Remove the RH rear compartment side trim. Refer to Rear Compartment Side Trim Replacement - Right Side . Remove the compartment front trim panel.
1	Rear Compartment Push-In Retainer (Qty: 7)
2	Compartment Front Trim Panel Front
