Rear Compartment Side Trim Replacement - Left Side
WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

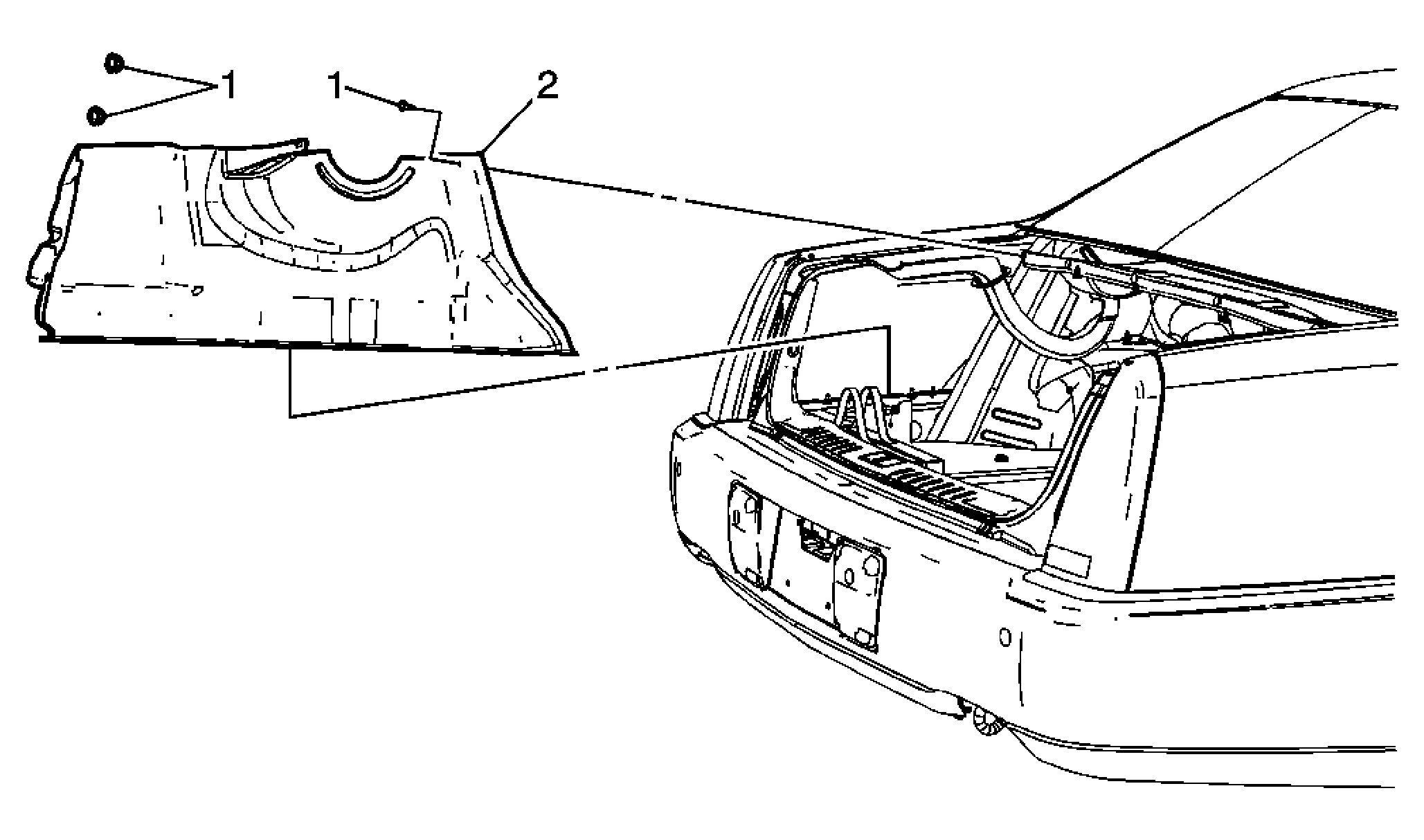

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications:
Refer to Fastener Tightening Specifications . Preliminary Procedure: Remove the rear compartment sill plate. Refer to Rear Compartment Sill Trim Plate Replacement . |
|
| 1 | Rear Compartment Trim Retainers (Qty: 3) |
| 2 | Rear Compartment Trim Left |
