Transmission Control Replacement

WARNING: This page is about a different variant/trim than selected.

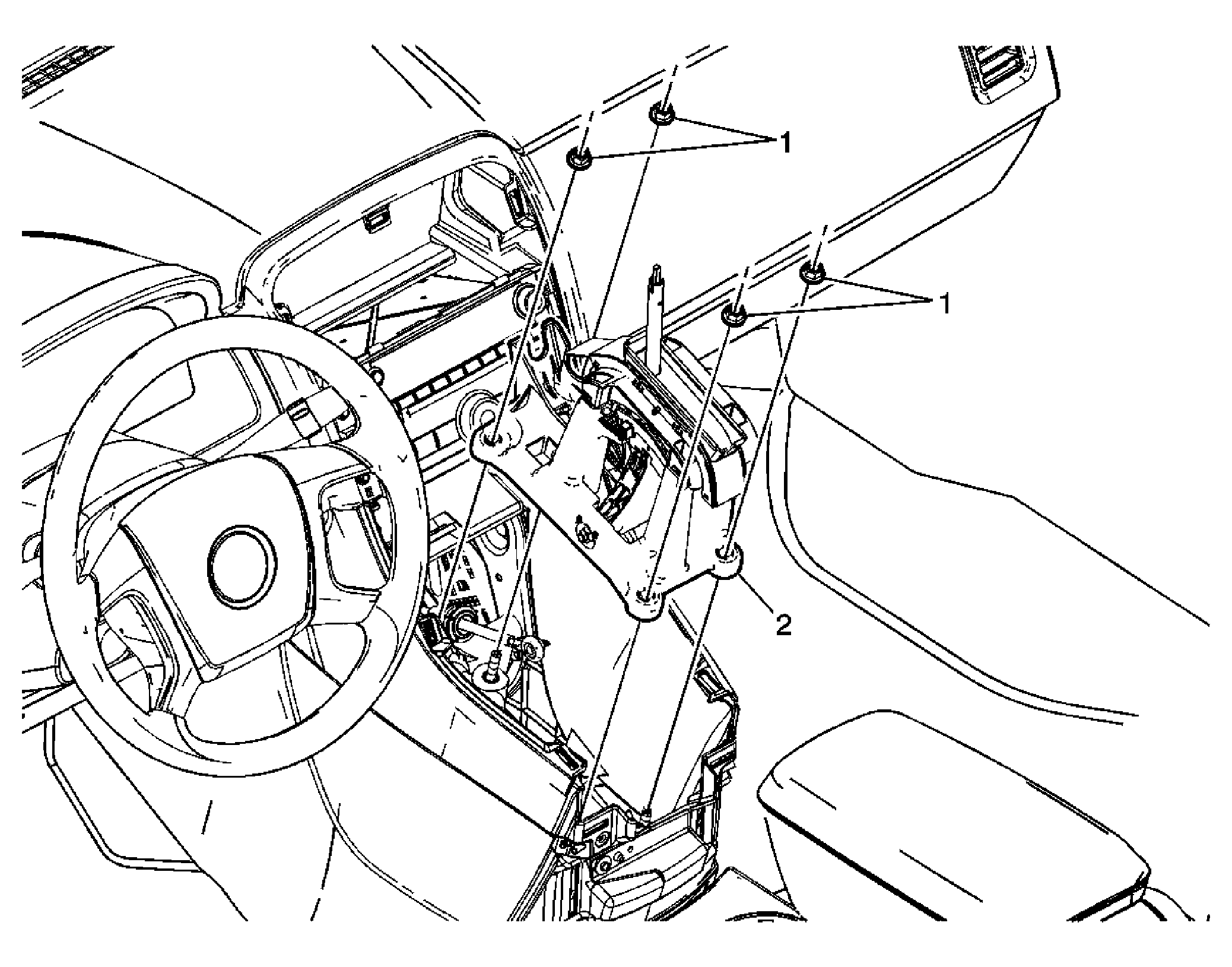

Fig 1: View Of Shift Control Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the shift control lever knob. Refer to Transmission Control Lever Knob Replacement . Remove the center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement . Remove the console trim plate. Refer to Console Trim Plate Replacement . Disconnect the shift control cable. Refer to Shift Control Cable Replacement . Disconnect the shift control electrical connector.
1	Shift Control Nut (Qty: 4) NOTE: Refer to Fastener Notice . Tighten: Tighten the nuts to 25 N.m (18 lb ft).
2	Shift Control

Callout

Component Name

Preliminary Procedures

Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling .
Remove the shift control lever knob. Refer to Transmission Control Lever Knob Replacement .
Remove the center trim bezel. Refer to Instrument Panel Accessory Bezel Replacement .
Remove the console trim plate. Refer to Console Trim Plate Replacement .
Disconnect the shift control cable. Refer to Shift Control Cable Replacement .
Disconnect the shift control electrical connector.

Shift Control Nut (Qty: 4)

NOTE: Refer to Fastener Notice .

Tighten: Tighten the nuts to 25 N.m (18 lb ft).

Shift Control
