Seat Belt Replacement - Center Rear

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

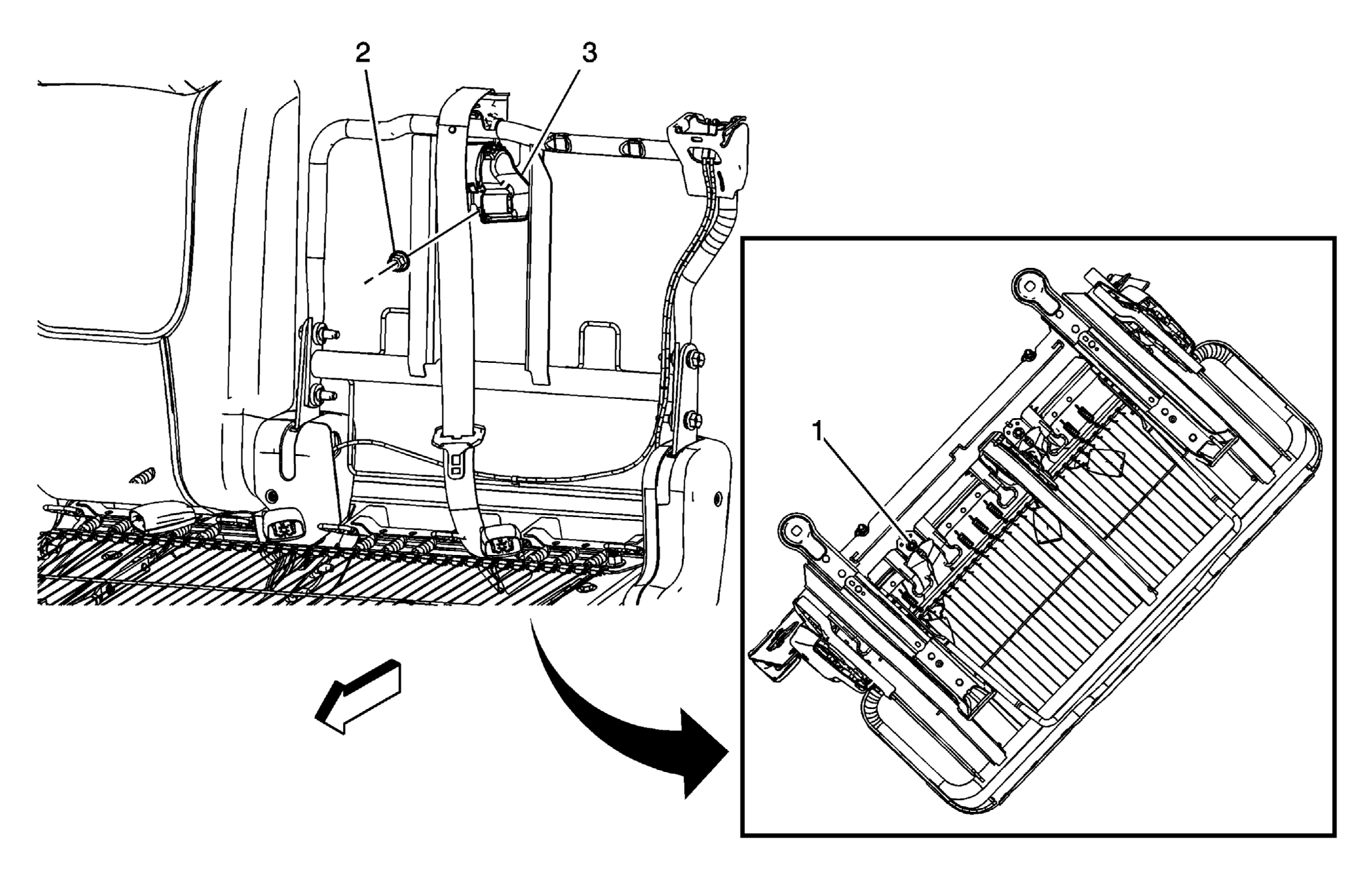

Fig 1: View Of Center Rear Seat Belt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the rear seat cushion cover/pad. Refer to Rear Seat Cushion Cover and Pad Replacement . Remove the sixty percent rear seat back cover/pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1	Center Rear Seat Belt Retractor To Seat Bolt CAUTION: Refer to Fastener Caution . Tip: Apply Permatex® 24200 or equivalent on all seat belt fasteners prior to installation. Tighten: 45 N.m (33 lb ft)
2	Center Rear Seat Belt Retractor To Seat Nut Tip: Apply Permatex® 24200 or equivalent on all seat belt fasteners prior to installation. Tighten: 45 N.m (33 lb ft)
3	Center Rear Seat Belt Retractor Tip: Make sure alignment slots are aligned correctly on reinstallation.
