Rear Seat Recliner Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

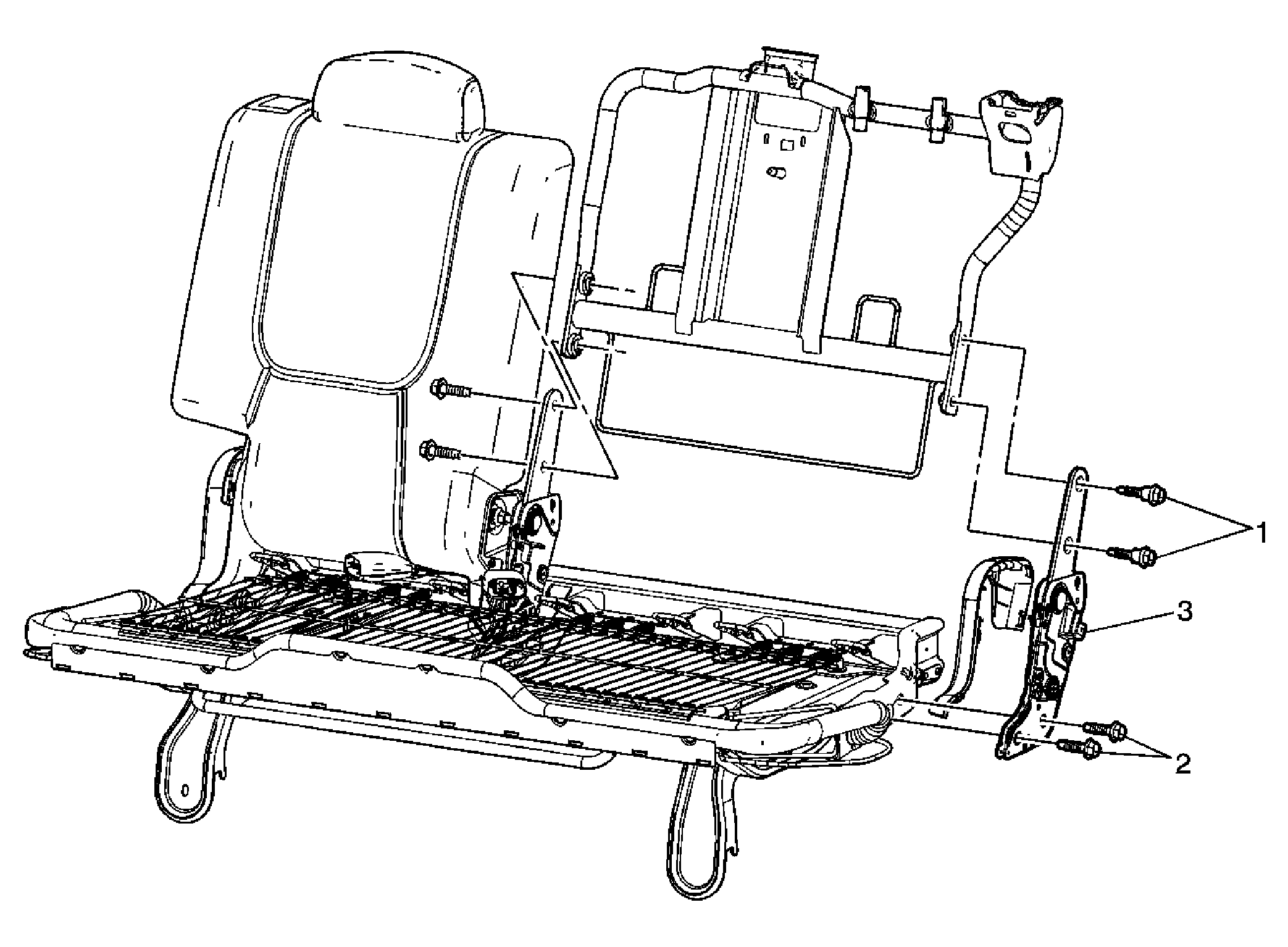

Fig 1: View Of Rear Seat Back Recliner

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Replacement . Remove the recliner finish cover. Remove the seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement . Remove the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1	Rear Seat Back Cushion Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Rear Seat Cushion Frame Bolt (Qty: 2) Tighten: 50 N.m (37 lb ft)
3	Rear Seat Recliner Assembly Tip: Disconnect the seat recliner cable from the recliner mechanism on the seat back.
