Rear Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

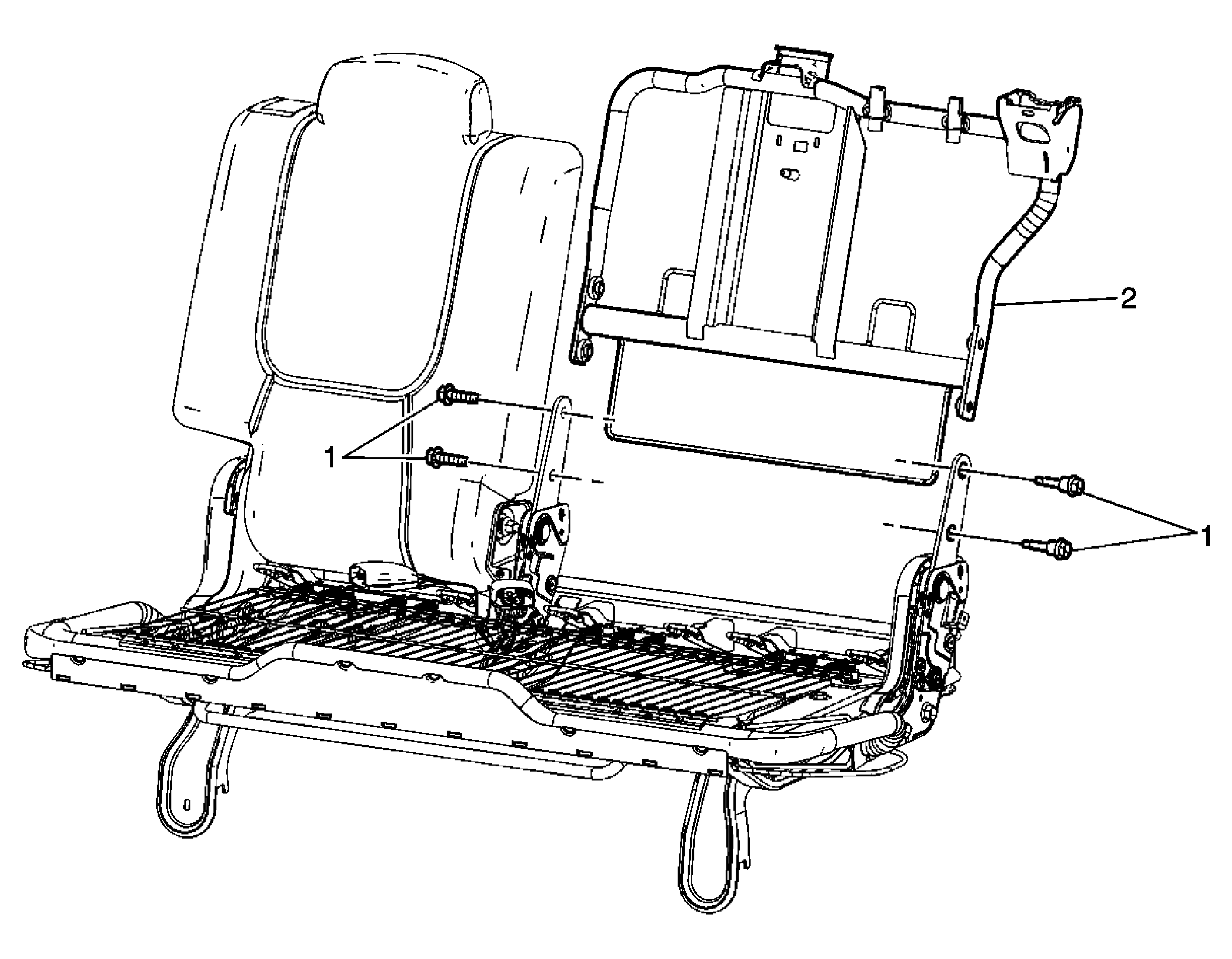

Fig 1: View Of Rear Seat Back Cushion Frame

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Replacement . Remove the recliner finish cover. Remove the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .
1	Rear Seat Back Cushion Frame Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 50 N.m (37 lb ft)
2	Rear Seat Back Cushion Frame Procedure Remove the rear seat center retractor. Refer to Seat Belt Replacement - Center Rear . Disconnect the seat recliner cable from the recliner mechanism on the seat back.

Callout

Component Name

Preliminary Procedure

Remove the rear seat. Refer to Rear Seat Replacement .
Remove the recliner finish cover.
Remove the seat back cover and pad. Refer to Rear Seat Back Cushion Cover and Pad Replacement .

Rear Seat Back Cushion Frame Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 50 N.m (37 lb ft)

Rear Seat Back Cushion Frame

Procedure

Remove the rear seat center retractor. Refer to Seat Belt Replacement - Center Rear .
Disconnect the seat recliner cable from the recliner mechanism on the seat back.
